Symbol LS4278 Product Reference Guide13-16

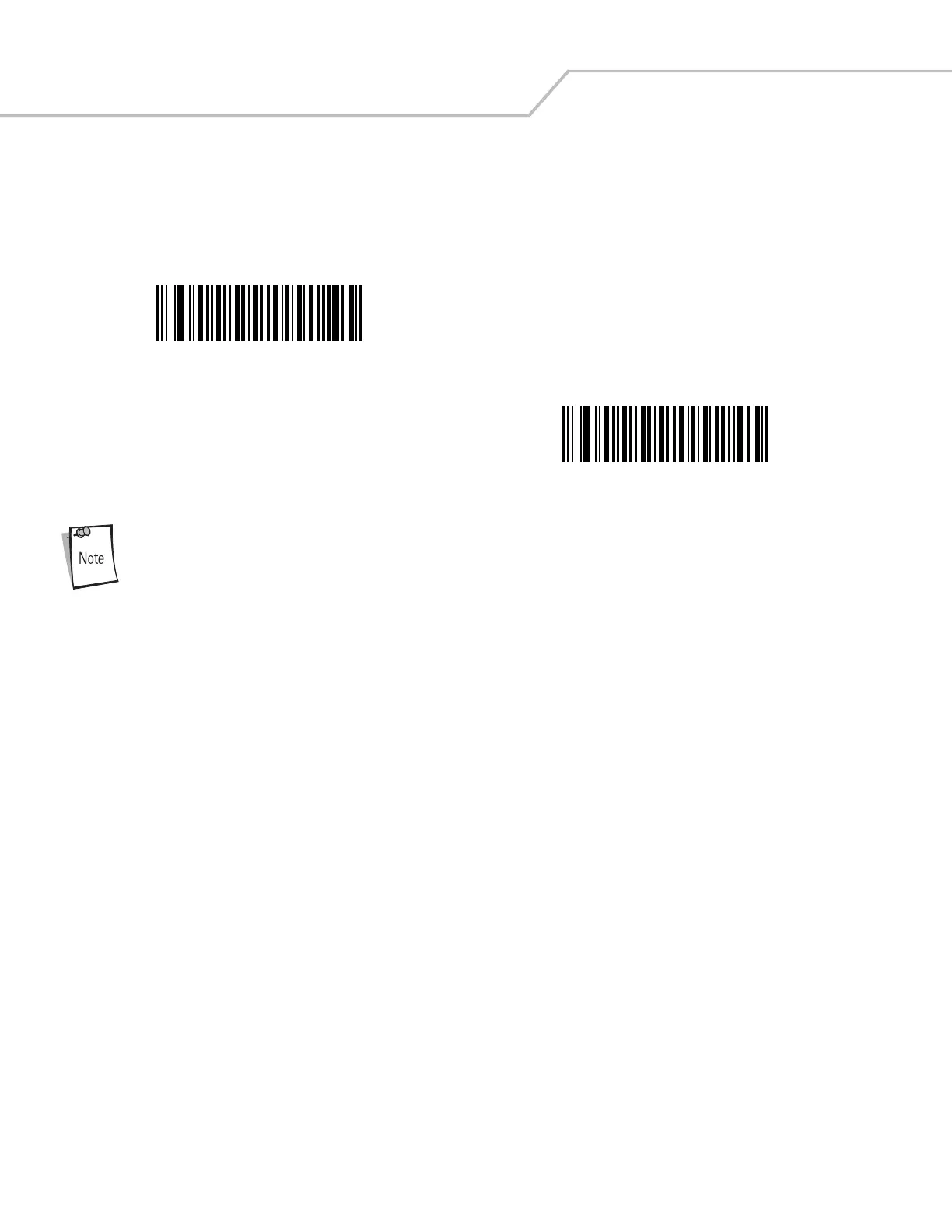

UCC Coupon Extended Code

When enabled, this parameter decodes UPCA bar codes starting with digit ‘5’, EAN-13 bar codes starting with digit ‘99’, and UPCA/

EAN-128 Coupon Codes. UPCA, EAN-13 and EAN-128 must be enabled to scan all types of Coupon Codes.

Use the Decode UPC/EAN Supplemental Redundancy parameter to control autodiscrimination of the EAN128

(right half) of a coupon code.

Enable UCC Coupon Extended Code

*Disable UCC Coupon Extended Code

Default Chapter5
