Advanced Data Formatting 14-13

Code Lengths

Define the number of characters the selected code type must contain. If a code length is not selected, selected code types of any

length are affected.

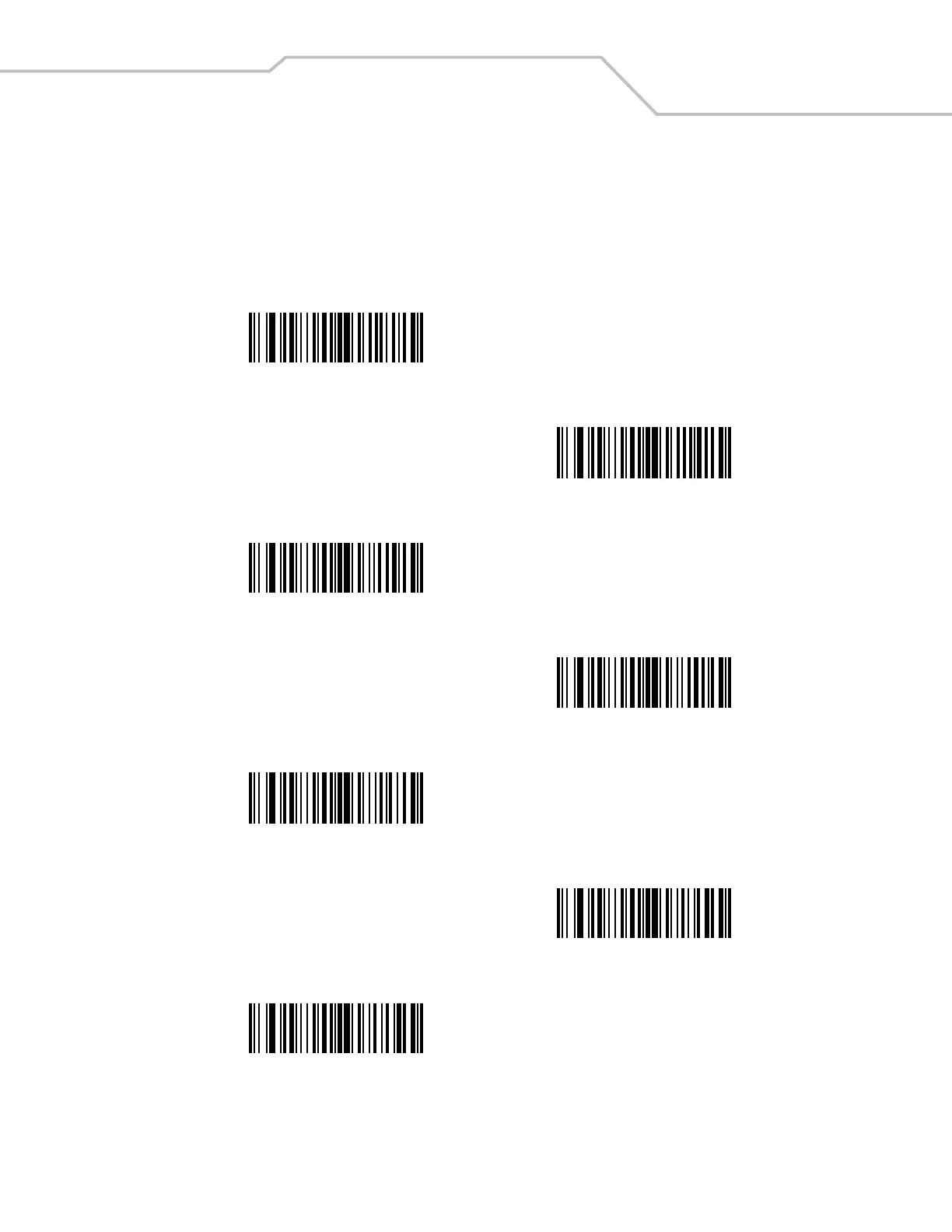

Scan these bar codes to define the number of characters the selected code types must contain. Select one length per rule only.

1 Character

2 Characters

3 Characters

4 Characters

5 Characters

6 Characters

7 Characters

Default Chapter5
- Revision History5
- Table of Contents7
About this Guide15
- Chapter Descriptions17
- Introduction17
- Notational Conventions18
- Related Publications18
- Service Information18
Chapter 1. Getting Started21
- Introduction21
- Unpacking the Scanner and Cradle22
- Parts23
  - Scanner Parts23
  - Cradle Parts24
- Scanner Cradle26
- Replacing the Scanner Battery29
- Charging the Scanner Battery30
  - Charging LED30
- Reconditioning the Scanner Battery30
  - Battery Reconditioning LED Definitions30
- Inserting the Scanner in the Cradle31
  - Horizontal Cradle Mount31
  - Vertical Cradle Mount31
- Radio Communications32
- Configuring the Scanner32
- Accessories32
  - Lanyard32
Chapter 2 . Scanning37
- Introduction37
- Beeper Definitions37
- LED Definitions38
- Scanning in Hand-Held Mode39
  - Aiming40
- Scanning in Hands-Free Mode42
  - Assemble the Stand42
  - Scanning with Intellistand43
- Decode Zone45
Chapter 3 . Maintenance, Troubleshooting & Technical Specifications49
- Introduction49
- Maintenance49
  - Scanner49
  - Cradle49
- Battery Information49
- Troubleshooting49
- Troubleshooting50
- Technical Specifications51
- Technical Specifications53
- Cradle Signal Descriptions56
Chapter 4. Radio Communications59
- Introduction59
  - Scanning Sequence Examples59
  - Errors While Scanning59
- Radio Communications Parameter Defaults60
- Wireless Beeper Definitions61
- Radio Communications Host Types62
- HID Host Parameters64
- Auto-Reconnect Feature70
  - Reconnect Attempt Beep Feedback70
  - Reconnect Attempt Interval71
- Out of Range Indicator72
- Scanner(S) to Cradle Support73
- Bluetooth Technology Profile Support78
- Bluetooth Security79
Chapter 5. User Preferences83
- Introduction83
  - Scanning Sequence Examples83
  - Errors While Scanning83
- User Preferences Parameter Defaults84
- User Preferences85
Chapter 6. Keyboard Wedge Interface101
- Introduction101
- Connecting a Keyboard Wedge Interface102
- Keyboard Wedge Parameter Defaults103
- Keyboard Wedge Host Parameters104
- ASCII Character Set for Keyboard Wedge112
Chapter 7 . RS-232 Interface123
- Introduction123
- Connecting an RS-232 Interface124
- RS-232 Parameter Defaults125
- RS-232 Host Parameters126
- ASCII Character Set for RS-232140
  - ASCII Character Set for RS-232141
Chapter 8. USB Interface147
- Introduction147
- Connecting a USB Interface148
- USB Parameter Defaults149
- USB Host Parameters150
- Optional USB Parameters157
  - Ignore Beep157
  - Ignore Bar Code Configuration157
- ASCII Character Set for USB158
Chapter 9 . IBM Interface169
- Introduction169
- Connecting to an IBM 468X/469X Host170
- IBM Parameter Defaults171
- IBM 468X/469X Host Parameters172
  - Port Address172
  - Convert Unknown to Code 39173
- Optional IBM Parameters174
  - Ignore Beep174
  - Ignore Bar Code Configuration174
Chapter 10. Wand Emulation Interface177
- Introduction177
- Connecting Using Wand Emulation178
- Wand Emulation Parameter Defaults179
- Wand Emulation Host Parameters180
Chapter 11. Scanner Emulation Interface187
- Introduction187
- Connecting Using Scanner Emulation188
- Scanner Emulation Parameter Defaults189
- Scanner Emulation Host190
- Scanner Emulation Host Parameters190
Chapter 12 . 123Scan199
- Introduction199
- Communication with 123Scan199
- 123Scan Requirements199
- 123Scan Parameter199
- Code 128201
Chapter 13 . Symbologies203
- Introduction203
- Symbology Parameter Defaults204
- Upc/Ean207
- Code 128217
- Code 39219
- Code 93227
- Code 11229
- Interleaved 2 of 5 (ITF)232
- Discrete 2 of 5 (DTF)235
- Chinese 2 of 5237
  - Enable/Disable Chinese 2 of 5237
- Codabar (NW - 7)238
- Msi241
- GS1 Databar244
  - Convert GS1 Databar to UPC/EAN245
- Symbology - Specific Security Levels246
  - Redundancy Level246
  - Security Level248
- Symbology - Intercharacter Gap250
Chapter 14. Advanced Data Formatting253
- Introduction253
- Rules: Criteria Linked to Actions253
- Using ADF Bar Codes253
- ADF Bar Code Menu Example254
- Special Commands257
- Criteria260
- Actions270
- Alphanumeric Keyboard327
Appendix A. Standard Default Parameters341
Appendix B. Programming Reference349
- Symbol Code Identifiers349
- AIM Code Identifiers352
Appendix C. Sample Bar Codes352
- Code 39352
  - Upc-A, 100%355
- Upc/Ean357
- GS1 Databar358
  - Interleaved 2 of 5358
  - GS1 Databar-14359
Appendix D. Numeric Bar Codes361
- Numeric Bar Codes363
- Cancel364
Appendix E. Alphanumeric Bar Codes365
- Alphanumeric Keyboard367
- Ascii Character Sets385
Appendix F. ASCII Character Sets397
Glossary397
Index409
Tell Us What You Think415
