ioLogik E1200 Series Initial Setup
2-4

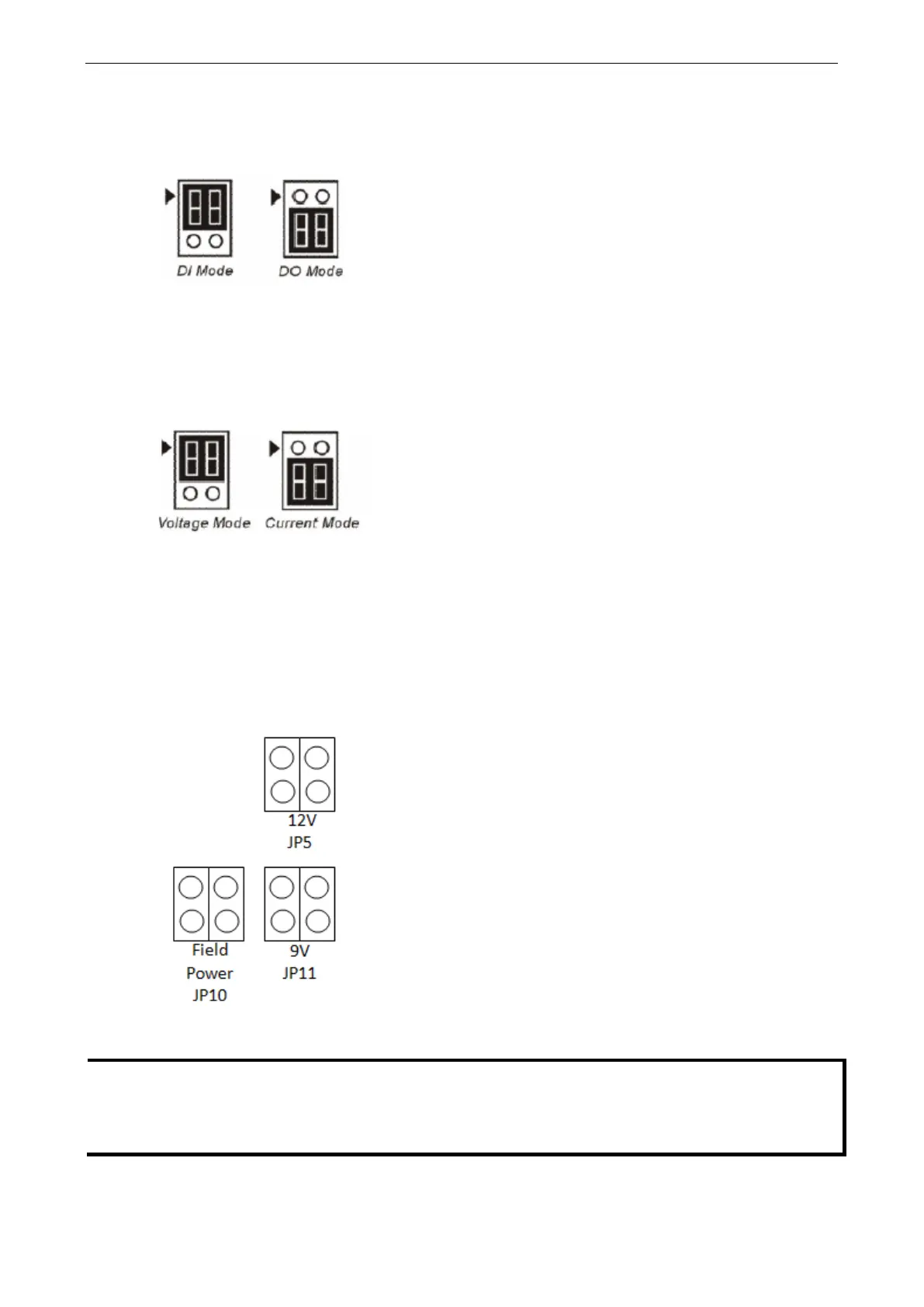

DIO Mode Configuration Settings
DIO mode configuration settings are shown below:
The default setting is DO Mode.
AI Mode Configuration Settings
Analog mode configuration settings are shown below:
The default setting is Voltage Mode.
EXT Power Configuration Settings (ioLogik E1213 Only)
The ioLogik E1213 digital outputs have three possible external (EXT) power configurations. Only one field
power configuration can be selected at a time (JP10 / 12V JP5 / 9V JP11), and the jumper must be inserted
vertically, not horizontally. EXT power configuration settings are shown below:
The default setting is Field Power JP10.
NOTE
The ioLogik E1213 has 4 pure DO channels and 4 hybrid DIO channels. For the 4 pure DO channels, you can use
the jumpers to select the power configuration output
(i.e., field power, 12 V, 9 V). But for the 4 hybrid DIO
channels, you cannot use the jumpers to select the power configuration output. Instead, you can only use the
jumpers to set the DIO channels to either DI mode or DO mode.

Table of Contents

Other manuals for Moxa Technologies ioLogik E1210

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Moxa Technologies ioLogik E1210 and is the answer not in the manual?

Moxa Technologies ioLogik E1210 Specifications

General IconGeneral
TypeNetwork transmitter & receiver
Maximum transfer distance- m
Mean time between failures (MTBF)671345 h
Operating temperature (T-T)-40 - 167 °F
Cabling technology10/100Base-T(X)
Ethernet LAN (RJ-45) ports2
Input current0.11 A
AC input voltage24 V
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 95 %
CertificationFCC Part 15 Subpart B Class A, IEC 61000-4, IEC 61000-6
Product colorSilver
Weight and Dimensions IconWeight and Dimensions
Depth84 mm
Width27.8 mm
Height124 mm
Weight200 g
