ioLogik E1200 Series Using the Web Console
3-14

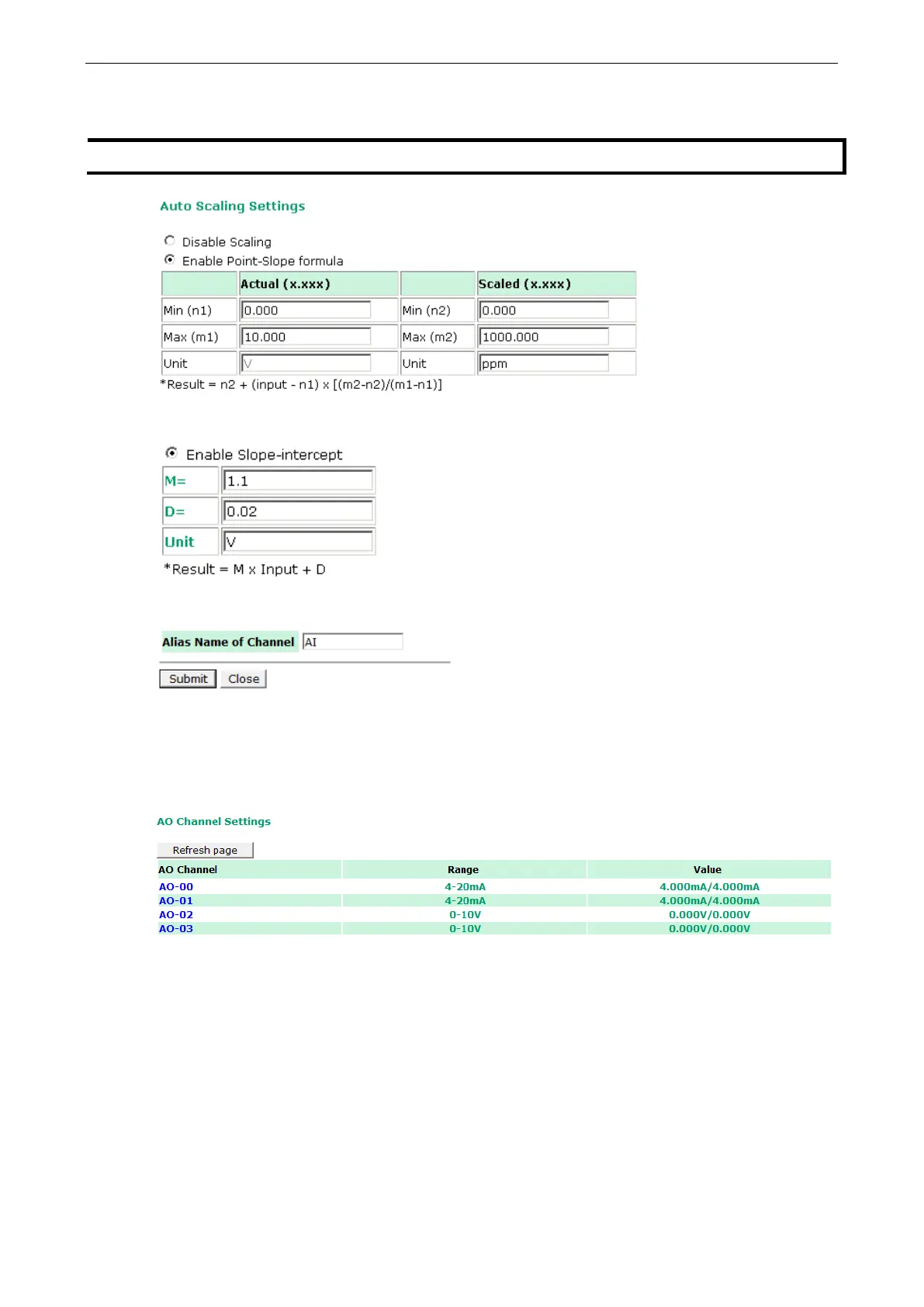

Selecting Enable Point-Slope formula on the Auto Scaling Settings page will linearly convert the actual
current or voltage value into other user-defined units, such as percentage or ppm (parts per million).
NOTE
The scaled
value’s Modbus address differs from the original value.
The slope-intercept function is used to compensate when the measurement requires a slight adjustment.
The AI channel’s Alias Name can also be configured on this page.
AO Channels
The current status of each AO (analog output) channel can be viewed on the AO Channel Settings page:
Click on a specific channel to access the AO channel settings, and then select the Enable AO Channel box. The
Auto Scaling function of the AO value can be defined on the same page.
There are two modes for the AO channels, Voltage Mode (V) and Current Mode (mA).
