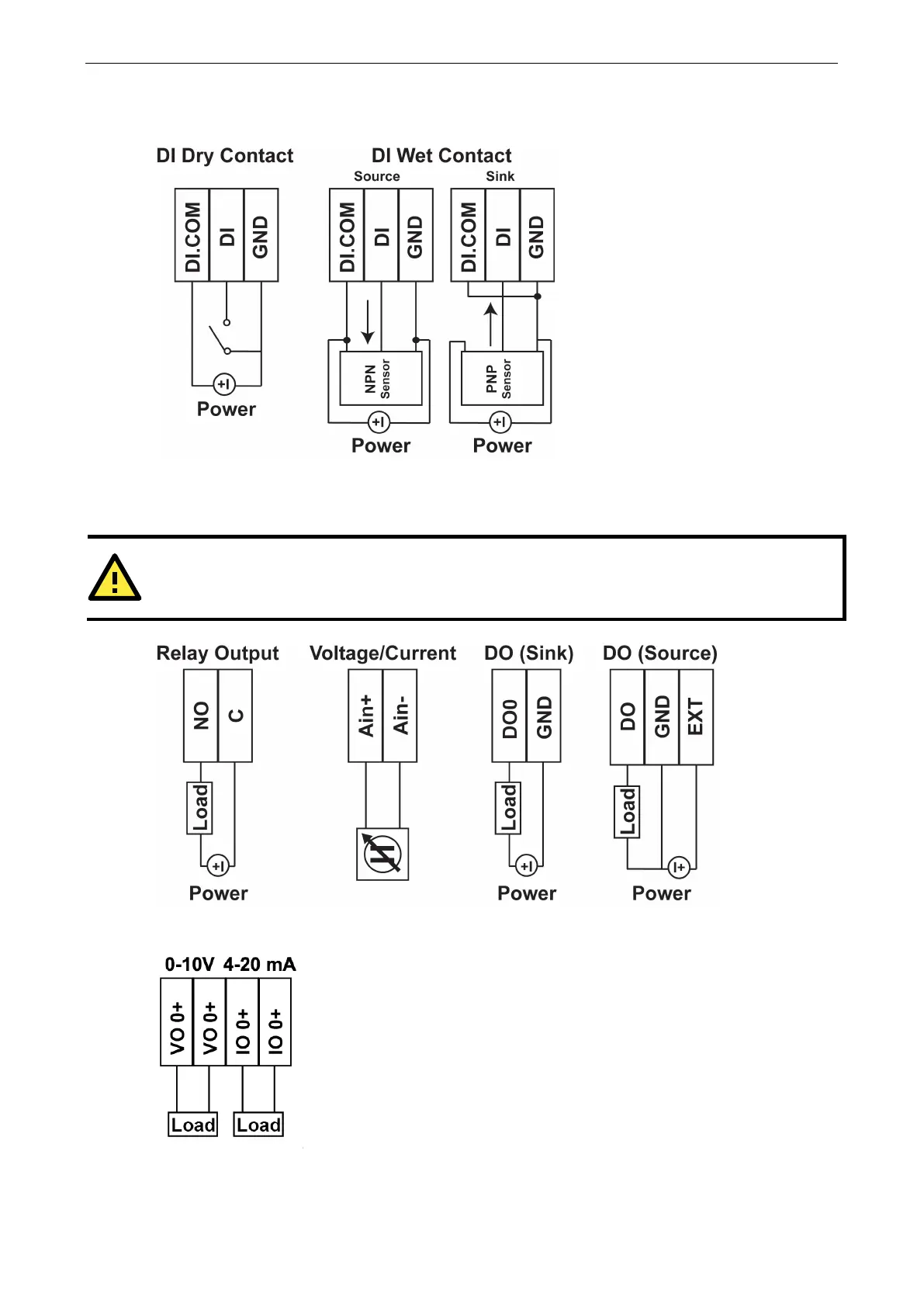

I/O Wiring Diagrams
A Dry Contact is a contact that does not provide voltage.
A Wet Contact is a contact that will provide voltage when closed.
ATTENTION
Remove the screw on the back panel and open the cover to configure the jumpers.
