Moxa Technologies ioLogik E1210 User Manual

ioLogik E1200 Series Using the Web Console
3-15

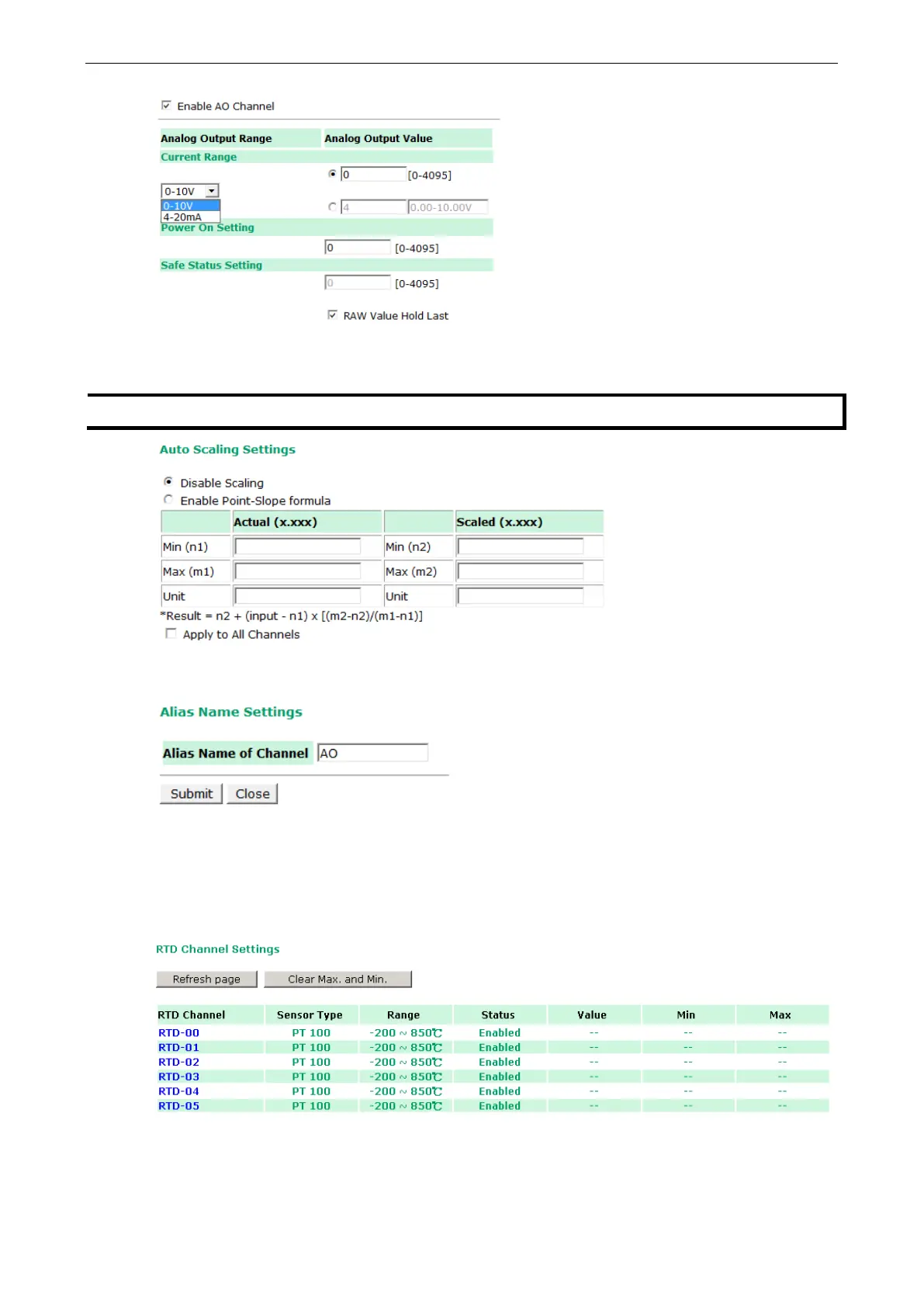

Enabling the Point-Slope Formula function on the Auto Scaling Settings page will linearly convert the
actual current or voltage value into other user-defined units, such as percentage or ppm (parts per million).
NOTE
The scaled value’s
Modbus address differs from the original value.
The AO channel’s Alias Name can also be configured on this page.
RTD Channels
The current status of each RTD (Resistance Temperature Detector) channel can be viewed on the RTD
Channel page.
Click on a specific channel to access the RTD channel settings.
Select the Enable RTD Channel checkbox and then select the sensor type from the dropdown menu that
meets the physical attachment to the ioLogik E1200.

Moxa Technologies ioLogik E1210 Specifications

General

Type	Network transmitter & receiver
Maximum transfer distance	- m
Mean time between failures (MTBF)	671345 h
Operating temperature (T-T)	-40 - 167 °F
Cabling technology	10/100Base-T(X)
Ethernet LAN (RJ-45) ports	2
Input current	0.11 A
AC input voltage	24 V
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95 %
Certification	FCC Part 15 Subpart B Class A, IEC 61000-4, IEC 61000-6
Product color	Silver

Weight and Dimensions

Depth	84 mm
Width	27.8 mm
Height	124 mm
Weight	200 g
