Moxa Technologies ioLogik E1210 User Manual

ioLogik E1200 Series How to Connect the ioLogik E1200 to an Allen-Bradley PLC
6-2
EDS Installation of the ioLogik E1200 Series in
Rockwell Software RSLogix 5000

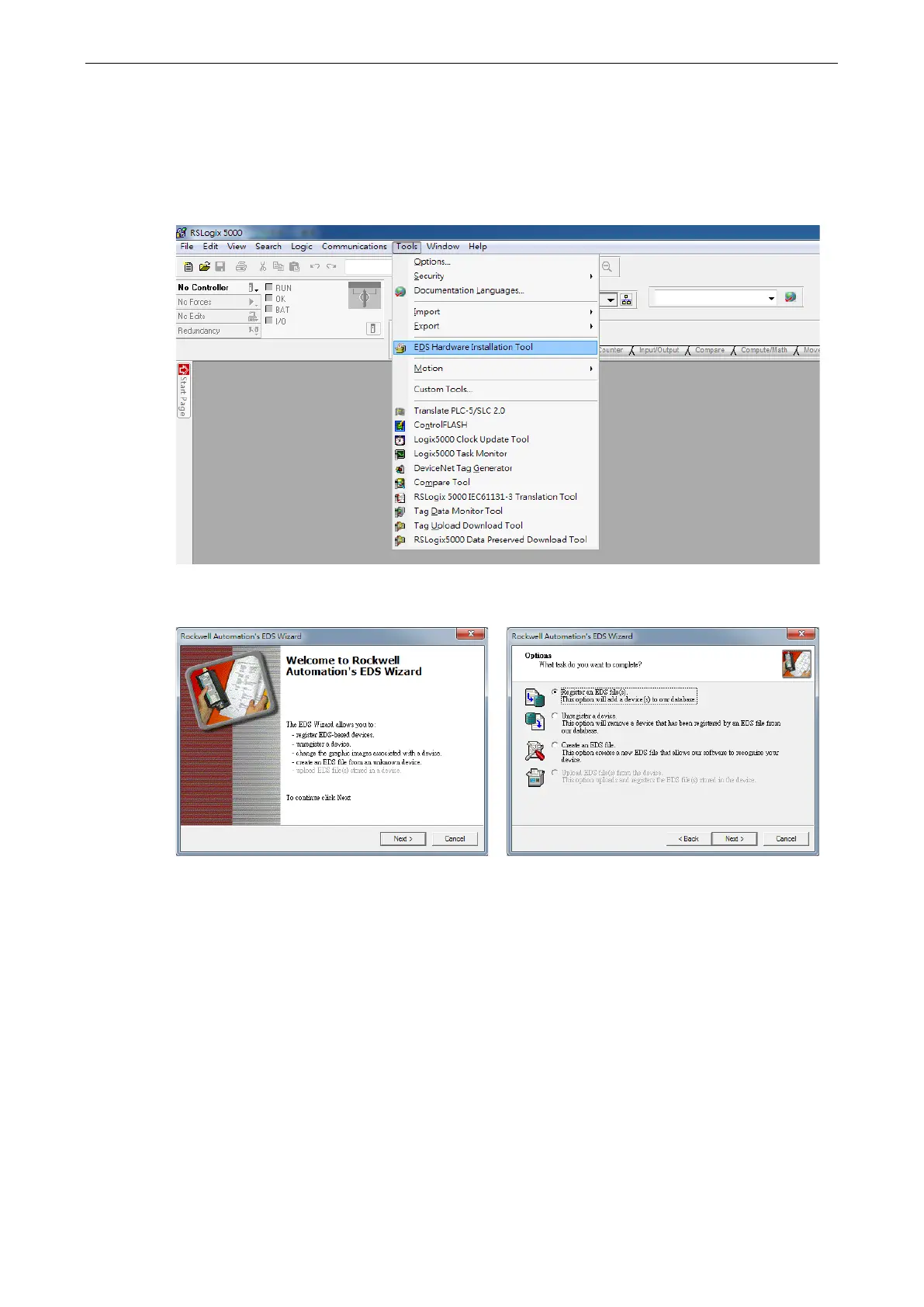

1. Start the RSLogix 5000 and open the EDS Hardware Installation Tool in Tools

EDS Hardware
Installation Tool.
2. The wizard will start and the following window will pop out, click Next and then select Register an EDS
file(s), followed by Next.

Moxa Technologies ioLogik E1210 Specifications

General

Type	Network transmitter & receiver
Maximum transfer distance	- m
Mean time between failures (MTBF)	671345 h
Operating temperature (T-T)	-40 - 167 °F
Cabling technology	10/100Base-T(X)
Ethernet LAN (RJ-45) ports	2
Input current	0.11 A
AC input voltage	24 V
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95 %
Certification	FCC Part 15 Subpart B Class A, IEC 61000-4, IEC 61000-6
Product color	Silver

Weight and Dimensions

Depth	84 mm
Width	27.8 mm
Height	124 mm
Weight	200 g
