Moxa Technologies ioLogik E1210 User Manual

ioLogik E1200 Series Using the Web Console
3-27

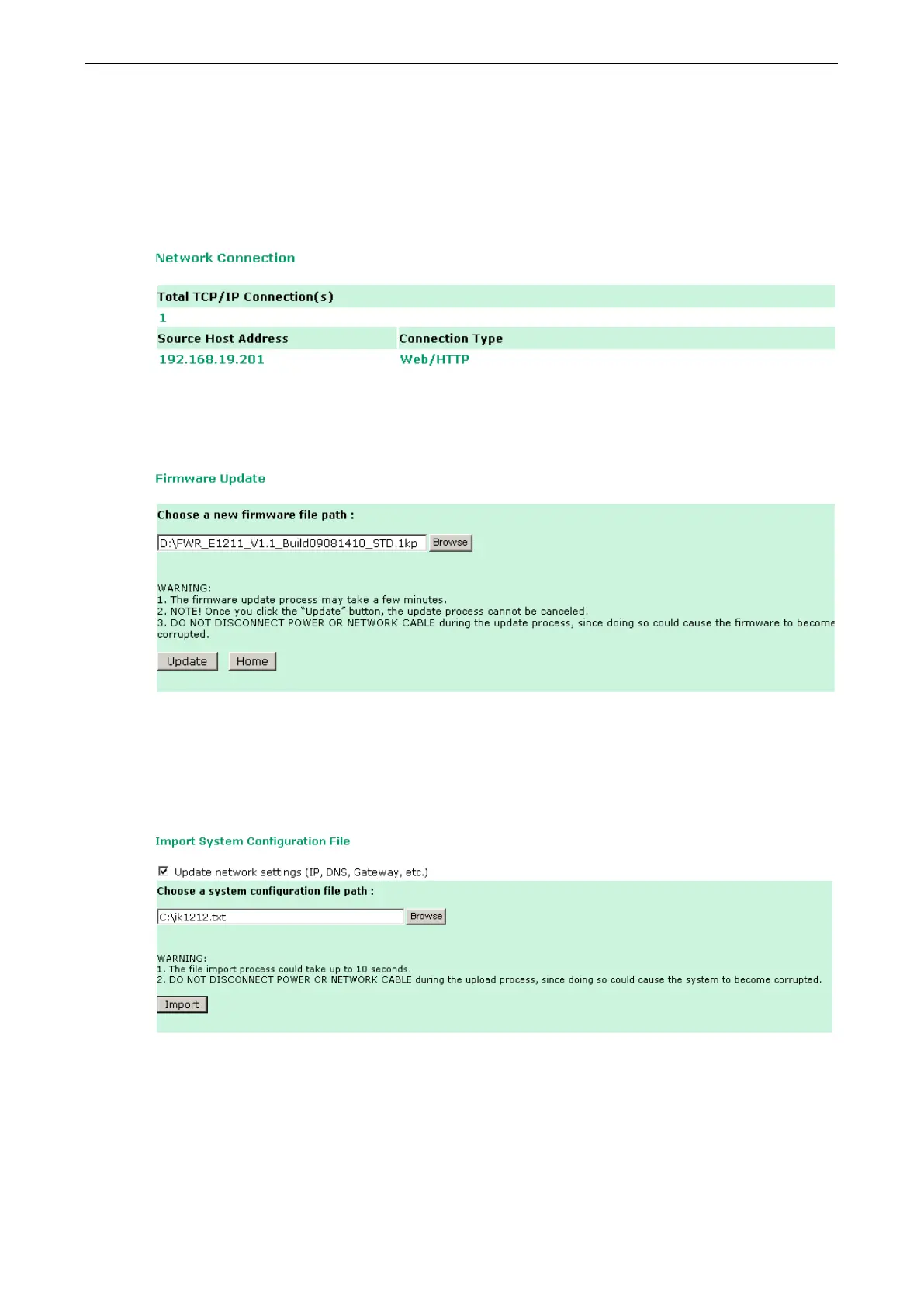

System Management
Network Connection
TCP connections from other hosts appear on the Network Connection page. This information can assist you with
managing your devices.
Firmware Update
Load new or updated firmware onto the ioLogik from the Firmware Update page.
Import System Configuration Settings
Import a configuration into the ioLogik server from the Import System Config page. This function can be used
to duplicate settings between ioLogik servers. You will be prompted for the location of the configuration file (i.e.,
“ik1212.txt”).

Moxa Technologies ioLogik E1210 Specifications

General

Type	Network transmitter & receiver
Maximum transfer distance	- m
Mean time between failures (MTBF)	671345 h
Operating temperature (T-T)	-40 - 167 °F
Cabling technology	10/100Base-T(X)
Ethernet LAN (RJ-45) ports	2
Input current	0.11 A
AC input voltage	24 V
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95 %
Certification	FCC Part 15 Subpart B Class A, IEC 61000-4, IEC 61000-6
Product color	Silver

Weight and Dimensions

Depth	84 mm
Width	27.8 mm
Height	124 mm
Weight	200 g
