Moxa Technologies ioLogik E1210 User Manual

ioLogik E1200 Series Using ioSearch™
4-6

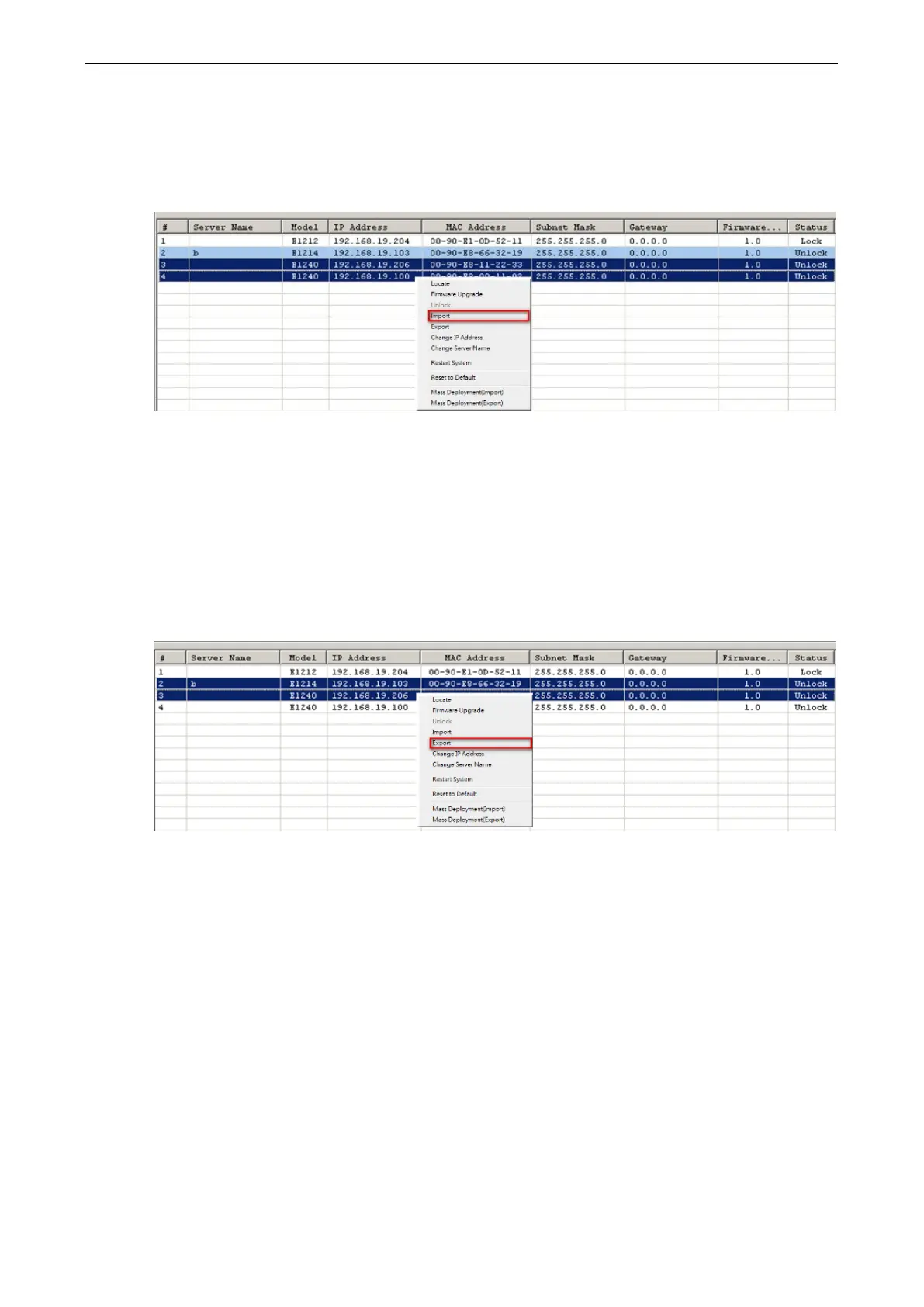

Import
Select this command to reload a configuration that was exported to a text file.
Importing one configuration file to multiple ioLogik E1200 units (same model) is allowed. To do this, press the
“Shift” key, select “ioLogik”, and then right click.
Export
The export function is used to export the current configuration file of an ioLogik E1200. The export file format
will be ik12xx.txt where “xx” represents the model type of the ioLogik E1200.
Exporting multiple files for different models of ioLogik E1200 is allowed. The file format is ik12xx_MAC
Address.txt, where the xx represents the model types of the ioLogik E1200.
e.g., ik1214_00-90-E8-66-32-19.txt
To export multiple configuration files, select the ioLogik and right click to process this function.

Moxa Technologies ioLogik E1210 Specifications

General

Type	Network transmitter & receiver
Maximum transfer distance	- m
Mean time between failures (MTBF)	671345 h
Operating temperature (T-T)	-40 - 167 °F
Cabling technology	10/100Base-T(X)
Ethernet LAN (RJ-45) ports	2
Input current	0.11 A
AC input voltage	24 V
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95 %
Certification	FCC Part 15 Subpart B Class A, IEC 61000-4, IEC 61000-6
Product color	Silver

Weight and Dimensions

Depth	84 mm
Width	27.8 mm
Height	124 mm
Weight	200 g
