Checked Enables the port for a defined number of days Disable
Unchecked Disables the port for a defined number of days
Start/End Time
Setting Description Factory Default
Time for working period
Allows users to enter the start and end time for the PD’s
working period
0-24

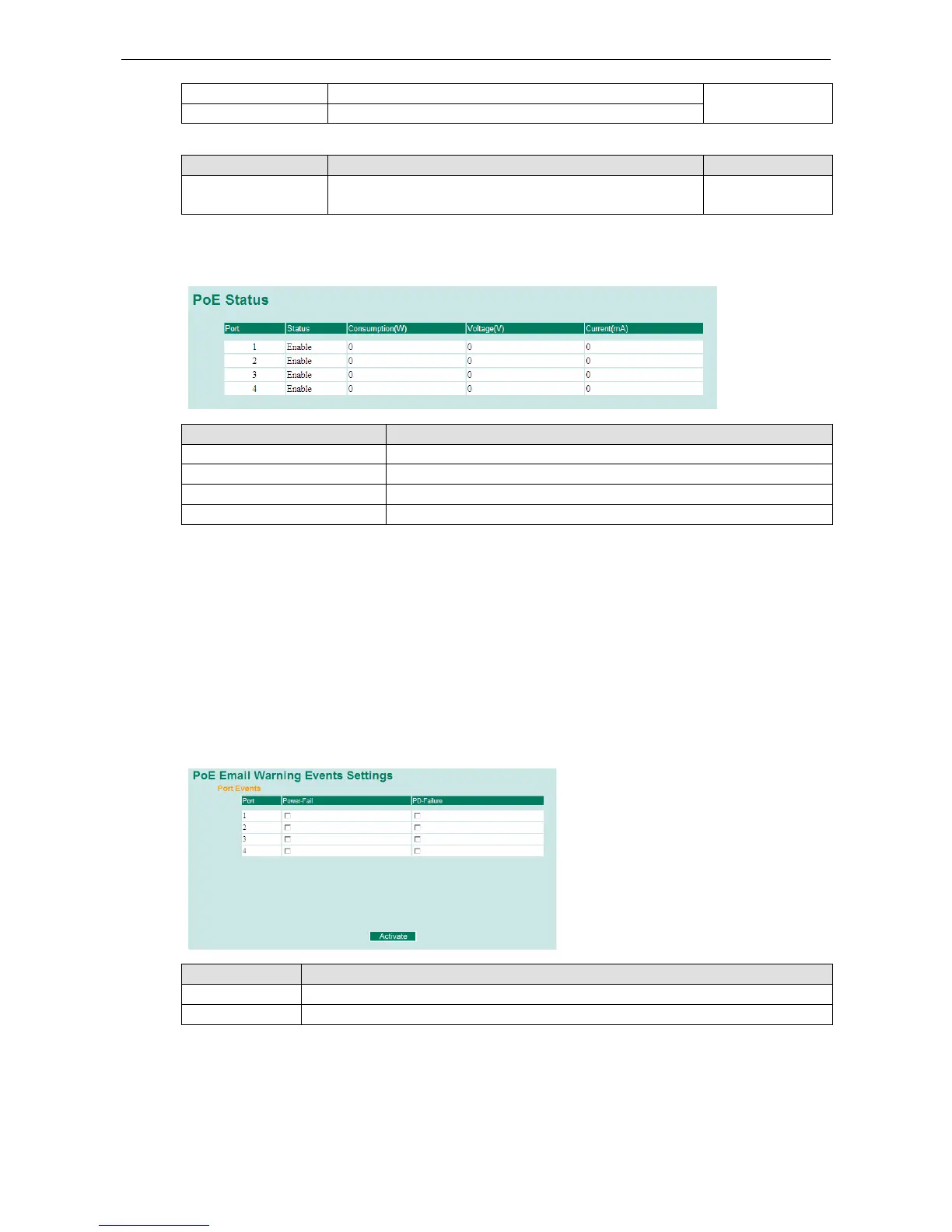

PoE Status
Item Description
Enable/Disable Indicates the PoE port status
Consumption (W) Indicates the actual Power consumed value for PoE port
Voltage (V) Indicates the actual Voltage consumed value for PoE port
Current (mA) Indicates the actual Current consumed value for PoE port
PoE Email Warning Events Settings
Since industrial Ethernet devices are often located at the endpoints of a system, these devices do not always
know what is happening elsewhere on the network. This means that a PoE port connected to a PD must provide
system administrators with real-time alarm messages. Even when control engineers are out of the control room
for an extended period of time, they can still be informed of the status of the PD almost instantaneously when
exceptions occur. The PoE Ethernet switch supports different methods for warning engineers automatically,
such as email and relay output. It also supports two digital inputs to integrate sensors into your system to
automate alarms using email and relay output.
Email Warning Event Types can be divided into two basic groups: Power-Fail and PD-Failure.
Port Events Warming e-mail is sent when...
Power-Fail When actual PD power consumption exceeds related PD power limit setting.
PD-Failure When the switch cannot receive a PD response after the defined period.
PoE Relay Warning Events Settings
Relay Warning Event Types can be divided into two basic groups: Power-Fail and PD-Failure.
