Enable Enables power transmission to PD Enable
Disable Disables power transmission to PD
PoE power threshold
Setting Description Factory Default
30 to 240 Set the threshold of total PoE power output 240
PoE threshold cutoff
Setting Description Factory Default
Enable Cutoff the PD’s power while its over the threshold Disable
Disable No cutoff while the PD’s power over the threshold
Sum of allocated power
Setting Description
Allocated power This item shows the total allocated power of PDs
Sum of measured power
Setting Description
Measured power This item shows the total measured power of PDs

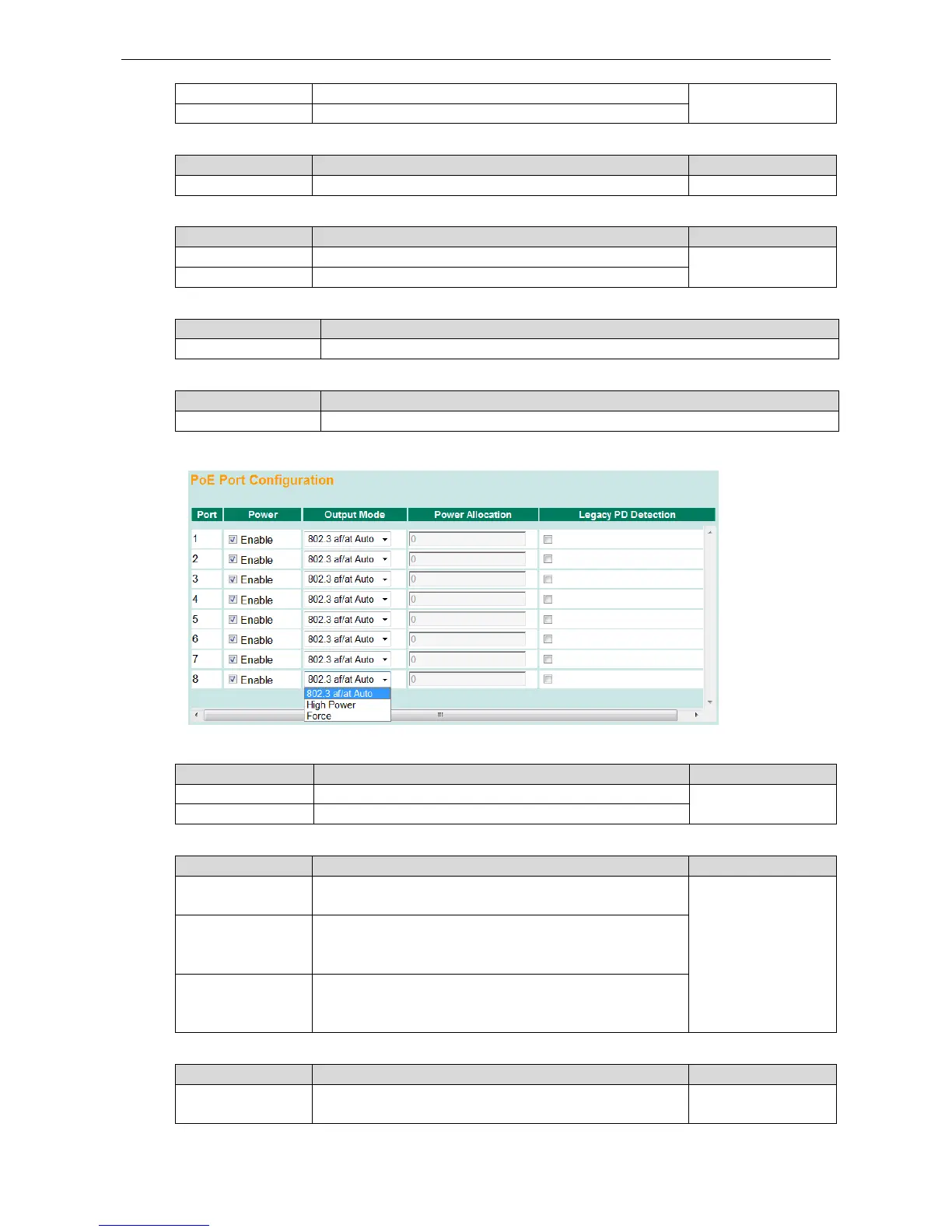

PoE Port Configuration
Power
Setting Description Factory Default
Checked Allows data and power transmission through the port Enable
Unchecked Immediately shuts off port access
Output Mode
Setting Description Factory Default
802.3 af/at Auto Power transmission on IEEE 802.3 af/at protocols.
The acceptable PD resistance range is 17kΩ to 29kΩ.
802.3 af/at Auto
High Power High Power mode provides users a higher power output to PD.
The acceptable PD resistance range is 17kΩ to 29kΩ, and the
power allocation of the port is automatically set to 36 Watts.
Force Force mode provides users to output power to a non 802.3
af/at PD. The acceptable PD resistance range is over 2.4kΩ,
and the range of power allocation is 0 to 36 Watts.
Power Allocation
To Next Page
