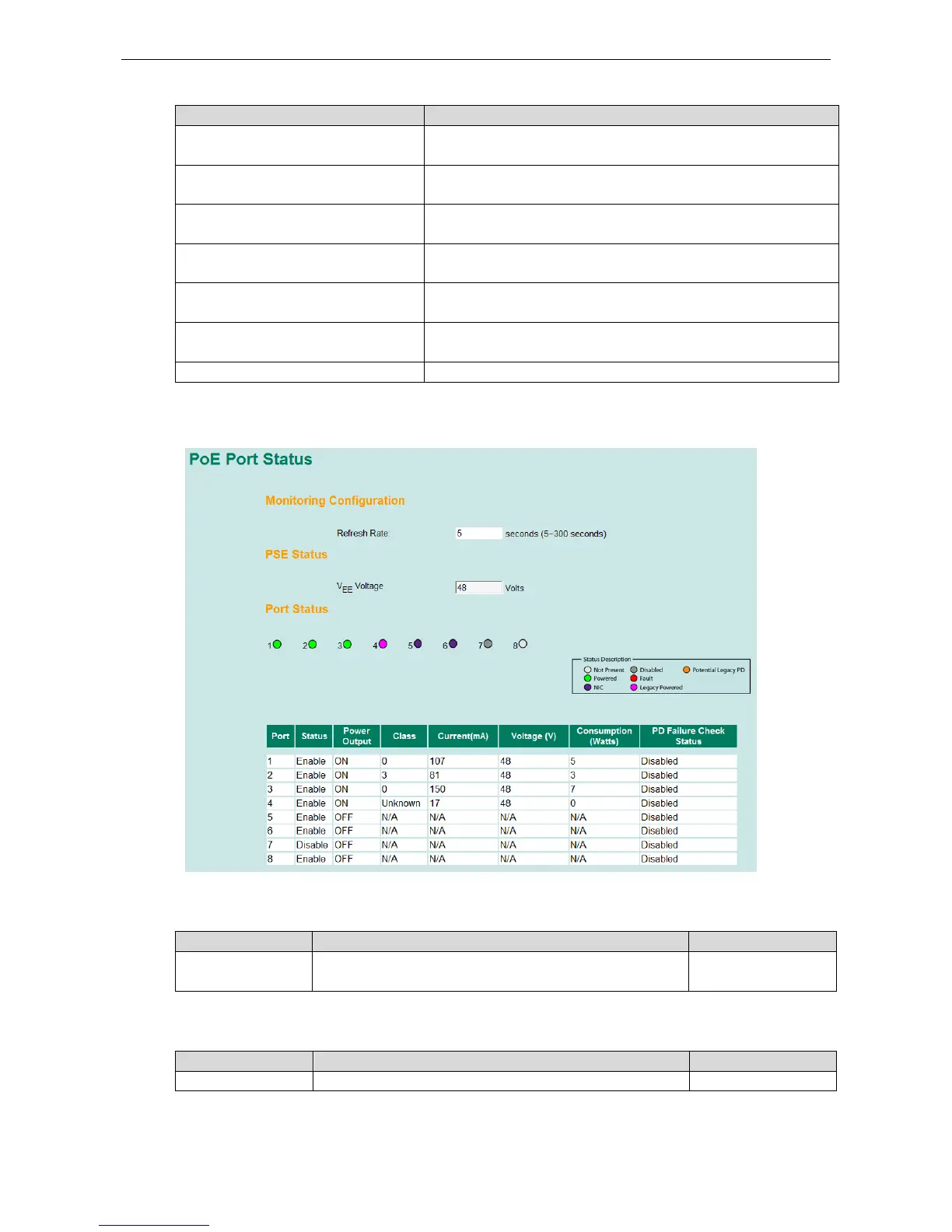

Moxa Managed Ethernet Switch/Extender Featured Functions
3-34
PoE Port Configuration Suggestion
Item Description
Disable PoE power output When detecting an NIC or unknown PD, the system suggests
disabling PoE power output.
Enable Legacy PD Detection When detecting a higher capacitance of PD, the system suggests
enabling Legacy PD Detection.
Select Force Mode When detecting higher/lower resistance or higher capacitance, the
system suggests selecting Force Mode.
Select IEEE 802.3 af/at auto mode When detecting an IEEE 802.3 af/at PD, the system suggests
selecting 802.3 af/at Auto mode.
Select high power output When detecting an unknown classification, the system suggests
selecting High Power output.
Raise external power supply voltage >
46VDC
When detecting the external supply voltage is below 46 V, the
system suggests raising the voltage.
Enable PoE function for detection The system suggests enabling the PoE function.
PoE Port Status
Monitoring Configuration
Refresh Rate
Setting Description Factory Default
5 to 300 The period of time which the system refreshes the PoE Port
Status
5
PSE Status
V
EE
Voltage
Setting Description Factory Default
Read-only Display the V
EE
supply voltage of PSE None
