PoE Port Status
Status Description
Item Description
Not Present No connection to the port. No PoE power outputs.
Powered PoE power outputs from the PSE
NIC System detects an NIC connected to the port. No PoE power outputs.
Disabled The PoE function of the port is disabled. No PoE power outputs.
Fault In Force mode, system detects a out-of-range PD
Legacy Powered In Force mode, system detects a Legacy PD
Potential Legacy PD In 802.3 af/at or High Power mode, system detects a potential legacy PD. No
PoE power outputs.
Port Description
Item Description
Status Indicates if the PoE function is enable
Power Output Indicates the power output of each PoE port
Class Indicates the classification of each PoE port
Current (mA) Indicates the actual Current consumed value of each PoE port
Voltage (V) Indicates the actual Voltage consumed value of each PoE port
Consumption (Watts) Indicates the actual Power consumed value of each PoE port
PD Failure Check Status Indicates the PD Failure Check status of each PoE port.
Alive: The PD is pinged by system continuously
Not Alive: The PD is not pinged by system
Disable: The PD Failure Check is not activated

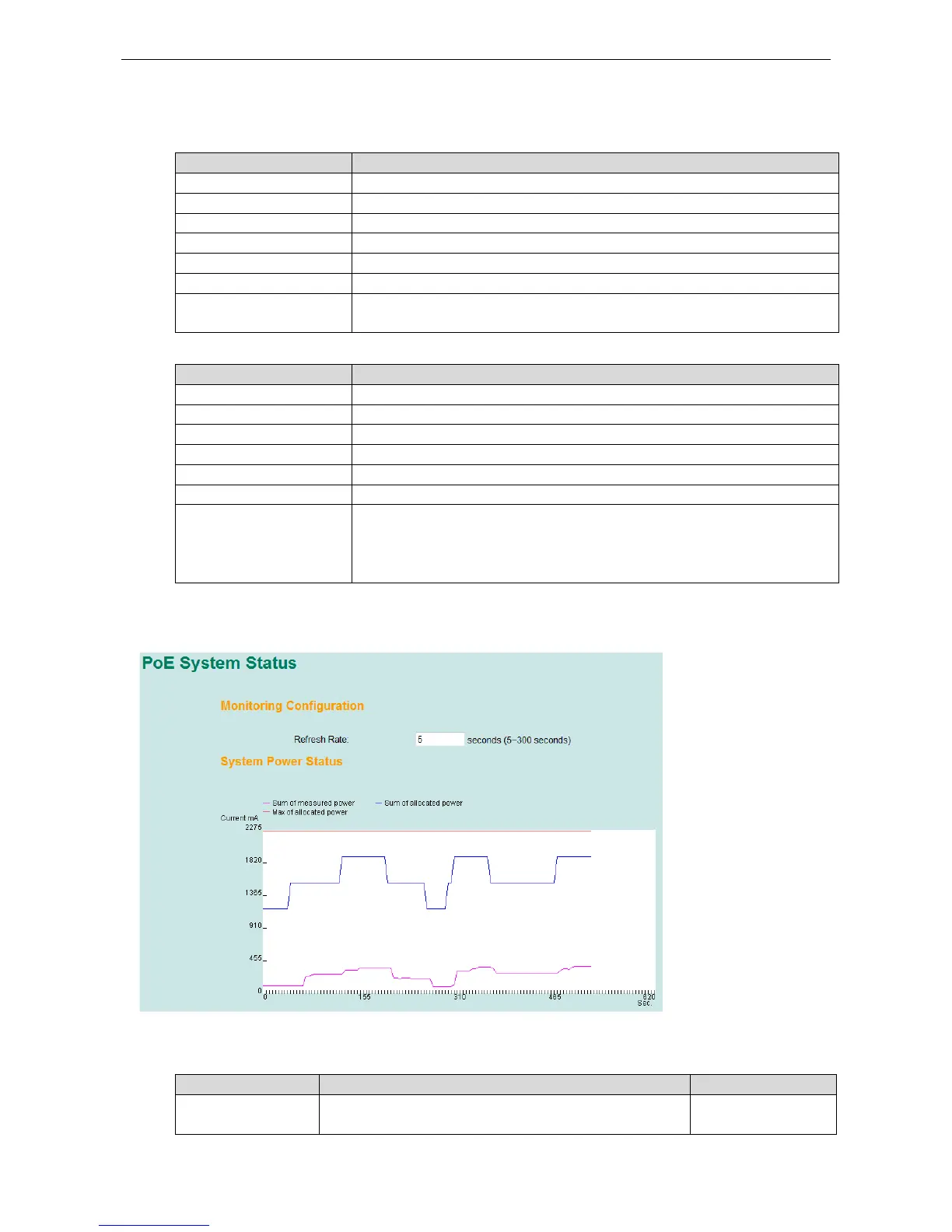

PoE System Status
Monitoring Configuration
Refresh Rate
Setting Description Factory Default
5 to 300 The period of time which the system refreshes the PoE
System Status
5
