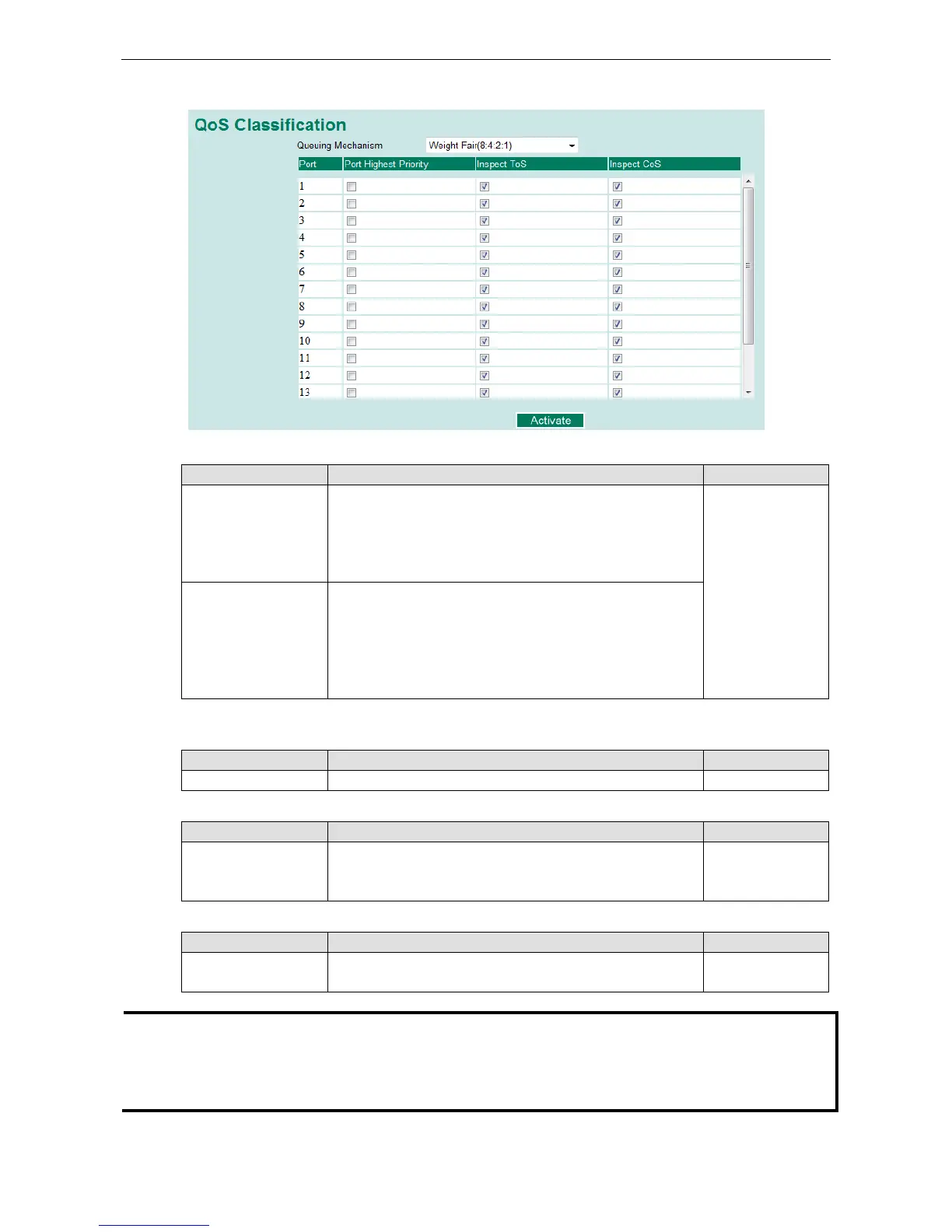

Moxa Managed Ethernet Switch/Extender Featured Functions
Type 2
Queuing Mechanism
Setting Description Factory Default
Weight Fair The Moxa switch has 4 priority queues. In the weight fair
scheme, an 8, 4, 2, 1 weighting is applied to the four priorities.
This approach prevents the lower priority frames from being
starved of opportunity for transmission with only a slight delay
to the higher priority frames.
Weight Fair
Strict In the Strict-priority scheme, all top-priority frames egress a
port until that priority’s queue is empty, and then the next
lower priority queue’s frames egress. This approach can cause
the lower priorities to be starved of opportunity for transmitting
any frames but ensures that all high priority fra
the switch as soon as possible.
Inspect Port Highest Priority
Setting Description Factory Default
Enable/Disable Enables or disables the priority inspection of each port Disabled
Inspect TOS
Setting Description Factory Default
Enable/Disable Enables or disables the Moxa switch for inspecting Type of
Service (TOS) bits in the IPV4 frame to determine the priority of
each frame.
Enabled
Inspect COS
Setting Description Factory Default
Enable/Disable Enables or disables the Moxa
switch for inspecting 802.1p COS
tags in the MAC frame to determine the priority of each frame.
The priority of an ingress frame is determined in the following order:
1. Port Highest Priority
2. Inspect TOS
3. Inspect CoS
