6.4.1. Low Pressure Hose Routing
For best results be sure 1 1/4" low pressure hoses are lying flat on the floor. This will ensure coolant
from unit will not drain back to machine tool coolant tank. Hoses not lying on the floor may lead to air
becoming entrained in coolant and can also lead to supply pump losing prime.

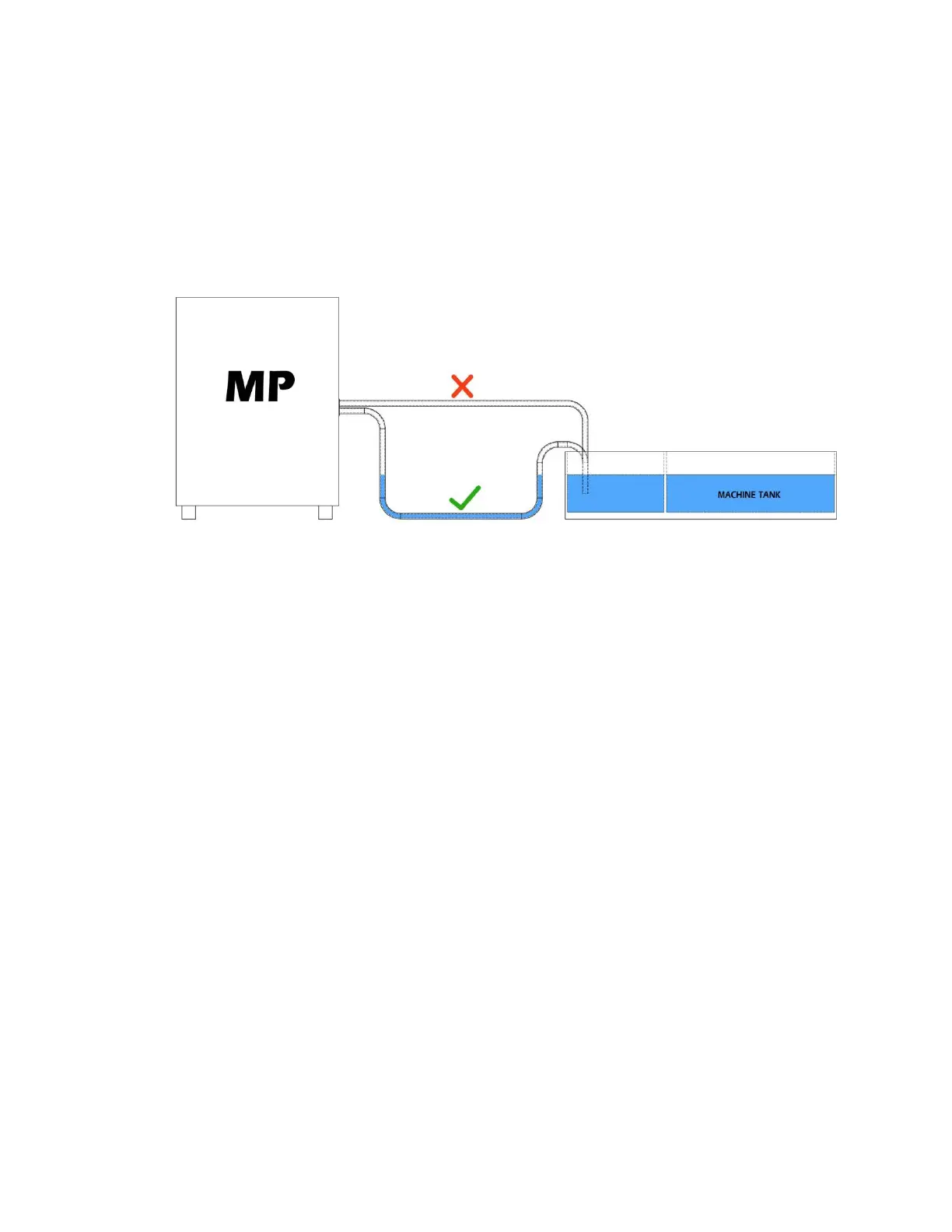

The image below illustrates proper hose routing.
