9.6.6. Settings (RC)

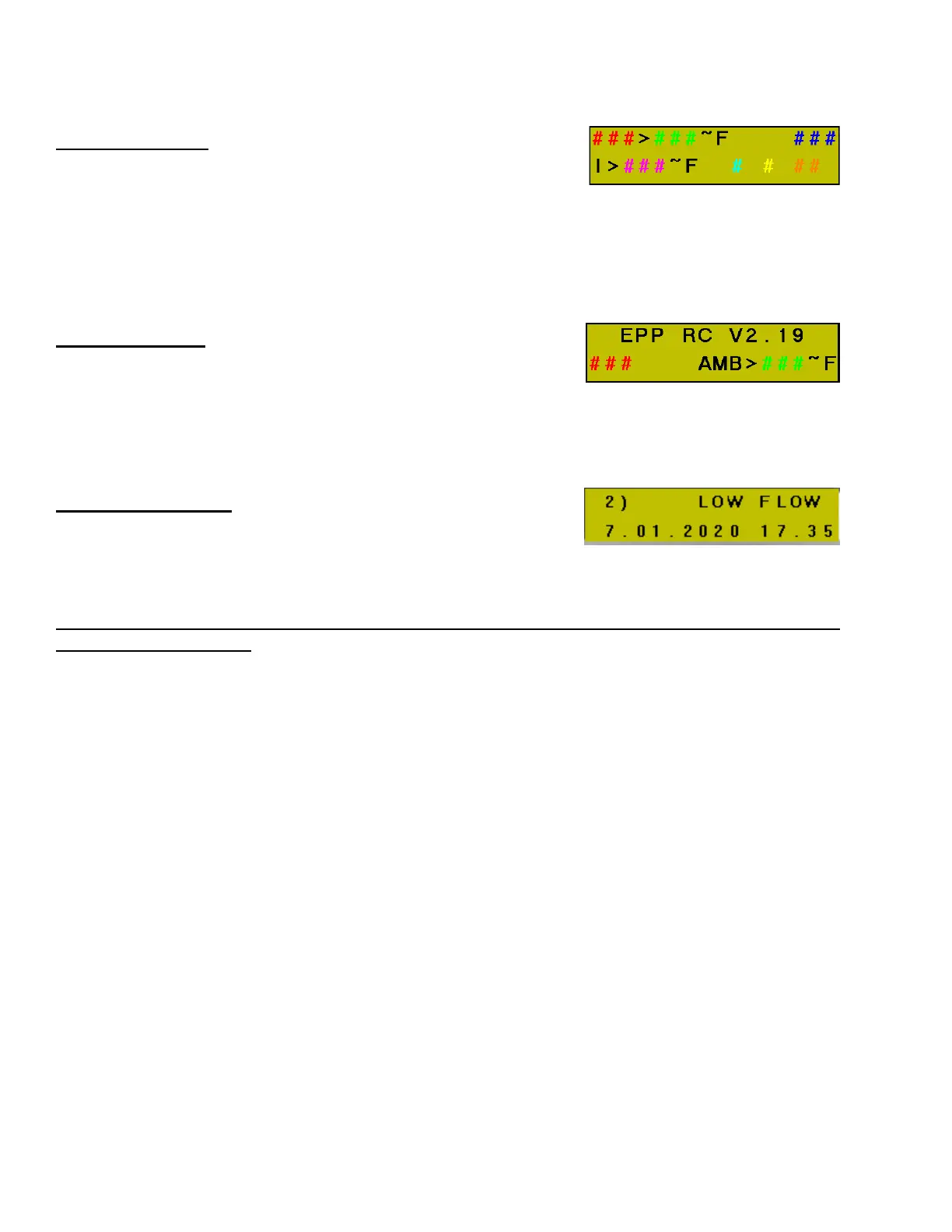

MAIN SCREEN
### - Control Mode (Setpoint/Ambient Tracking)
### ~ F- Ambient/Setpoint Temperature
### ~ F- On/Off
### ~ F- Inlet Temperature
# - Compressor Status
# - Circulation Pump Status
## - Operating Mode [HI, LO, HT, SL]
INFO SCREEN
ⓘ (Information)
Button on PLC control pad will
display current PLC version.
### - Run Signal Source [SIG, SHD, OVR]
### ~ F- Ambient Temperature
ALARM SCREEN
▲▼
(Up, Down)
Button on PLC control pad will
Display the last 10 alarms along with the
date and time of occurrence.
Press [1] & [2] keys simultaneously to access password screen. Use this function to access the
following menu options.
