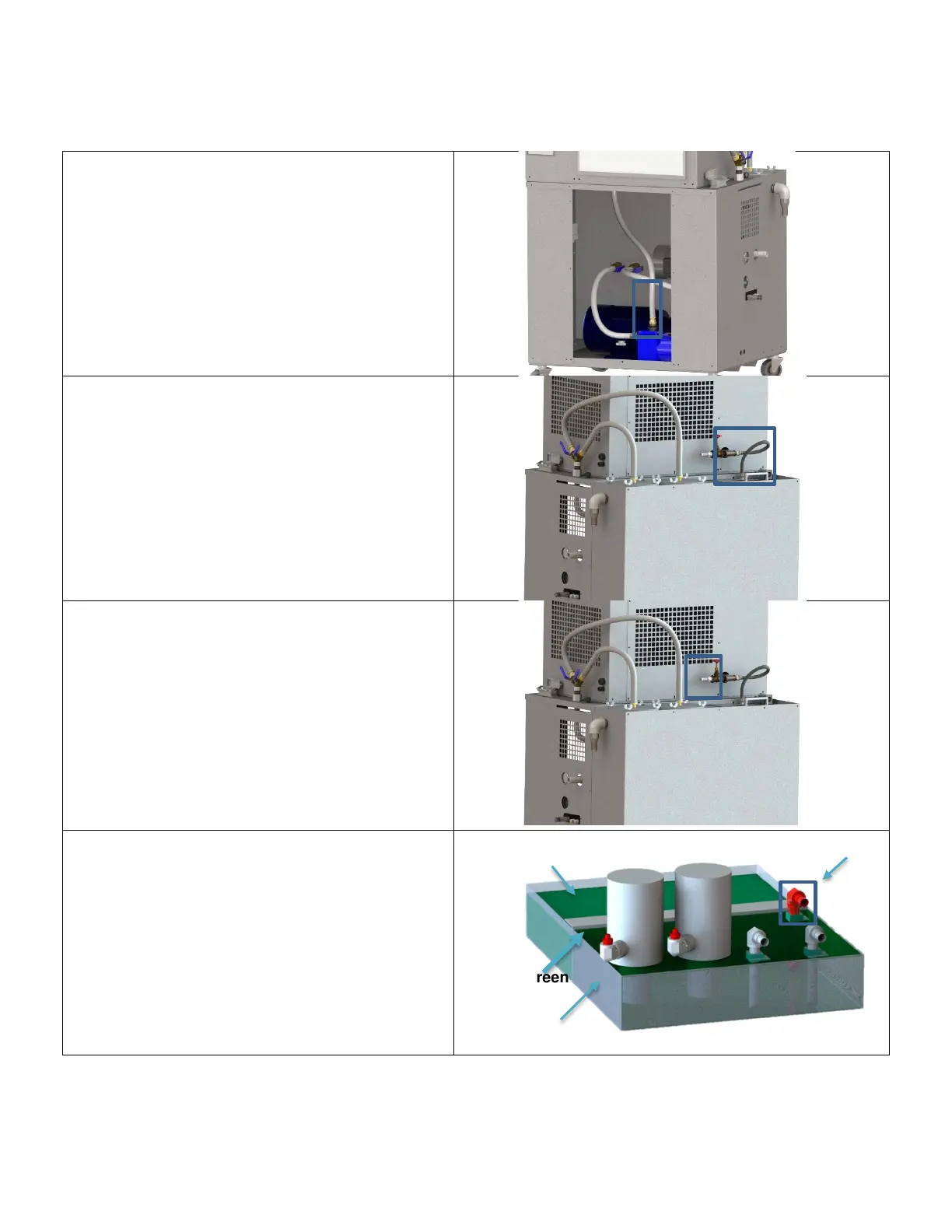

9.6.3. Plumbing Instructions (RC)
Once the RC chiller unit has been mounted and securely fastened, the following steps will need to be
taken to ensure the RC unit functions correctly:
 Connect 1” RC unit inlet hose to
circulation pump located in R Series;
 Connect 1/2" hose from RC unit return
to R Series tank;
 Connect supplied 3/4” polywire hose
to RC unit return hose barb;
o Open gate valve all the way.
 Install supplied 1” dip tube in clean
side of machine tool tank;
o Mount dip tube with supplied
mounting bracket.
o Install dip tube away from
pumps and R Series dip tubes.
This will allow the ‘chilled’ fluid
to better circulate in machine
tool tank.
RC Outlet
Dirty Side
Screen
Clean Side
