7.4.4. RA11 Series PLC Settings

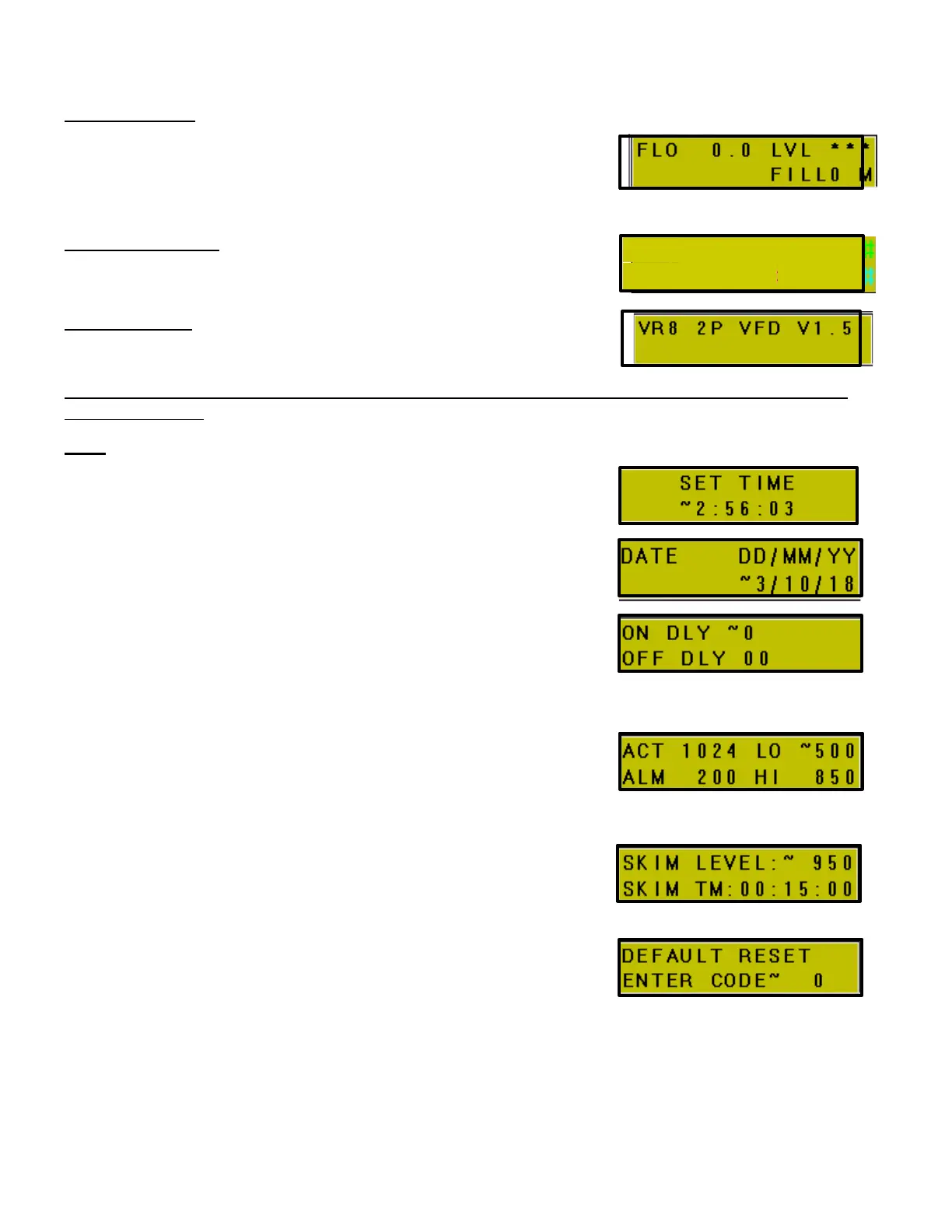

MAIN SCREEN
FLO – Current GPM, 3, 8, 11
LVL – Current tank level
FILL – Indicates supply pump fill.
M – Displayed when pump is in manual mode
ALARM HISTORY
Using the down arrow (▼), from PLC main screen control pad,
will display 10 most recent alarms.
INFO SCREEN
ⓘ key on PLC will display current PLC version.
Press [1] & [2] keys simultaneously to access password screen. Use this function to access the
following menus.
0515
[  ]
SET TIME - 24hr Clock Format
DATE - DD/MM/YY
ON/OFF DELAY - High pressure delay on Start/Stop. Set in 01
second increments.
FILL SETTINGS
ACT – Actual tank level.
LO – Level when supply pump
begins to fill tank.
ALM – Level when machine will
go into alarm.
HIGH – Level when tank is full.
SKIM LEVEL - Fills tank to over flow level, allows film to
removed from tank (950 maximum).
SKIM TIMER - Interval between skim function. Minutes:Seconds
(MM:SS)
DEFAULT RESET - Reset PLC to factory defaults.
Code = 1234
1)
ALARM TYPE
DATE: 00/00/2015
TIME: 24hr
