MP Systems R Series - Chiller Ambient Temperature Chart

53 MPSYSTEMS-M-001/06

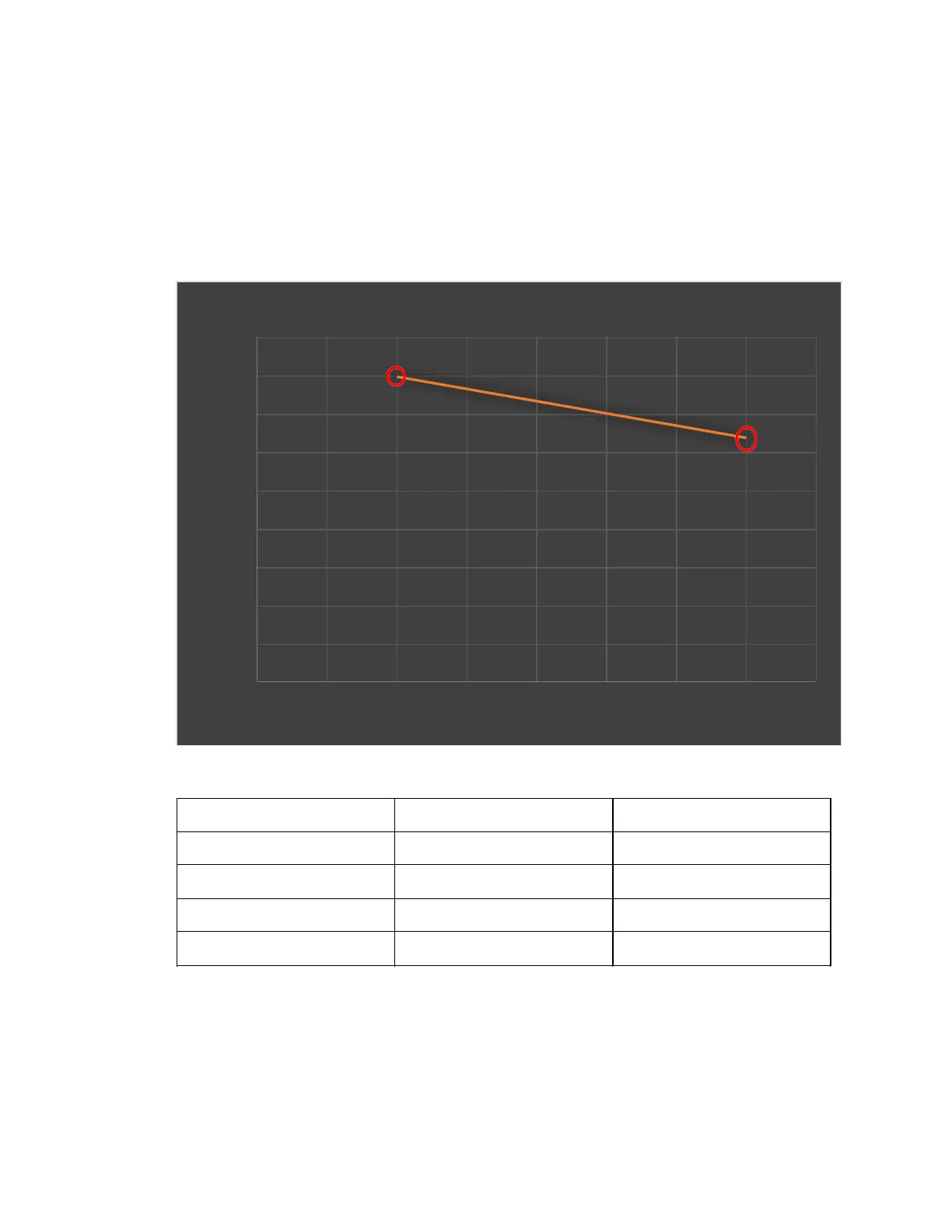

9.6.1. Chiller Ambient Temperature Chart
Ambient Temperature Chart
Ambient temperature is not to exceed 95°F or go below 70°F. Loss in in capacity results when ambient
temps are outside the operating range. If set point temperature is greater than 2° below ambient
temperature a loss of capacity is possible.
Pump Model
RF8/VR8
RT/VRT/RF16/VR16
HP PUMP
15264
30528
Circulation Pump
2544
2544
Feed Pump
2544
2544
Total BTU Load
20352
35616
To calculate heat load on machine add total kilowatt or horsepower rating of coolant pumps in machine
tank. 1kW=3412 BTU total kW X 3412 = total BTU's 1HP=2544 BTU total HP X 2544 = total BTU's
If you have any questions, comments, or concerns, please call us at (877) 689-1860 to speak to a Service Technician
MPSYSTEMS-I-001/01 (Ambient Temperature Chart)
