7.4.2. Variable/Adaptive Series PLC Settings (VR Series)

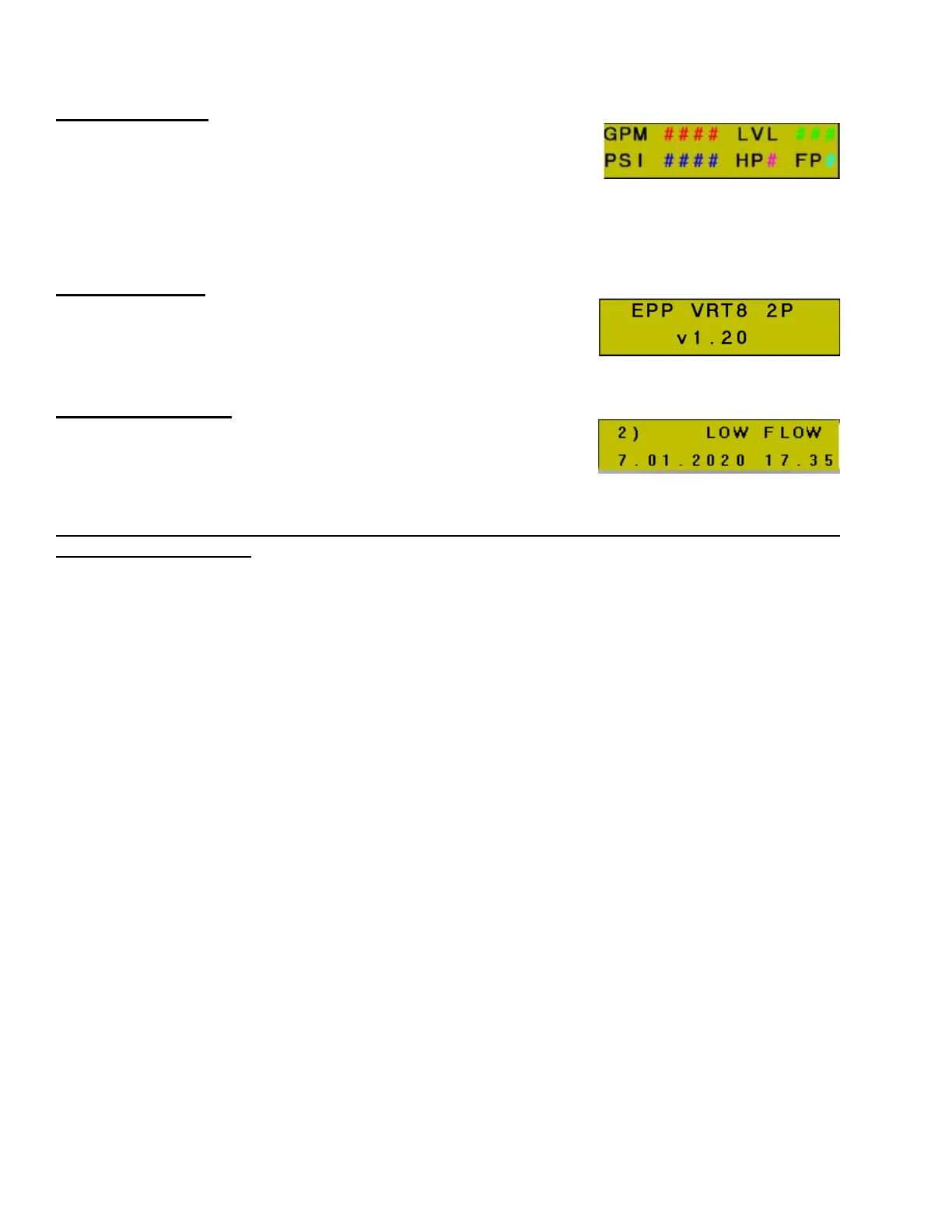

MAIN SCREEN
### - High Pressure System 1 Status
### - High Pressure System 2 Status
### - Feed Pump Status
### - Reservoir/MP Tank Level (0-1000)
# - Port 1 Pressure (PSI)
# - Port 2 Pressure (PSI)
INFO SCREEN
ⓘ (Information)
Button on PLC control pad will
display current program version.
ALARM SCREEN
▲▼
(Up, Down)
Button on PLC control pad will
display the last 10 alarms along with the
date and time of occurrence.
Press [1] & [2] keys simultaneously to access password screen. Use this function to access the
following menu options.
