MR MSENSE DGA 2 - Design

4 Product description
Messko GmbH 2020 19BA4001150/10 EN MSENSE
®
DGA 2/3
4.3 Design

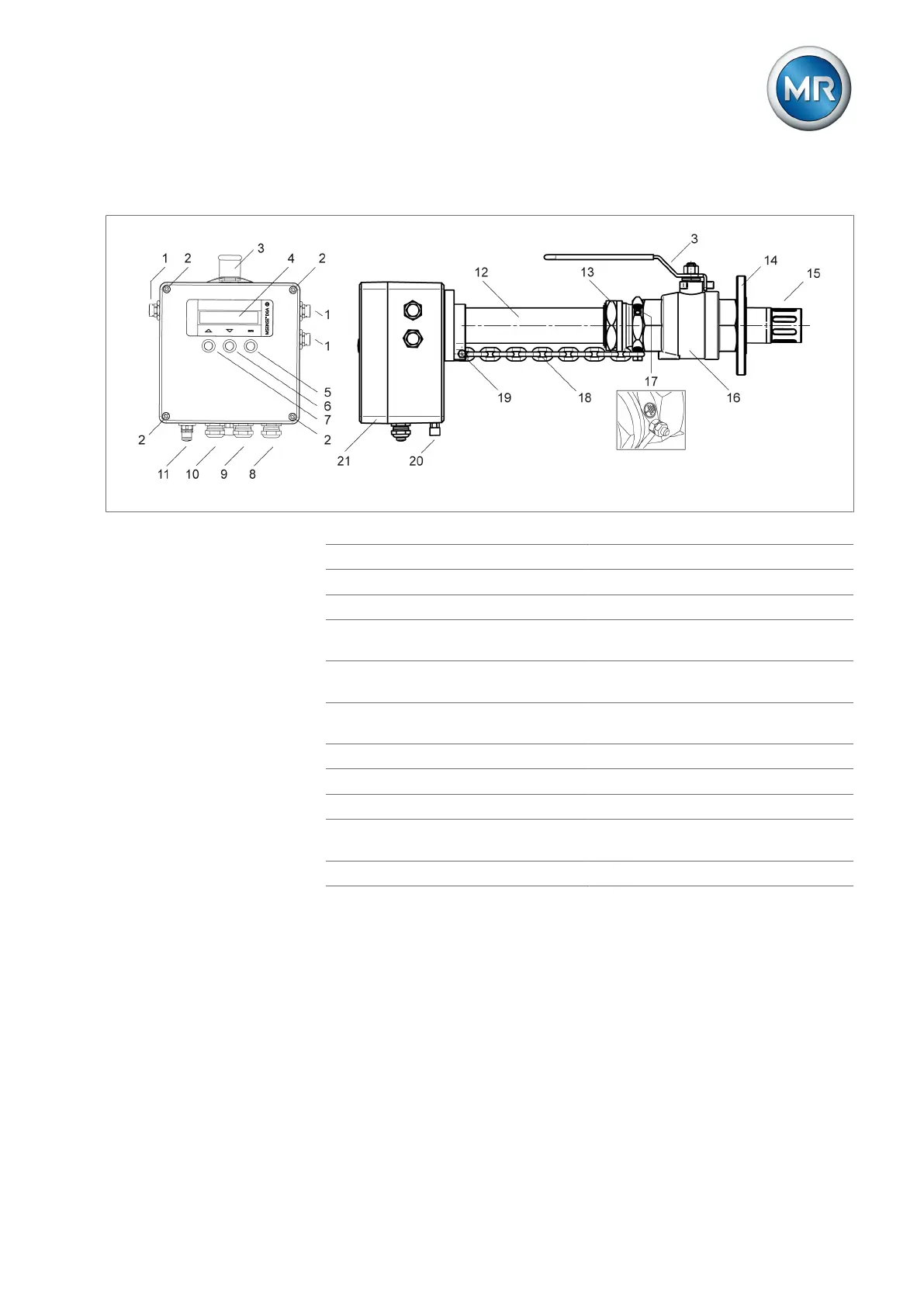

Figure1: MSENSE® DGA 2/3
1 Ventilation 2 Housing cover screw connection
3 Ball valve locking lever 4 Display
5 ENTER key 6 DOWN key
7 UP key 8 Supply voltage cable screw con-
nection
9 Signaling relay cable screw con-
nection
10 Analog outputs cable screw con-
nection
11 Interface (5-pole) for service PC
and Modbus RTU communication
12 Measuring pipe
13 Ball valve clamp connection 14 Mounting flange
15 Measuring head 16 Ball valve
17 Grounding screw 18 Safety chain
19 Fixing screw for safety chain 20 Connection for venting and taking
samples
21 Housing cover
