MR MSENSE DGA 2 - Device Dimensions with 507 MM Measuring Pipe Length

14 Appendix
Messko GmbH 202094 BA4001150/10 ENMSENSE
®
DGA 2/3
14.2 Device dimensions with 507 mm measuring pipe length

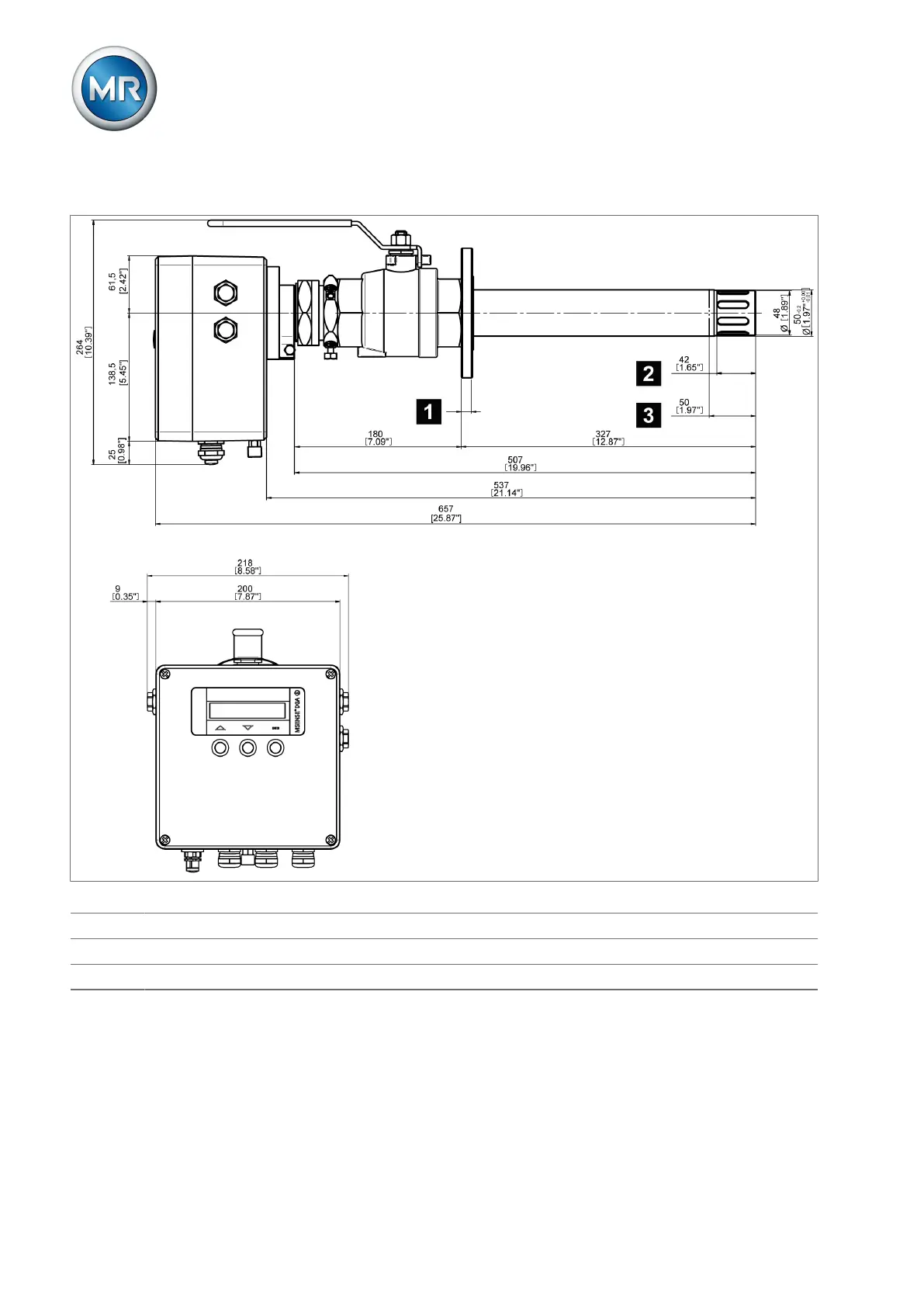

Figure72: Device dimensions with 507 mm measuring pipe
1 Flange, see table [►Section 14.3, Page 95]
2 Minimum immersion depth
3 Recommended immersion depth
