6 Installation
Messko GmbH 202046 BA4001150/10 ENMSENSE
®
DGA 2/3
Device address: 1 to 247
Baud rate: 4800, 9600, ...115200
Parity: even
Detailed information is available in the MESSKO®MSET parameterization
software operating instructions.
6.3.8.3 Modbus RTU protocol
The data point table for the Modbus RTU protocol is available in the Appen-
dix [►Section 14.5, Page 98].
Comprehensive information on Modbus is available on the Internet: http://
www.modbus.org/.

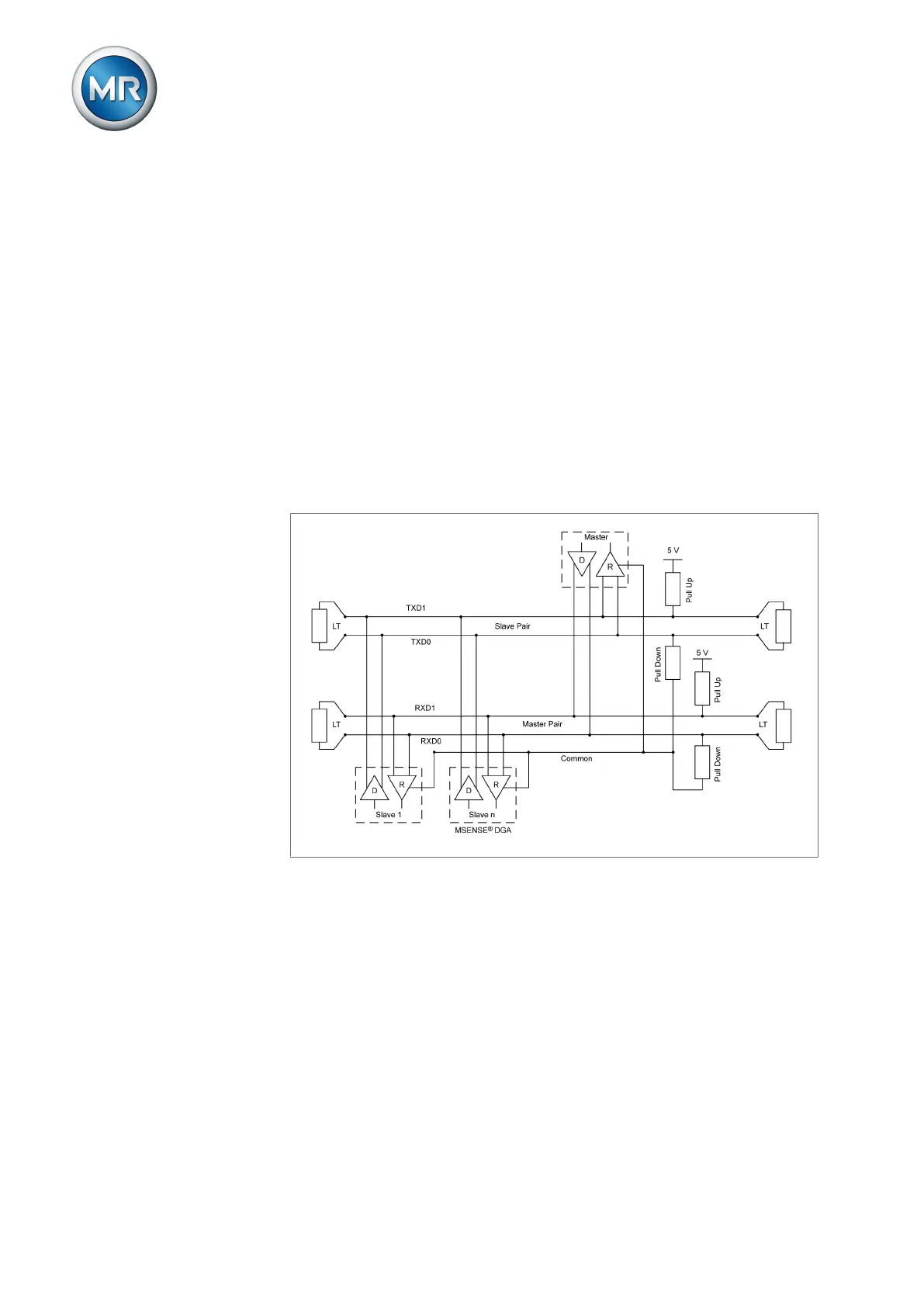

6.3.8.4 Integration of the device into a 4-conductor system
Figure33: 4-conductor system
