10 Maintenance
Messko GmbH 202074 BA4001150/10 ENMSENSE
®
DGA 2/3
The individual analysis values are to be found on the following pages of the
analysis report:

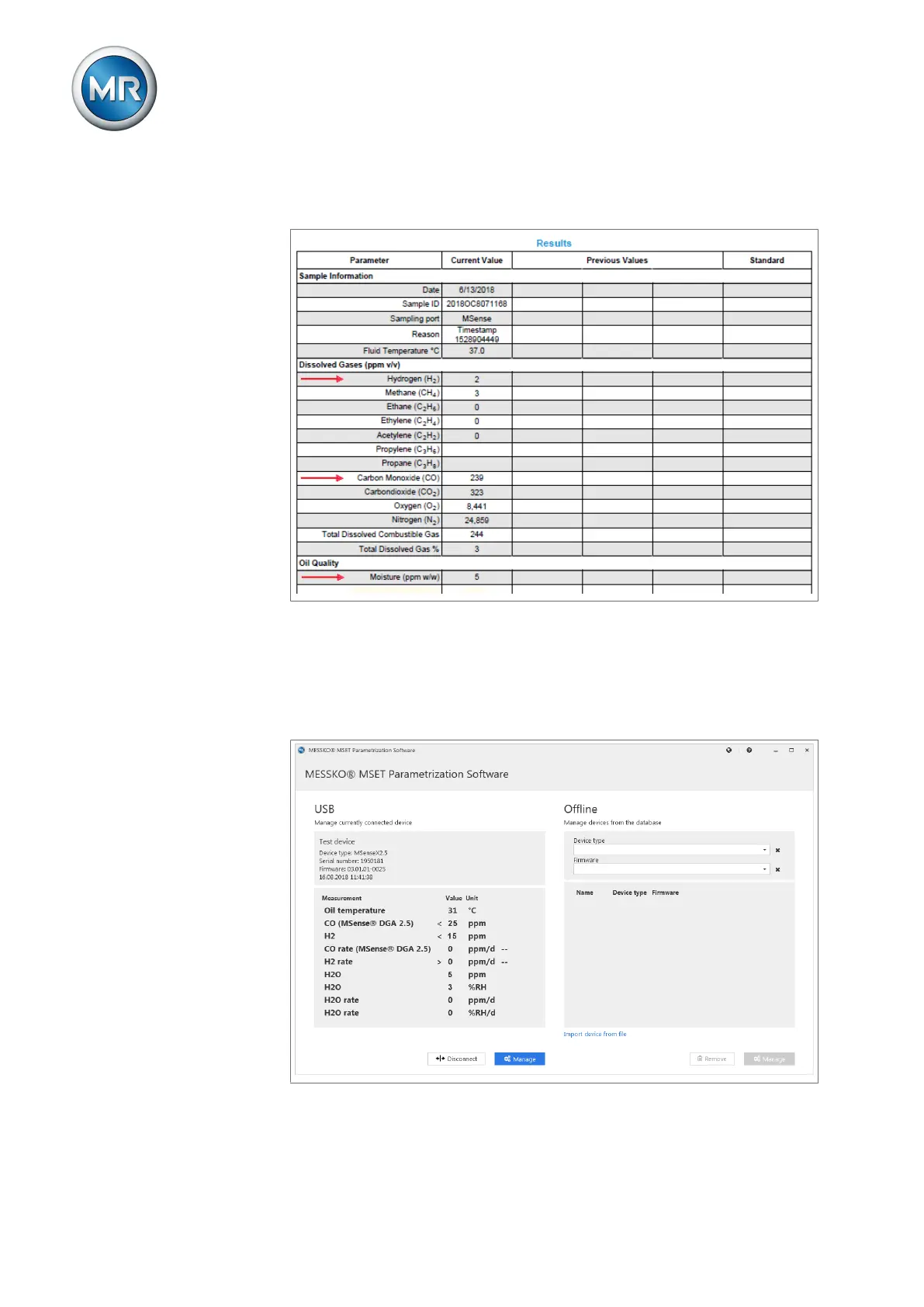

Figure49: Analytical values (example)
To perform the field calibration, proceed as follows:
1. Connect the MSENSE®DGA 2/3 to the PC via the USB service adapter
and open the MESSKO®MSET parameterization software.
ð The parameterization software connects to the device.
Figure50: MSET main screen
2. Click on Manage on the left-hand side of the Home view (USB).
