14 Appendix
Messko GmbH 202096 BA4001150/10 ENMSENSE
®
DGA 2/3
Flange dimensions table
Flange version A
mm [inch]
B
mm [inch]
C D E
mm [inch]
F
mm [inch]
G
mm [inch]
DN50 PN6 Ø140 [5.51"] Ø110 [4.33"] 70° 4 x 50° Ø13 [0.51"] Ø81 [3.19"] Ø65 [2.56"]
DN50 PN16 Ø165 [6.50"] Ø125 [4.92"] 70° 4 x 50° Ø18 [0.71"] - -
DN50 PN16 Ø165 [6.50"] Ø125 [4.92"] 70° 4 x 50° Ø18 [0.71"] Ø81 [3.19"] Ø65 [2.56"]
DN80 PN16 Ø200 [7.87"] Ø160 [6.30"] 34.5° 8 x 24° Ø18 [0.71"] - -
DN80 PN16 Ø200 [7.87"] Ø160 [6.30"] 34.5° 8 x 24° Ø18 [0.71"] Ø116.2 [4.57"] Ø100 [3.94"]
Gasket dimensions table
Flange version H
mm [inch]
I
mm [inch]
O-ring gasket (di) x (da) x (t)
mm [inch]
DN50 PN6 3 [0.12"] 12 [0.47"] O-ring 67 [2.64"] x 79 [3.11"] x 4 [0.16"]
DN50 PN16 - 18 [0.71"] For any gasket (not included in delivery)
DN50 PN16 3 [0.12"] 18 [0.71"] O-ring 67 [2.64"] x 79 [3.11"] x 4 [0.16"]
DN80 PN16 - 18 [0.71"] For any gasket (not included in delivery)
DN80 PN16 3.9 [0.15"] 18 [0.71"] O-ring ID100 [3.94"] x Ø 6 [0.24"]

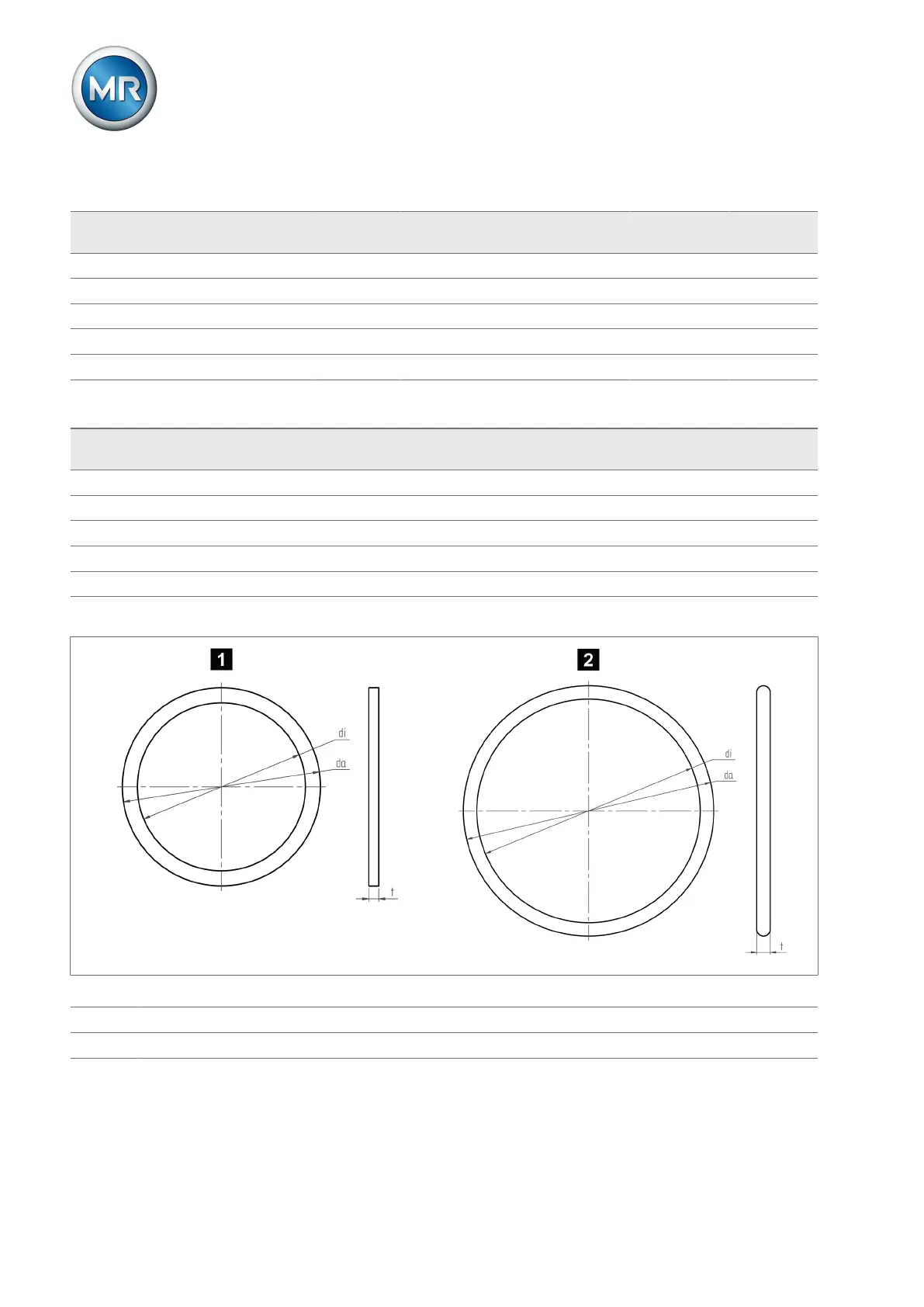

Figure75: Flange gaskets
1 O-ring gasket for DN50/PN6/16
2 O-ring for DN80/PN16
