NS50 wireless network switch
User Manual
Revision C
Appendix C: Ethernet Cable Specifications
© 2012 MST Global
Commercial in Confidence
107
Appendix C: Ethernet Cable Specifications
Ethernet cable must conform to the following specifications when connecting to IMPACT network devices:
Polyethylene jacket
5.0-6.5mm outer diameter
Stranded cable for lengths less than 30m
Solid core cable for lengths greater than 30m
Cable and Parts Description
Description
Order Code
Bayonet back-shell for RJ45 connector
W-NS50-RJ45-PLUG
The choice of RJ45 crimp will depend on the type of wire used (stranded or solid core). Generic brand
crimps may be used.
NOTE: Both solid and stranded core RJ45 connectors at the NS50 end require a bayonet
back-shell.

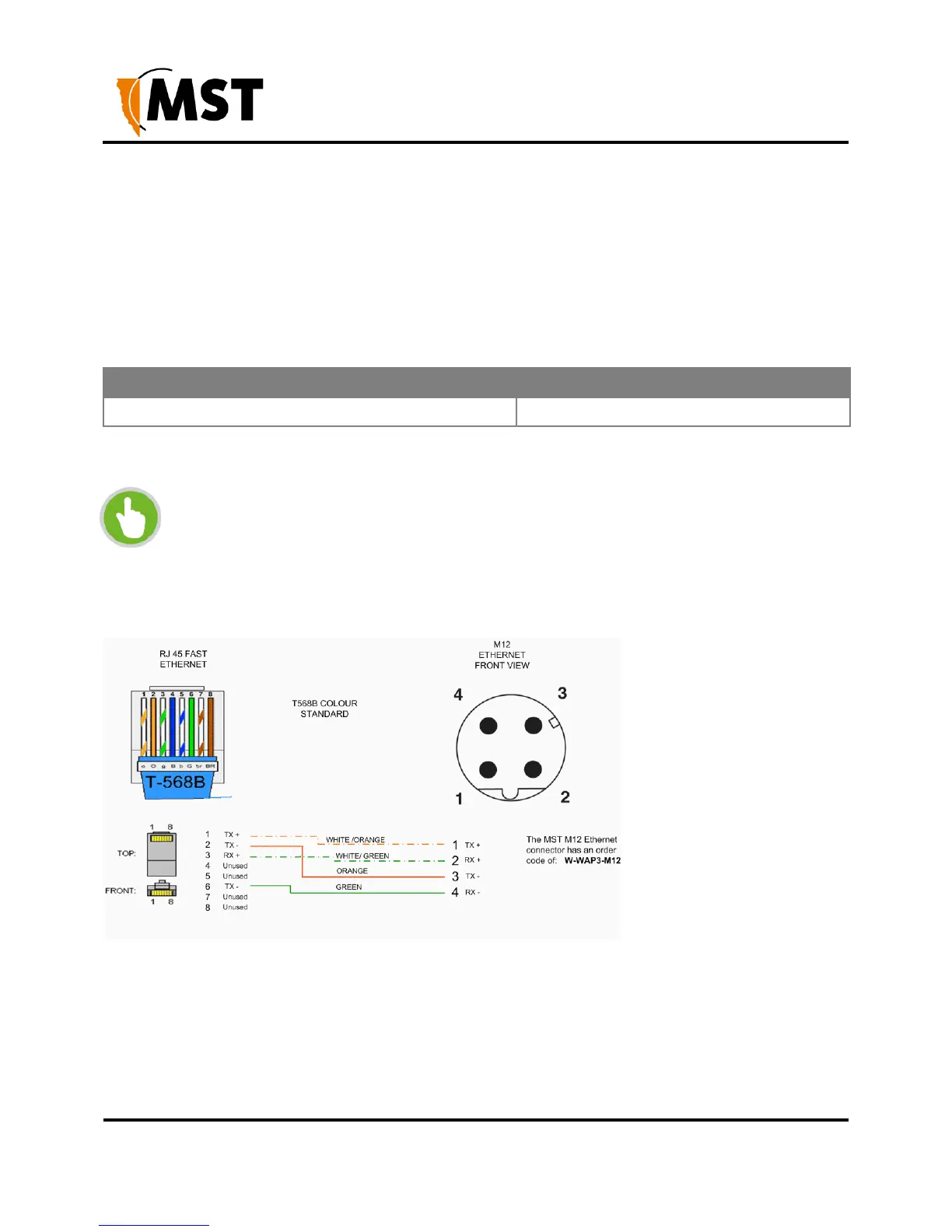

RJ45 to M12 Ethernet Cable Wiring Diagram
