5.5.4 Configuring Wireless Radio

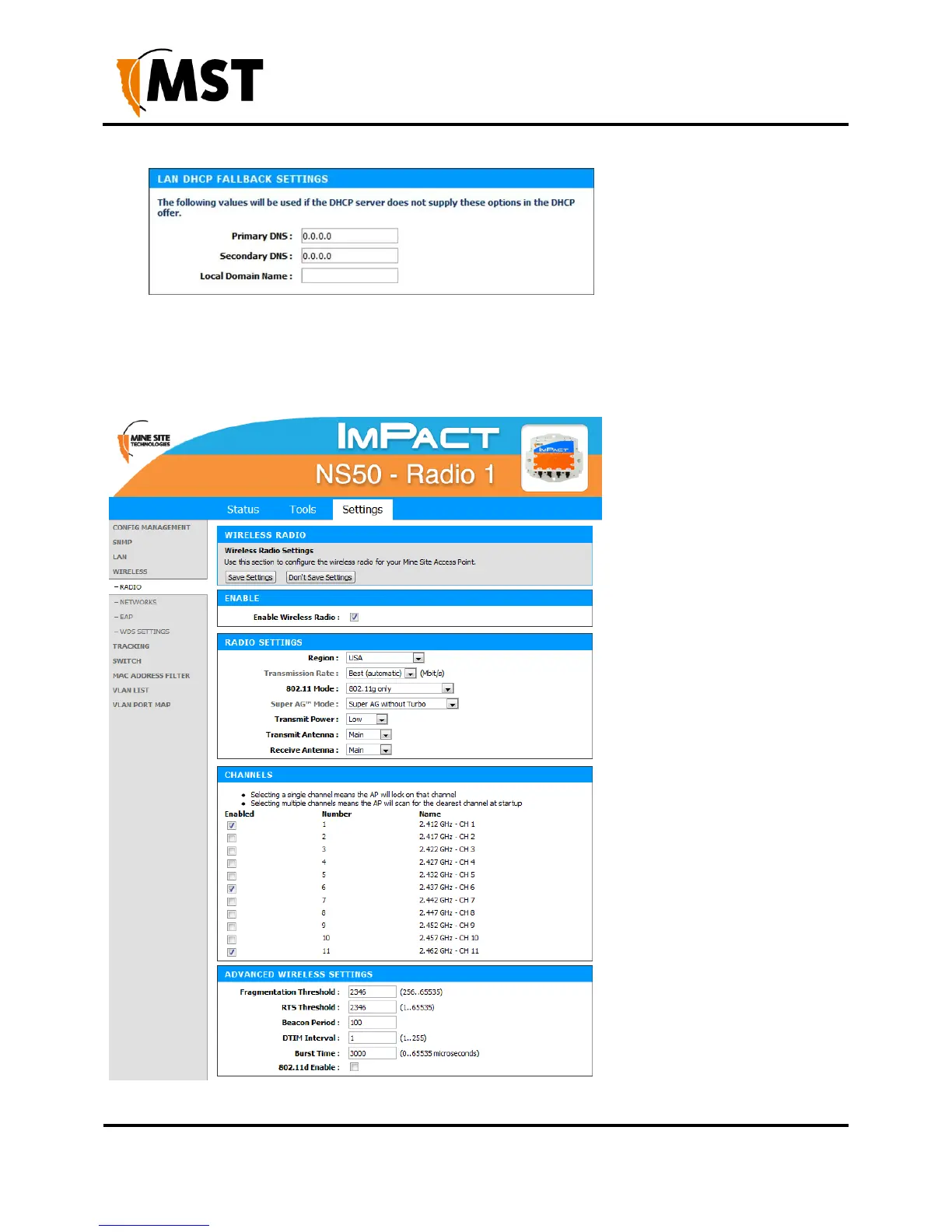

The Wireless Radio configuration screen configures wireless radio settings as shown in Figure 30:

Wireless radio configuration screen.

Figure 30: Wireless radio configuration screen
