5.3.4 Viewing Network Traffic Statistics
The Statistics status screen provides network traffic statistics for the WAC's LAN interface and each of
the wireless SSIDs.

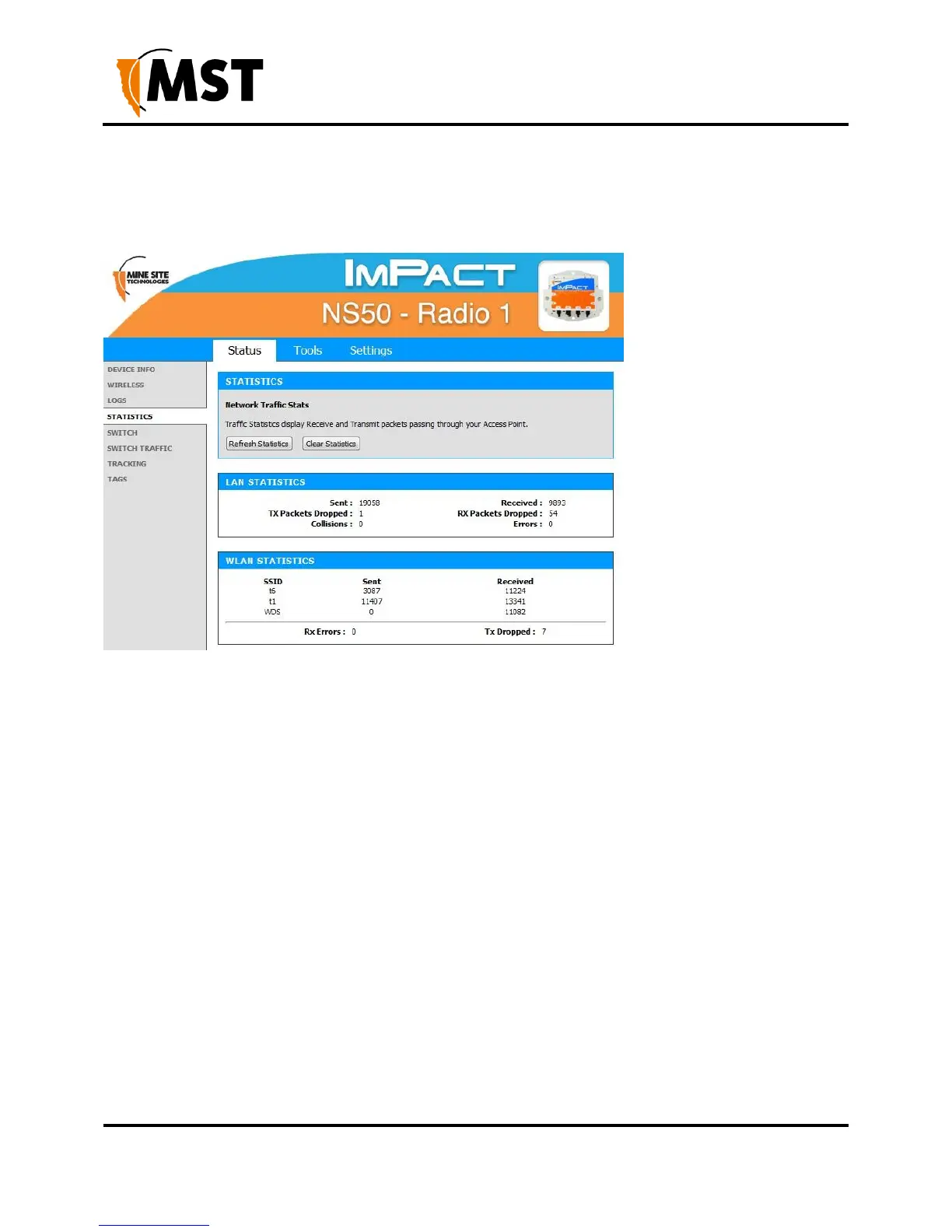

Figure 22: Statistics status screen
To view statistics:
1. Click Refresh Statistics to update the statistics.
2. Click Clear Statistics to clear displayed statistics. A reset confirmation dialog box is
displayed.
3. Click OK.
The following parameters are displayed:
 LAN STATISTICS
 Sent: The number of frames sent out from NS50 via all physical network interfaces (Ethernet and
Fibre).
 Received: The number of frames received by the NS50 via all physical network interfaces.
 TX Packets Dropped: The number of frames dropped while being sent to the switch processor,
due to errors, collisions, or network switch resource limitation.
 RX Packets Dropped: The number of frames dropped while being received from the switch
processor, due to errors, collisions, or network switch resource limitation.
 Collisions: The number of frames dropped due to Ethernet collisions.
 Errors: The number of transmission failures that caused the loss of a packet.
