MST Impact NS5001 User Manual

NS50 wireless network switch
User Manual
Revision C
Chapter 5: Configuration Using the Web Interface
© 2012 MST Global
Commercial in Confidence
72

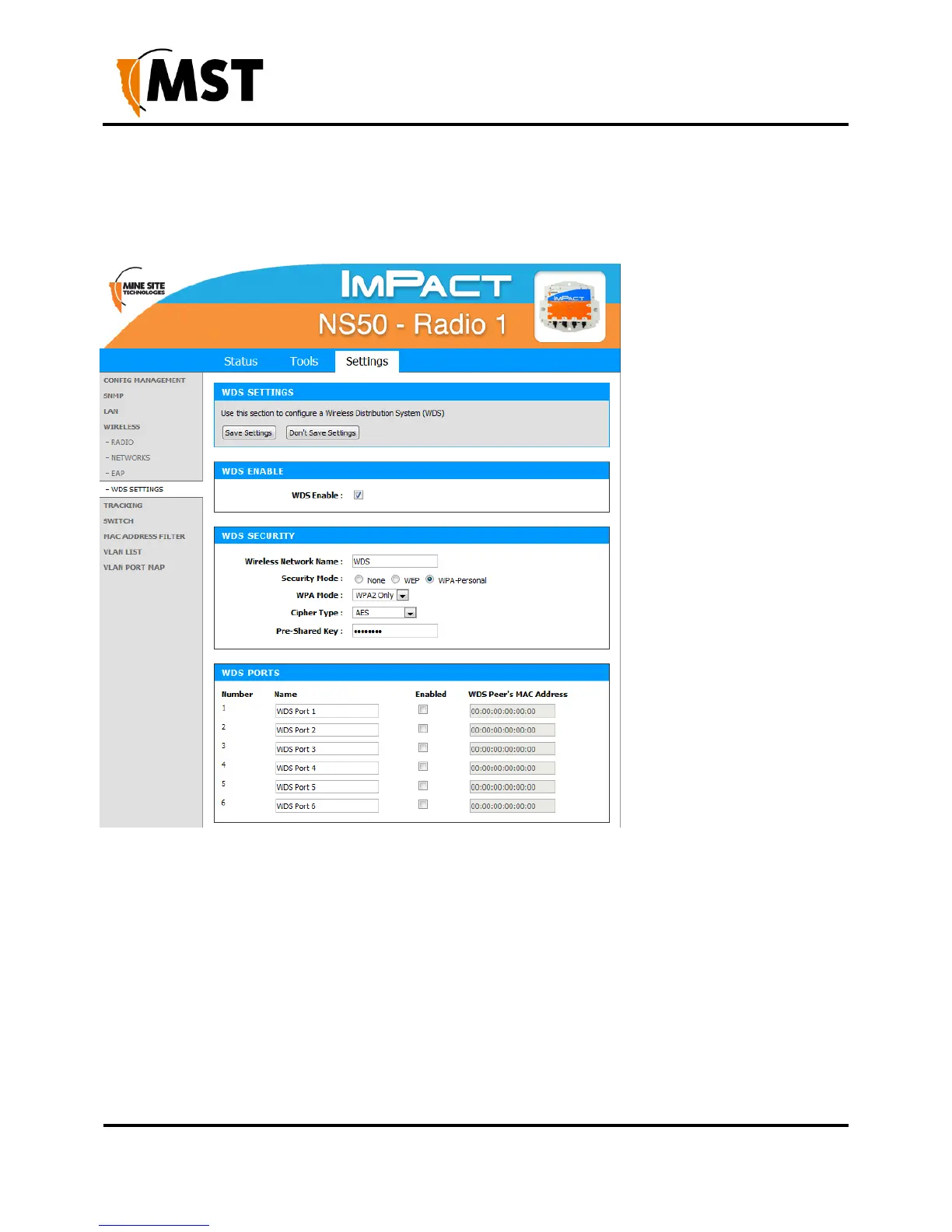

5.5.7 WDS (Wireless Distribution System) settings
The Wireless Distribution System (WDS) feature allows IMPACT network devices to connect wirelessly
where a fibre or ethernet connection is not practical. Up to six devices can be configured.
To configure WDS settings:
1. Click in the WDS Enable check box.
2. Under WDS Security section, enter the wireless network name (SSID).
3. Select the Security Mode and enter the authentication details.
4. Under WDS Ports, enable the required number of ports and the MAC address of each
network device that the device will use WDS to connect to the network.
5. Click Save Settings.
