NS50 wireless network switch
User Manual
Revision C
Chapter 3: Installation
© 2012 MST Global
Commercial in Confidence
27

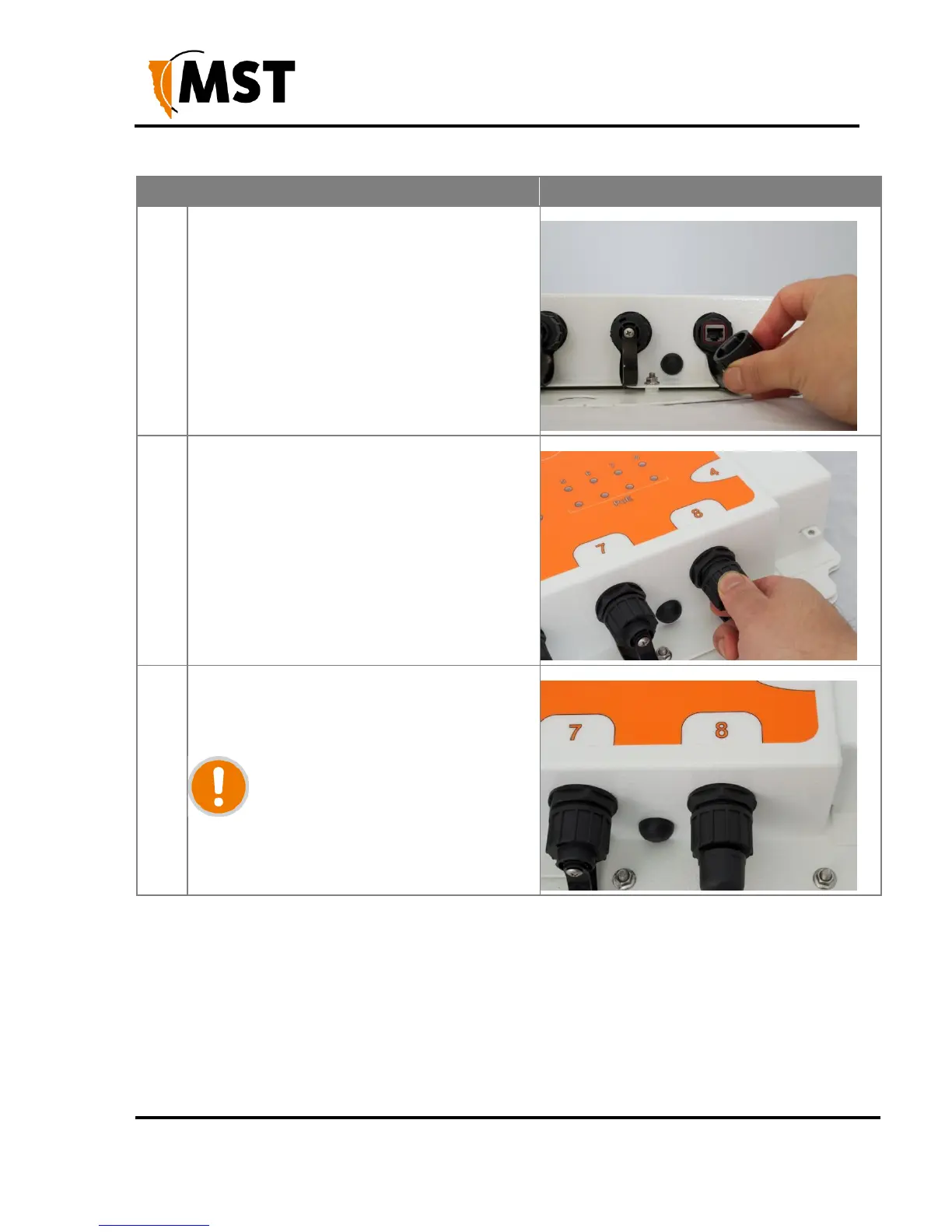

Step
Procedure
Illustration
1
Unscrew the protective cover on the Ethernet
port.
2
Insert the Ethernet cable (with a bayonet back-
shell) into the Ethernet port.
3
Align the protective cover on the cable to the
notch in the mating jack on the NS50, and twist
to lock the connector.
IMPORTANT:
Check that all unused Ethernet ports
remain protected with the supplied
covers.
