NS50 wireless network switch
User Manual
Revision C
Chapter 3: Installation
© 2012 MST Global
Commercial in Confidence
29

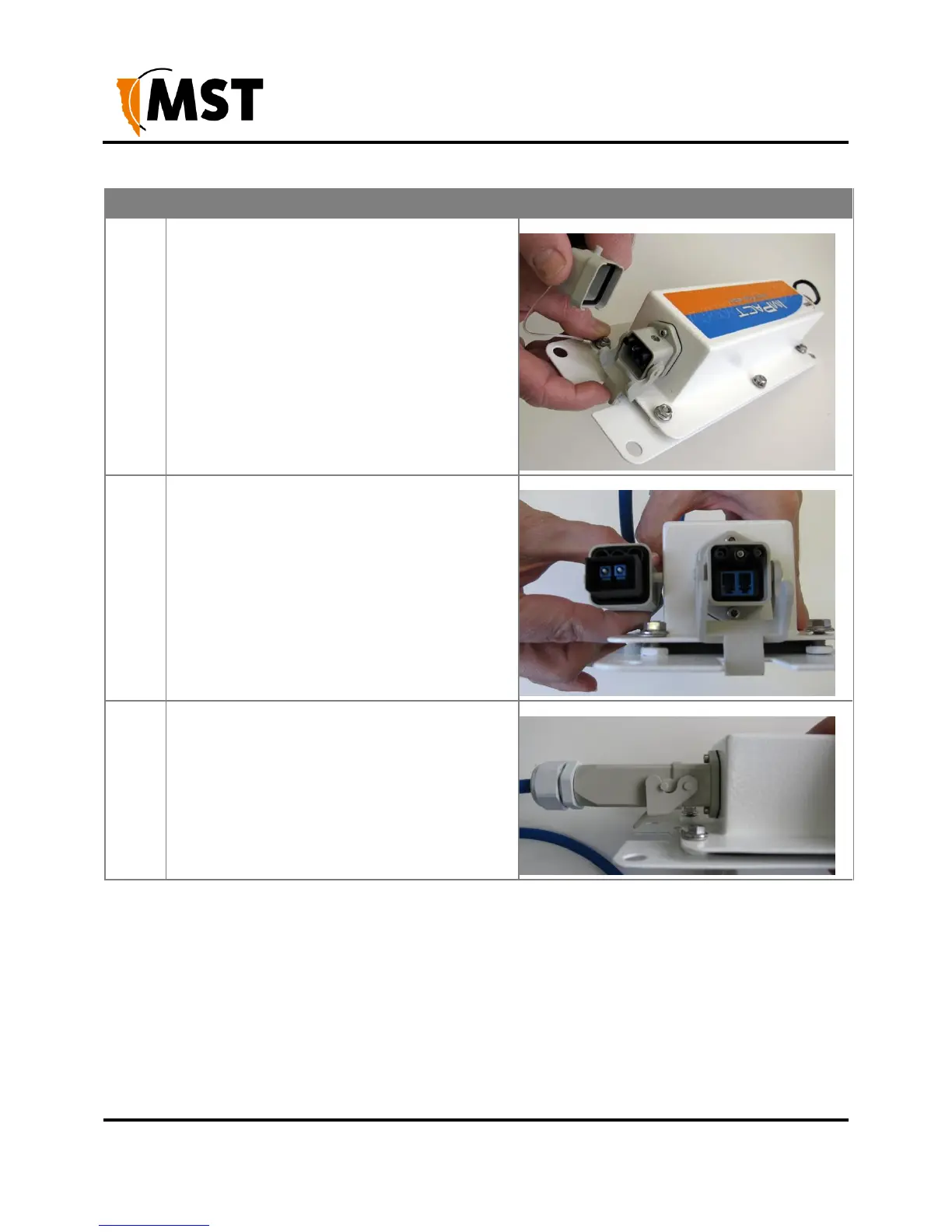

Step
Procedure
Illustration
1
Release the catch on the composite fibre/power
cable port and remove the cover.
2
Align the pins on the connector to the composite
port.
3
Insert the cable into the composite port, and
push the locking catch to the connector.
