NS50 wireless network switch
User Manual
Revision C
Chapter 3: Installation
© 2012 MST Global
Commercial in Confidence
32
Step
Procedure
Illustration

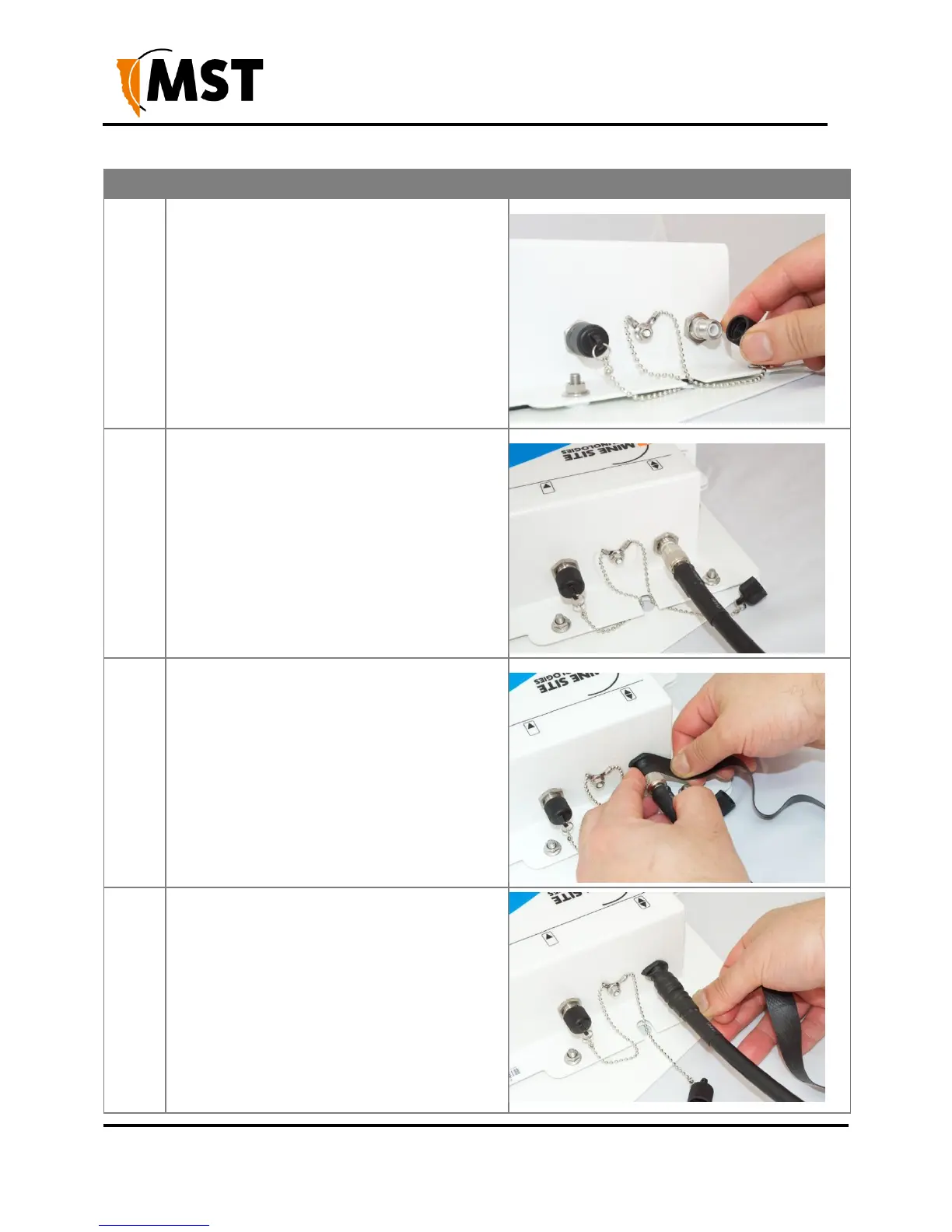

1
Remove the dust cap from the antenna port.
2
Connect the coaxial cable plug to the RP-TNC
jack on the NS50 and tighten the outer sleeve.
3
Insulate the connection using self-
amalgamating rubber tape. Start at the base of
the connection and pull back the rubber tape
backing.
4
Pull the tape tightly, and tape around the
connector at an angle until it is 25mm past the
end of the connection.
