2.13 Instructions for Mounting the Sentry II Control Box Enclosures
1. Install the Sentry II control box in a location where it is easily accessible for the operator and
protected from excessive wash down.
2. Install the peristaltic pump box and manifold box in an area protected from freezing and within
easy access to the chemical storage drums.
NOTE: The maximum length for the chemical supply hose is 28 feet (8 meters).
2.14 Water Line Connections
1. Connect the hot and cold water fill hoses to the water solenoid valves located in the right side of
the manifold box. See Figure 10.
2. Some localities may require the installation of high hazard back-flow preventors in the water
supply plumbing if the installation is connected to chemical supply drums larger than 1 gallon.
Contact your local regulatory agencies for proper direction and compliance.

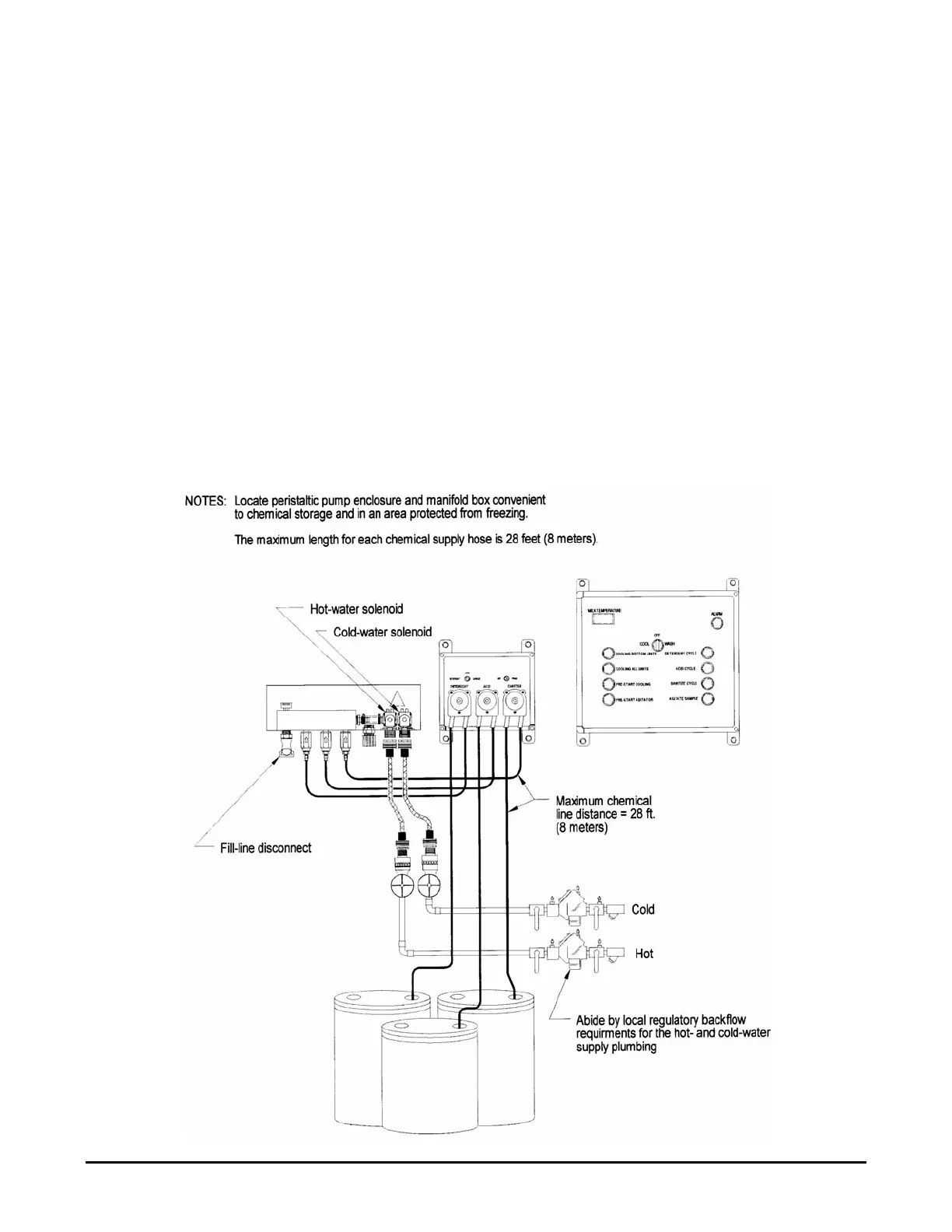

Figure 10 - Sentry II Control Box Installation and Water Connections
Sentry II with Auto-Dosing Assembly Operating Instructions 11 Effective April 1, 2000
