Mueller SENTRY II - Figure 16-Electrical Schematic - Wash Pump Motor

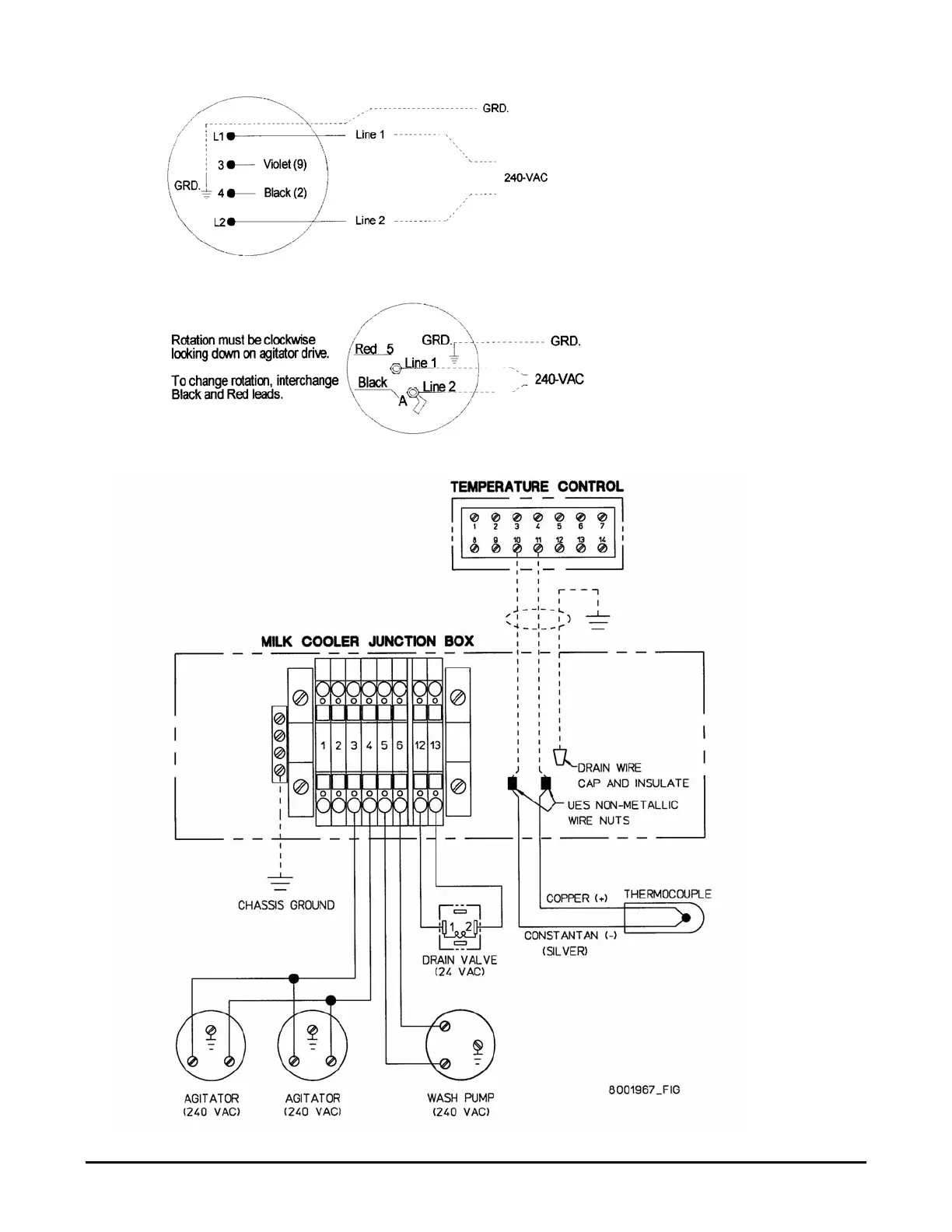

Figure 16 - Electrical Schematic - Wash Pump Motor
Figure 17 - Electrical Schematic - Agitator Motor(s)
Figure 18 - Electrical Schematic - Rear Junction Box
Sentry II with Auto-Dosing Assembly Operating Instructions 17 Effective April 1, 2000
