Mueller SENTRY II User Manual

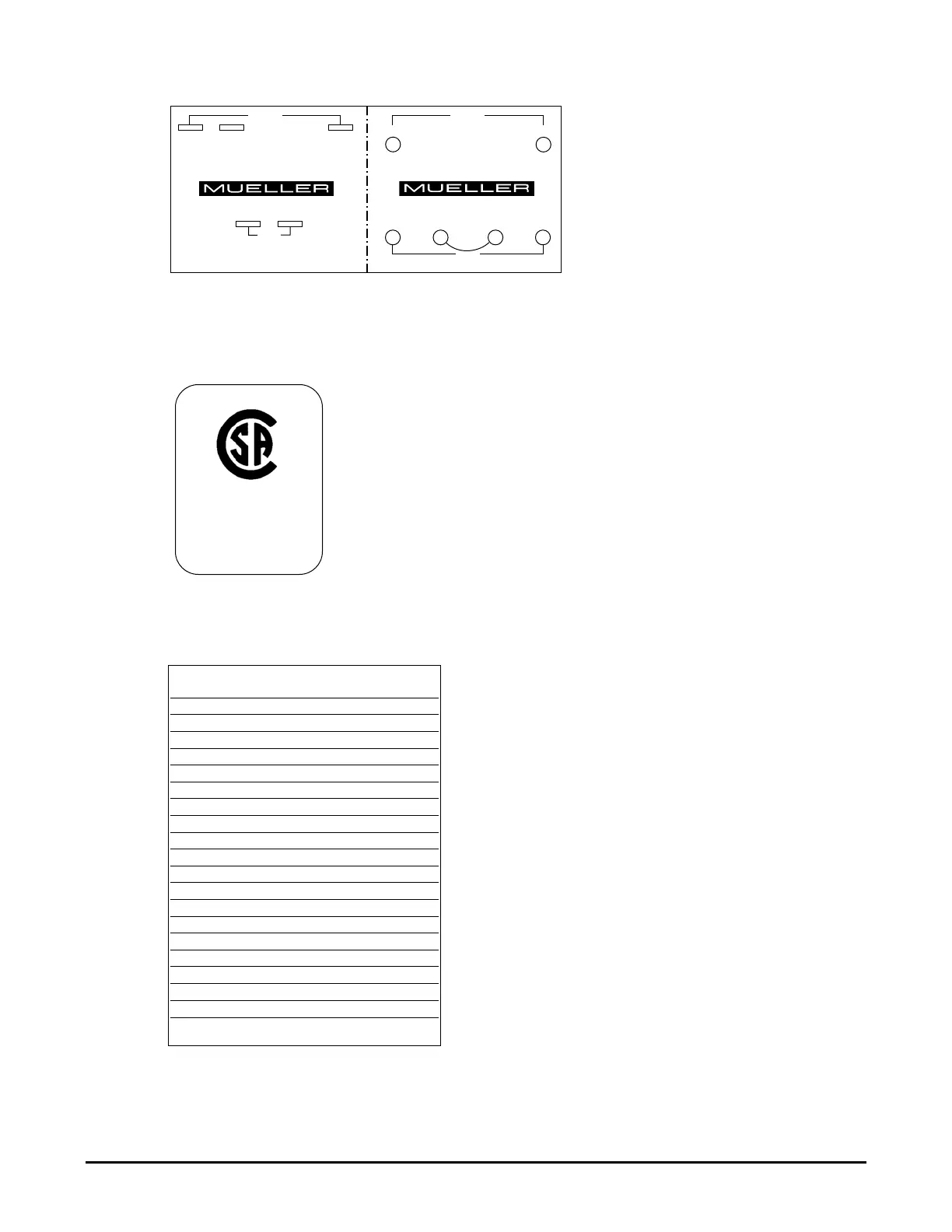

10.21 Label No. 8822972, Transformer Wiring
10.22 Label No. 8822705, Canadian and U.S. Certification
10.23 Label No. 8822948, 24 and 240 VAC Component List
Sentry II with Auto-Dosing Assembly Operating Instructions 69 Effective April 1, 2000
LR67608
NPI 8822705
240V 208V COM
X4 X2 X3 X1
H1 H2
®
DAIRY FARM EQUIPMENT
®
DAIRY FARM EQUIPMENT
9910 8822972
Standard Transformer
Part No. 8822971 (240V)
Japanese Transformer
Part No. 8823060 (195V)
24V
195V
240V
24V
3 Remote Alarm Lamp (24 VAC)
4 Remote Cool Lamp (24 VAC)
5 Remote Wash Lamp (24 VAC)
6 Condensing Unit 1 (24 VAC)
7 Condensing Unit 2 (24 VAC)
8 Drain Valve (24 VAC)
9 Hot Water Solenoid (24 VAC)
10 Cold Water Solenoid (24 VAC)
2 Neutral (24 VAC)
11 Pressure Switch (N.O.)
12 Pressure Switch (N.O.)
13 Detergent Pump (240 VAC)
14 Acid Pump (240 VAC)
15 Sanitize Pump (240 VAC)
16 Pump Motor (240 VAC)
17 Pump Motor (240 VAC)
18 Agitator Motor (240 VAC)
19 Agitator Motor (240 VAC)
L1 Main Power (240 VAC)
L2 Main Power (240 VAC)
0003 8822948
