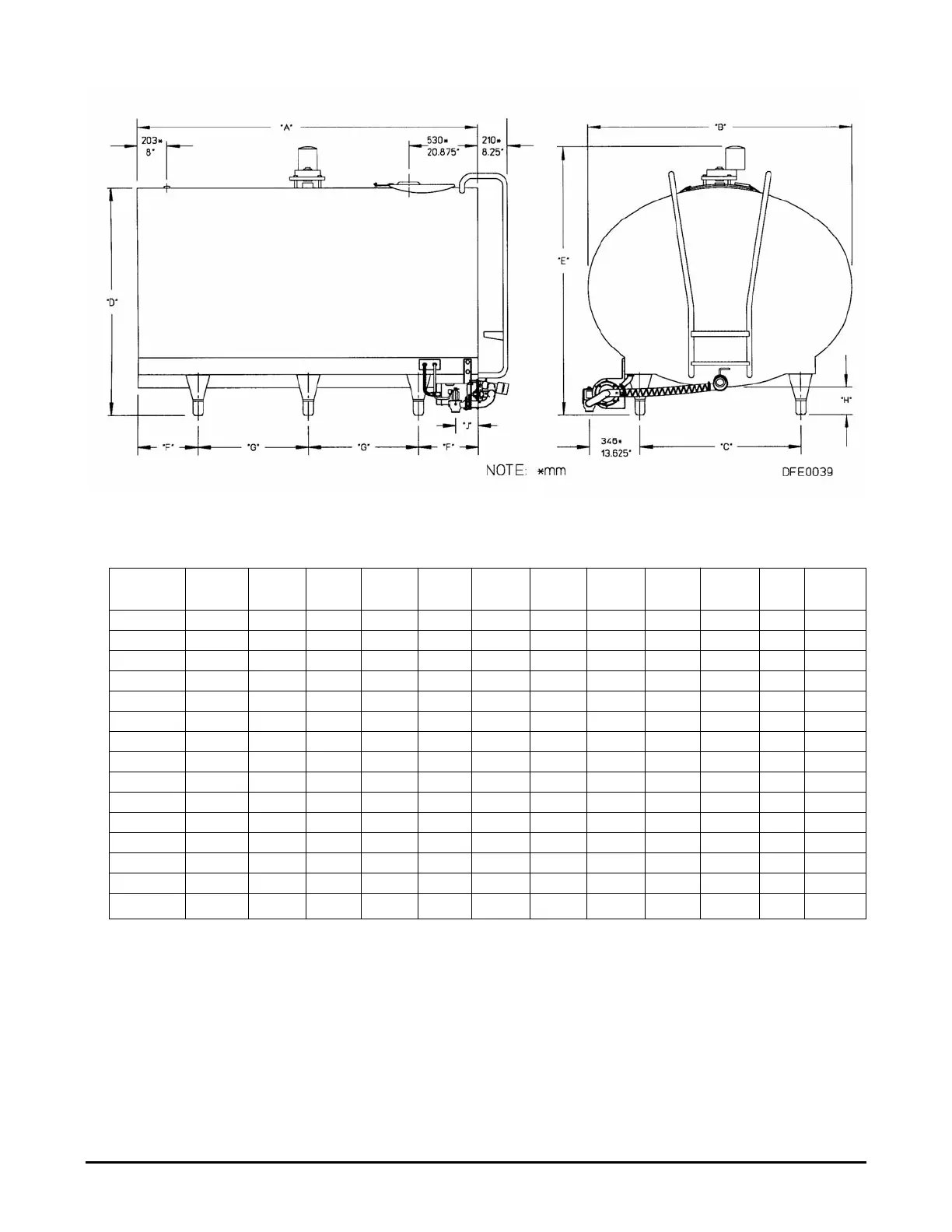

SECTION 8.0 - WEIGHTS AND DIMENSIONS
8.1 English Weights and Dimensions
Dimensions not to be used for construction unless certified.
1
Actual calibration capacity may exceed certified capacity
2
Minimum and maximum clearance under the milk cooler with standard adjustable legs.
3
Approximate weight measured in pounds (includes agitator(s), pump assembly, and controls).
Sentry II with Auto-Dosing Assembly Operating Instructions 56 Effective April 1, 2000
Revised February 5, 2001
Capacity
1
ABCDE F GH
2
J No. of Weight
3
Model (gallons) (inches) (inches) (inches) (inches) (inches) (inches) (inches) (inches) (inches) Legs (Empty)
O-500 500 78 61 37.25 51 63.75 18 42 4-5 8.25 4 934
O-600 600 90 61 37.25 51.25 64 18 54 4-5 8.25 4 1,044
O-800S 800 80 71.25 50 60.75 73.5 18 44 4-8 8.25 4 1,284
O-1000S 1,000 102 71.25 50 61.25 74 18 33 4-8 8.25 6 1,530
O-1000D 1,000 102 71.25 50 61.25 74 18 33 4-8 8.25 6 1,576
O-1350 1,350 102 80 48.25 69.125 82 18 33 7-9 8.25 6 1,770
O-1600 1,600 120 80 48.25 69.5 82.25 18 42 7-9 8.25 6 1,988
O-2000 2,000 155 80 48.25 70.25 83 17.5 40 7-9 8.25 8 2,432
O-2700 2,700 155 90.5 48.25 70.25 83 17.5 40 7-9 8.25 8 3,220
O-3000 3,000 176 90.5 55 79.375 92.25 18 35 7-9 8.25 10 3,792
O-4000 4,000 196 97.625 58 86.25 99 18 32 7-9 8.25 12 5,982
O-5000 5,000 196 108 62 93.675 106.25 18 32 7-9 5.375 12 6,282
O-6000 6,000 196 119 72 99.375 112.25 12.25 24.5 7.9 5.375 16 6,792
O-7000 7,000 196 127 78 106.5 119.25 12.25 24.5 7-9 5.375 16 6,912
O-8000 8,000 228 126.3125 78 107.125 119.25 12 25.5 7-9 5.375 18 7,744
