2.17 Spray Dish Installation
The spray dishes connect to the internal or external CIP wash line with a stainless steel keeper pin.
Check for proper spray dish installation and orientation during the installation and start-up inspection.
The rectangular notch cut across the bottom of the spray dish tube must face the front and rear heads
of the milk cooler and the slot cut in the bottom of the dish must point towards the center of the
agitator shaft. See Figures 12 and 13.

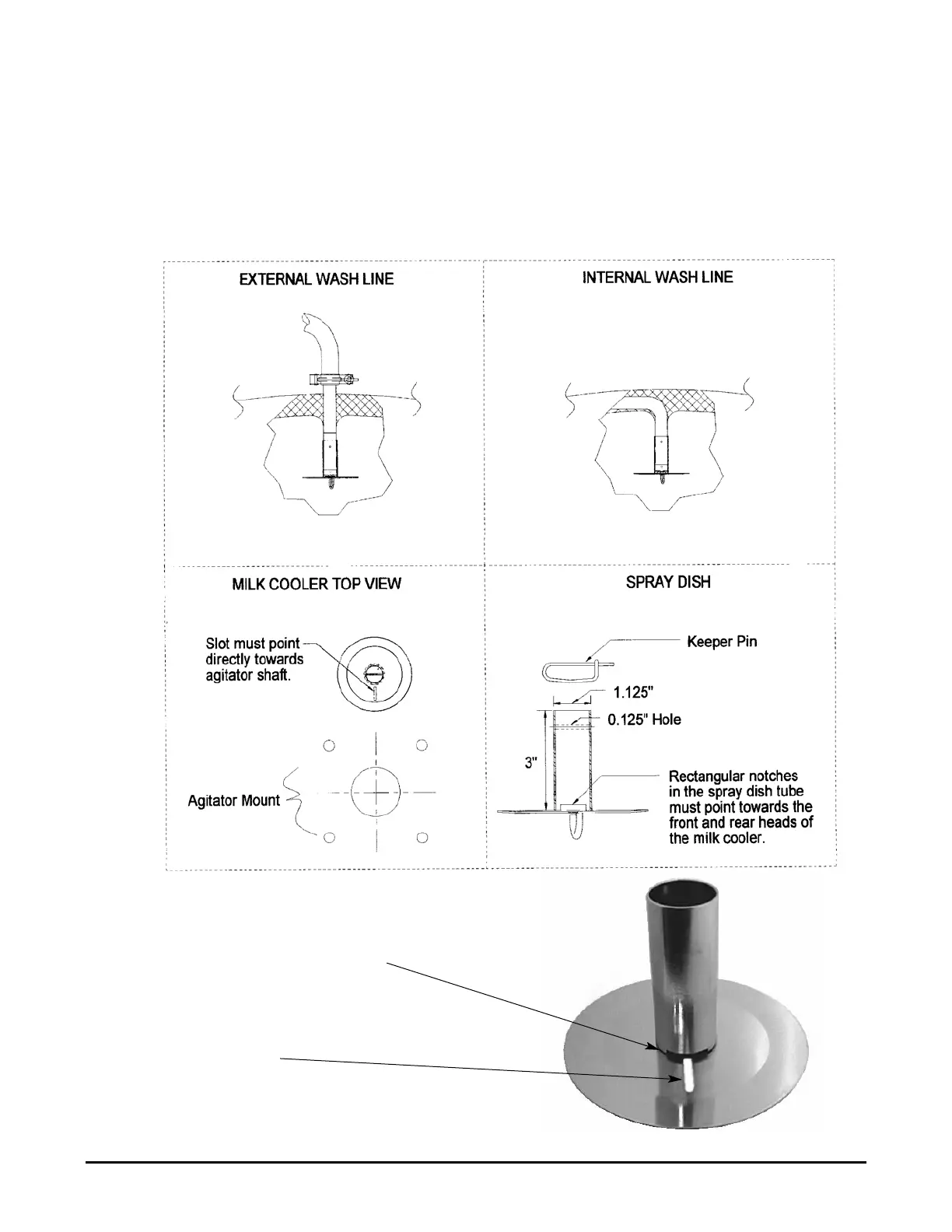

Figure 12 - Spray Dish Orientation
Figure 13 - Spray Dish
Sentry II with Auto-Dosing Assembly Operating Instructions 14 Effective April 1, 2000
Rectangular notch must face front and
rear heads of the milk cooler.
Orient slot towards the center of the
agitator shaft.
