SECTION 4.0 - SENTRY II TEMPERATURE CONTROL
4.1 Sentry II Temperature Control and Thermocouple Sensor
The Sentry II control uses an electronic temperature control with digital display and a Type “T”
thermocouple sensor. The following installation and calibration procedures are very important to
ensure accurate sensing of the milk temperature.
4.2 Sentry II Thermocouple Sensor Installation
Install the thermocouple sensor in the front-sensor raceway of the milk cooler as follows:
1. Fabricate an insertion rod from a 5-foot piece of 10-gauge solid wire by forming a
3
/
8
" open loop
on one end. See Figure 25.
2. Align the flat side of the “T” shaped sensor with the inner shell of the milk cooler.
3. Slip the loop of the insertion rod over the thermocouple wire and push the sensor down the
raceway until it seats into the spring-clip at the end of the sensor raceway.
4. Being careful not to pull the thermocouple from the spring clip, withdraw the insertion rod from
the sensor raceway. See Figures 25 and 26.

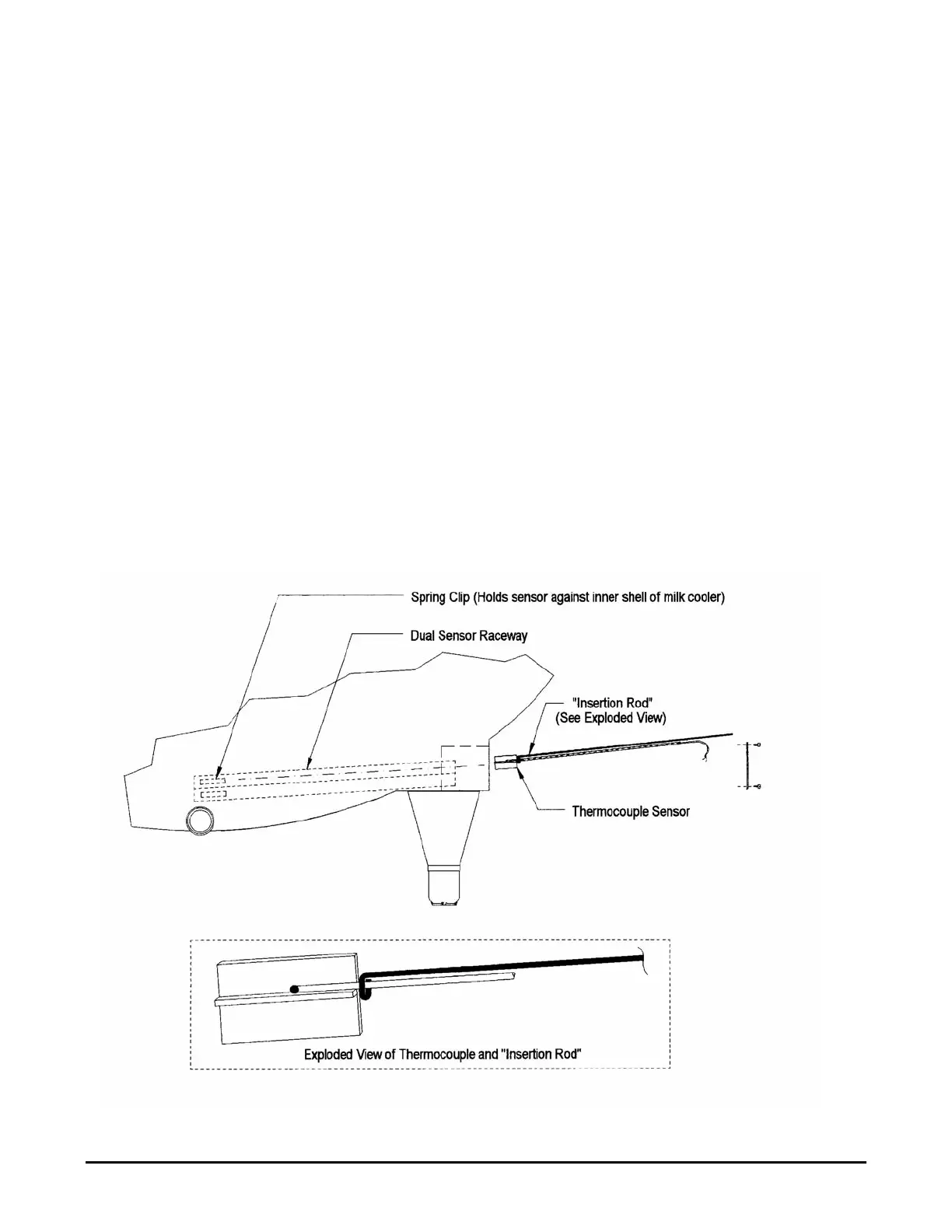

Figure 25 - Sentry II Thermocouple Sensor Installation
Sentry II with Auto-Dosing Assembly Operating Instructions 25 Effective April 1, 2000
