Using LAN Port
Connect directly
(1) Connection. Plug in the LAN cable to the LAN port in the right panel of the
oscilloscope; plug the other end into the LAN interface of the computer.
(2) Set the network parameters of the computer. Since the oscilloscope can
not support obtaining an IP address automatically, you should assign a static
IP address. Here we set the IP address to 192.168.1.71.

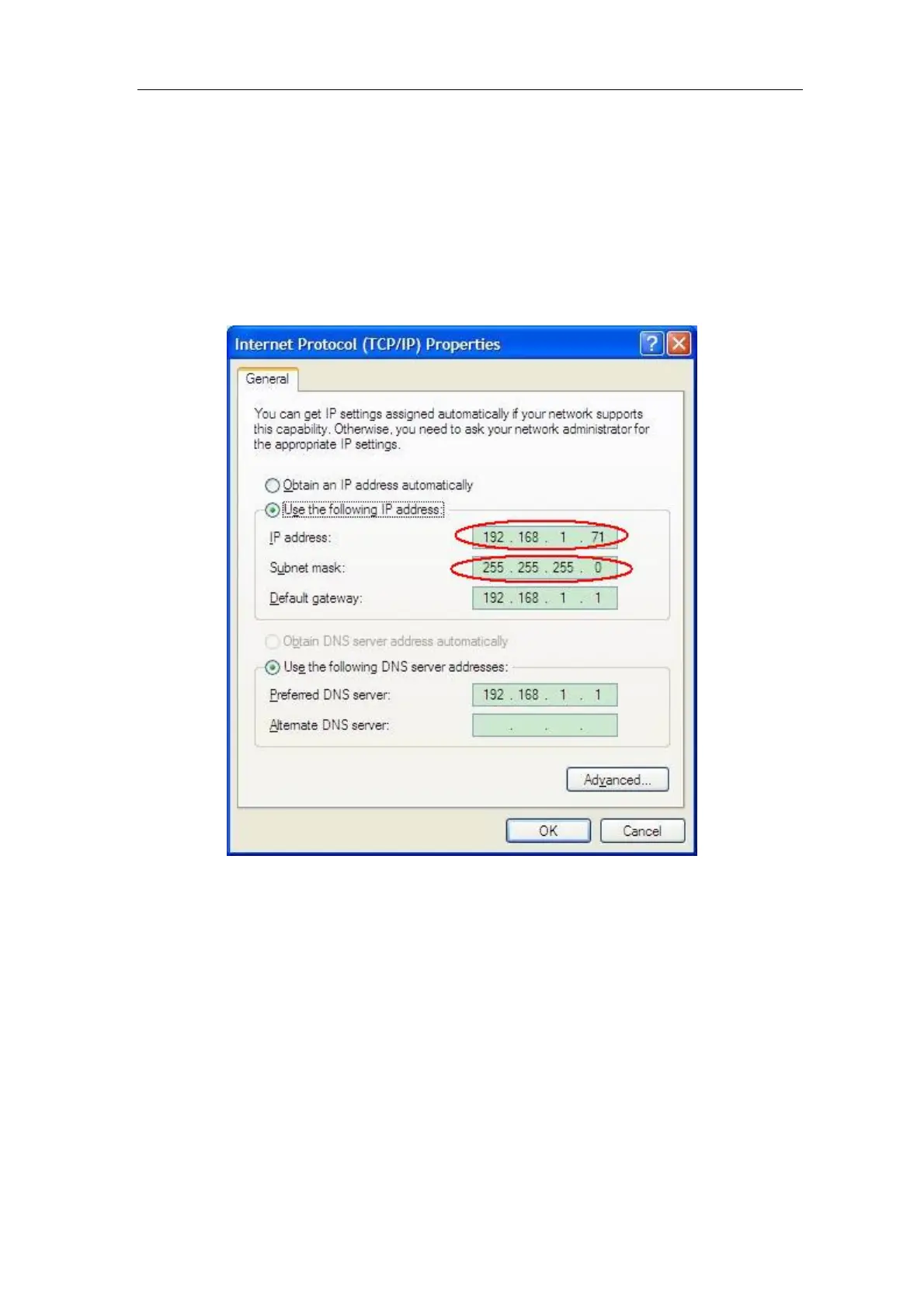

Figure 5-2 Set the network parameters of the computer
(3) Set the network parameters of the Oscilloscope Software. Run the
software on the computer; choose the "Ports-settings" of the
"Communications" menu item. Set "Connect using" to LAN. About the IP, the
first three bytes is same as the IP in the step (2), the last byte should be
different. Here, we set it to 192.168.1.72. The range of the port value is 0 -
4000, but the port which under 2000 is always used, so it is suggested to set it
to the value above 2000. Here, we set it to 3000.
