Multicomp-Pro

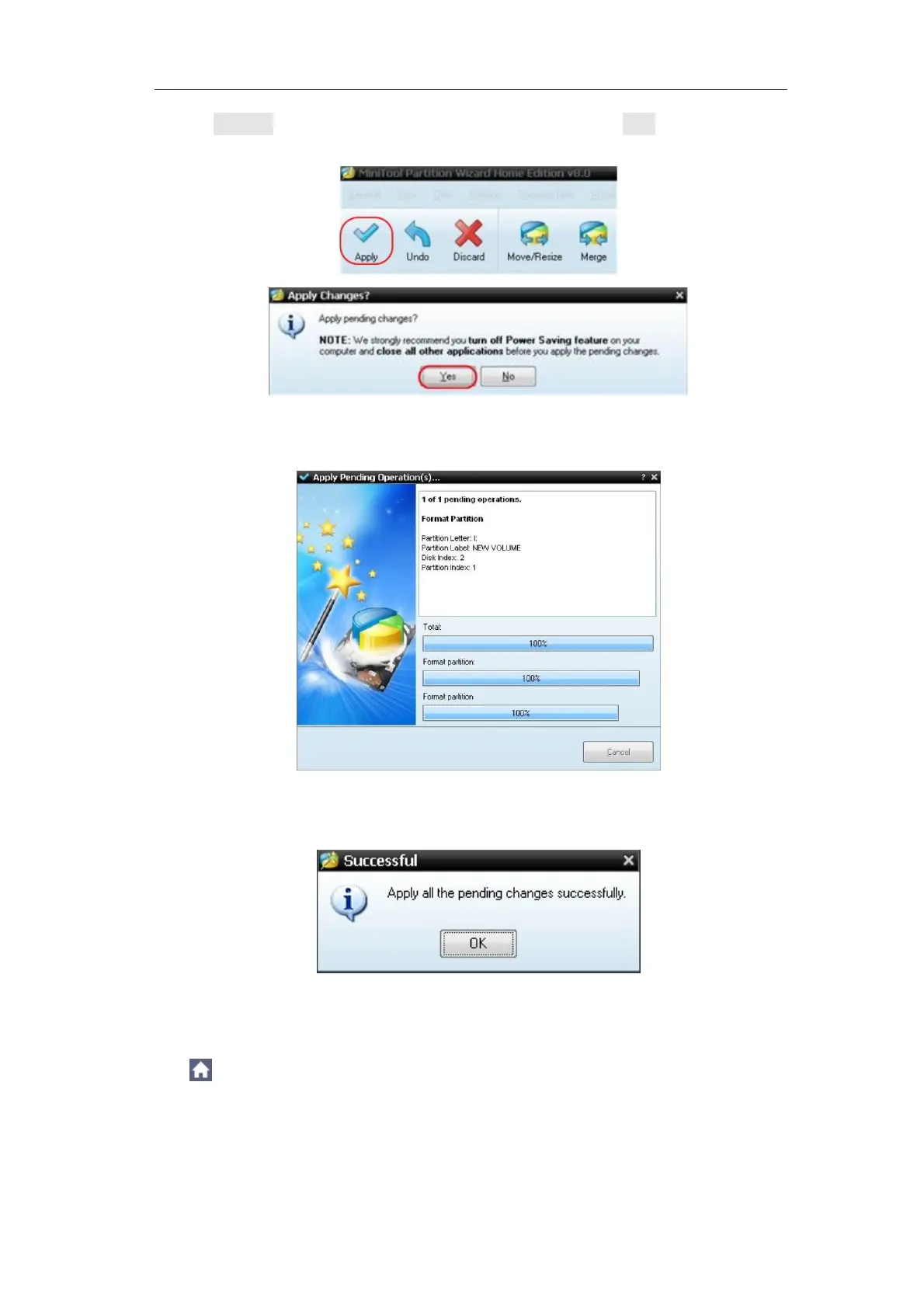

6. Click Apply at the top left of the menu. Then click Yes on the pop-up
warning to begin formatting.
Figure 4-14: Apply setting
7. Formatting process
Figure 4-15: Format process
8. Format the USB disk successfully
Figure 4-16: Format successfully
Record/Playback Waveforms
Click to call up the menu panel. Click the Save softkey on panel. Select
Type in the bottom menu, select Record in the left menu.
Wave Record function can record the input current wave. You can set the
interval between recorded frames in the range of 10 ms - 10 s. The max frame
number reaches 1000, and you can get better analysis effect with playback
To Next Page
