Connect through a router
(1) Connection. Use a LAN cable to connect the oscilloscope with a router, the
LAN port of the oscilloscope is in the right panel; the computer should be
connected to the router too.
(2) Set the network parameters of the computer. Since the oscilloscope can
not support obtaining an IP address automatically, you should assign a static
IP address. The Default gateway and Subnet mask should be set according to
the router. Here we set the IP address to 192.168.1.71, Subnet mask is
255.255.255.0, Default gateway is 192.168.1.1.

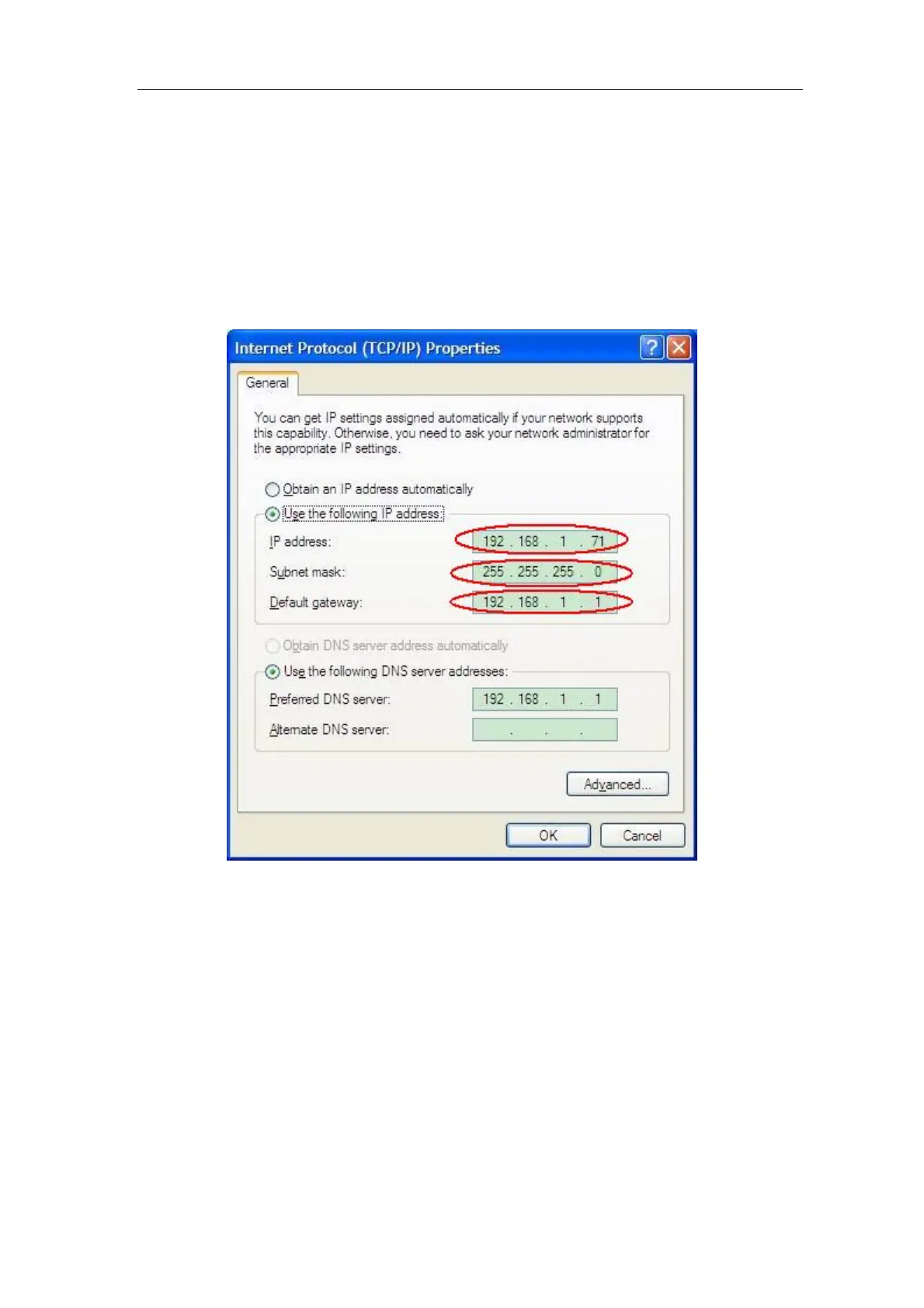

Figure 5-5 Set the network parameters of the computer
(3) Set the network parameters of the Oscilloscope Software. Run the
software on the computer; choose the "Ports-settings" of the
"Communications" menu item. Set "Connect using" to LAN. About the IP, the
first three bytes is same as the IP in the step (2), the last byte should be
different. Here, we set it to 192.168.1.72. The range of the port value is 0 -
4000, but the port which under 2000 is always used, so it is suggested to set it
to the value above 2000. Here, we set it to 3000.
