How to Implement the Function Inspection
Make a fast function check to verify the normal operation of the instrument,
according to the following steps:
1. Long press the
button on the top right of the instrument.
The instrument carries out all self-check items and shows the Boot Logo. Push
the Default button on the front panel. The default attenuation coefficient set
value of the probe on the menu is 10X.
2. Set the Switch in the Oscilloscope Probe as 10X and Connect the
Oscilloscope with CH1 Channel.
Align the slot in the probe with the plug in the CH1 connector BNC, and then
tighten the probe with rotating it to the right side.
Connect the probe tip and the ground clamp to the connector of the probe
compensator.
3. Push the Autoset button on the front panel.
The square wave of 1 kHz frequency and 5V peak-peak value will be displayed
in several seconds (see Figure 3-5).

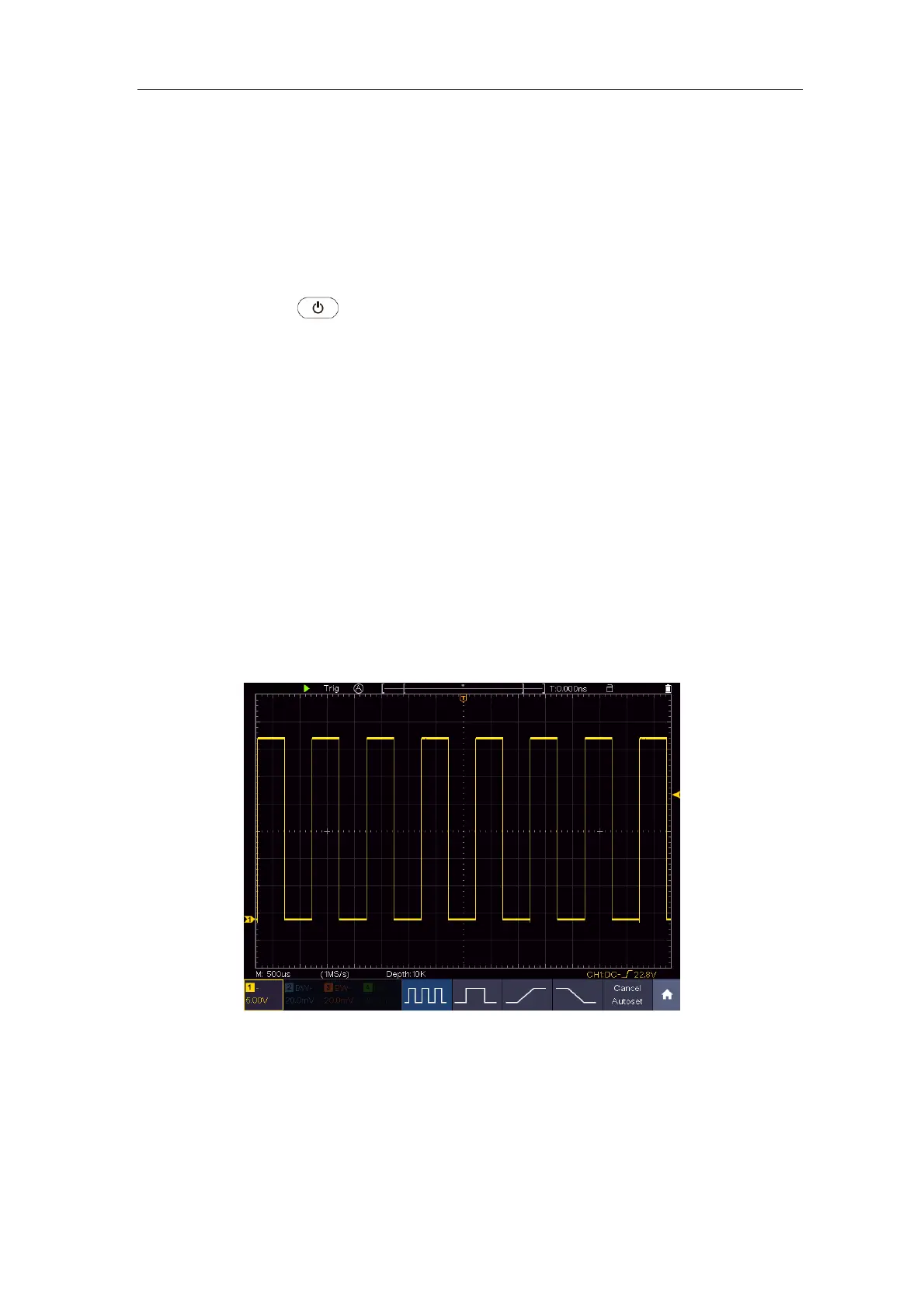

Figure 3-5 Auto set
Check CH2, CH3 and CH4 by repeating Step 2 and Step 3.
How to Implement the Probe Compensation
When connect the probe with any input channel for the first time, make this
