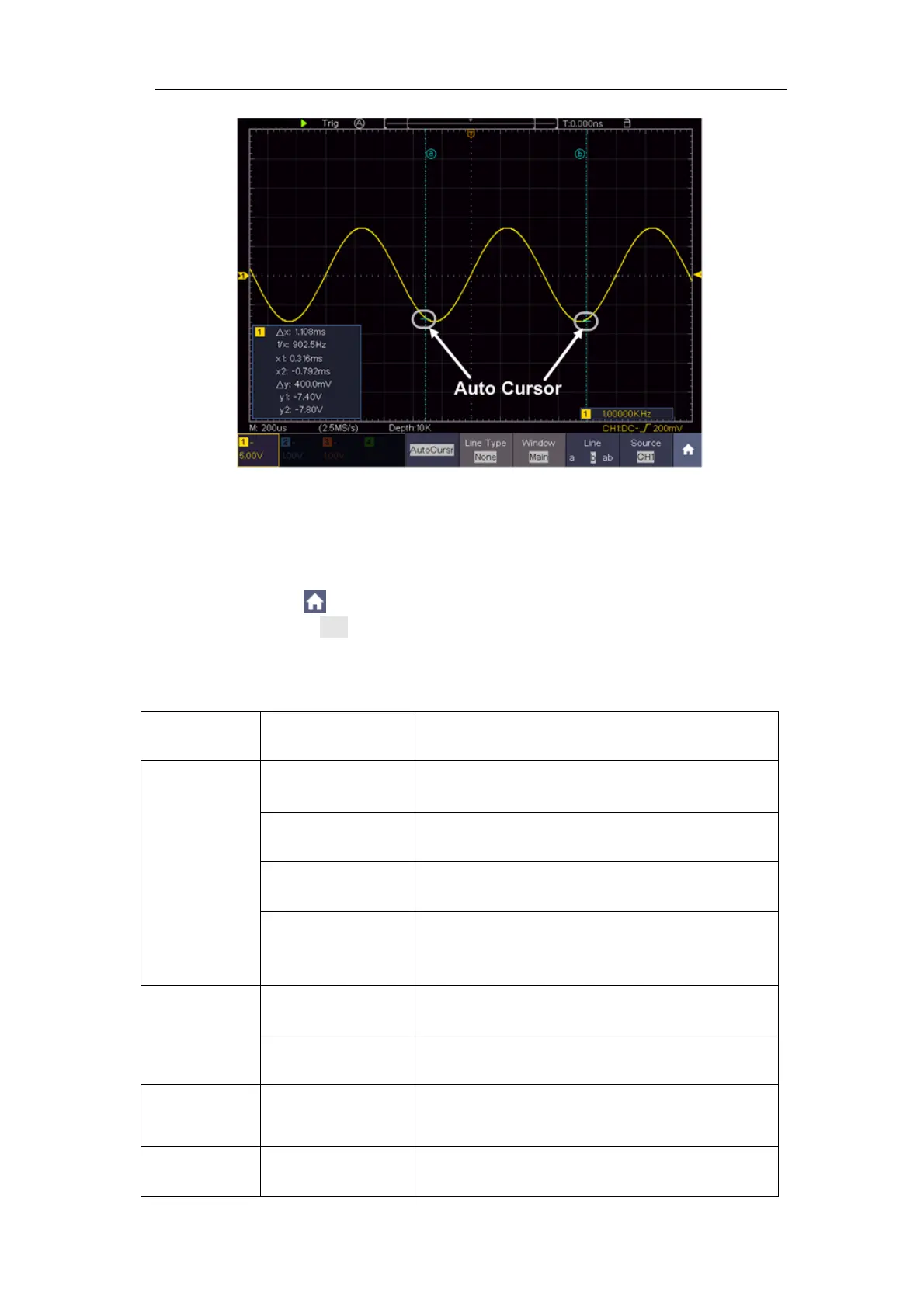

Figure 4-22 Auto Cursor
The Cursor Measurement for FFT mode
In FFT mode, click to call up the menu panel. Click the Cursor softkey on
panel to switch to the ON state and display the cursor menu.
The description of the cursor menu in FFT mode is shown as the following
table:
Function
Menu
Setting
Description
Type
Vamp
(or Phase)
Display the Vamp (or Phase)
measurement cursor and menu.
Freq
Display the Freq measurement cursor and
menu.
Freq&Vamp
(or Freq&Phase)
Display the corresponding measurement
cursor and menu.
AutoCursr
The horizontal cursors are set as the
intersections of the vertical cursors and
the waveform
Line Type
(Freq&Vamp
or
Freq&Phase
type)
Freq
Makes the vertical cursors active.
Vamp
(or Phase)
Makes the horizontal cursors active.
Window
(Wave zoom
mode)
Main
Extension
Measure in the main window.
Measure in the FFT extension window.
Source
Math FFT
Display the channel to which the cursor
measurement will be applied.
