User Manual
4. Press the H5 button and press F1 button to select Internal.
5. Press the H4 button to save the waveform.
6. Recalling: Press the H3 button, and press the F1, turn the M rotary control to select 1
as object address. Press F2 button to set Show as ON. The waveform stored in the
address will be shown, the address number and relevant information will be displayed
at the top left of the screen.

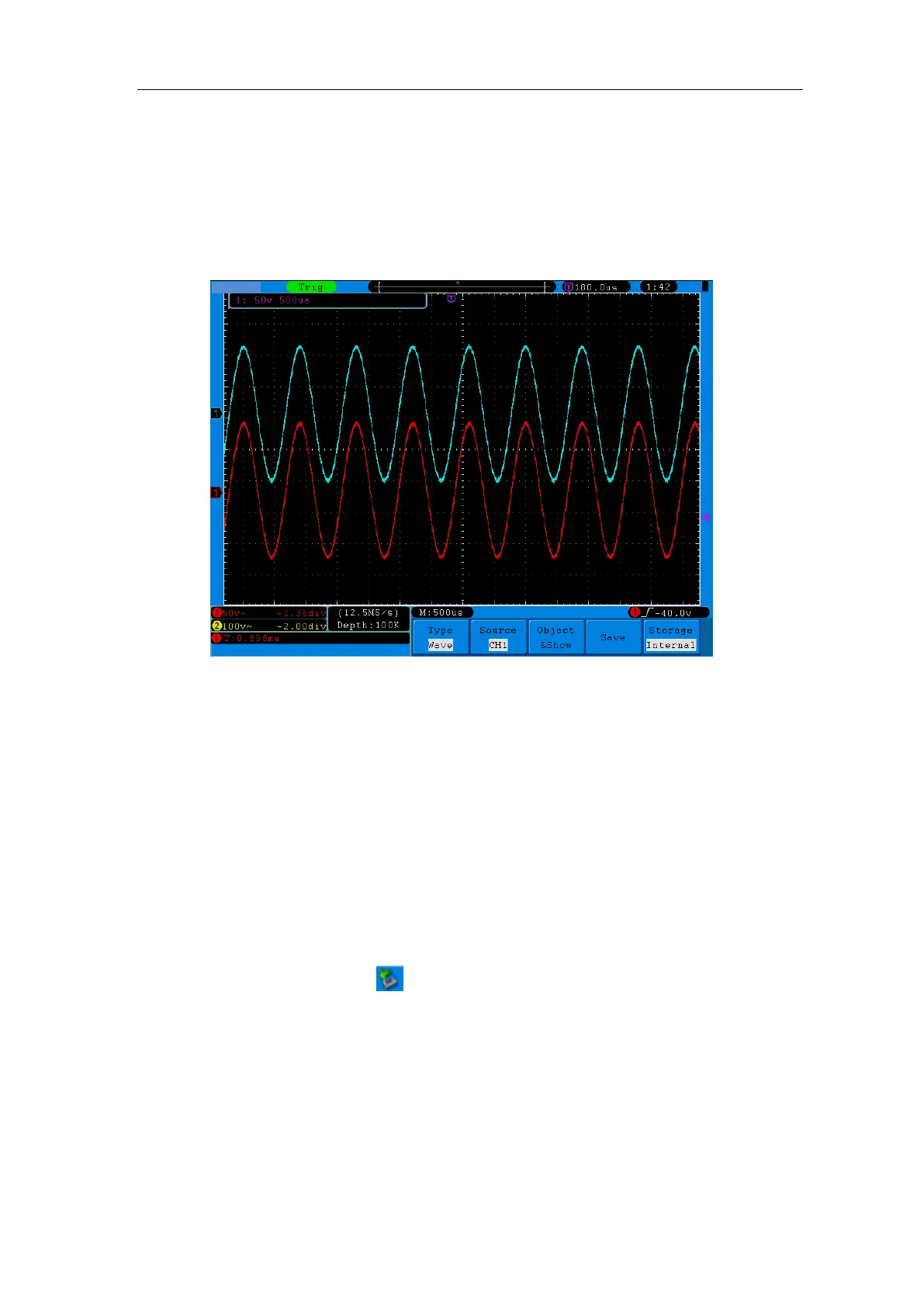

Figure 5-36 Wave Saving
Tip:
Whatever the Type of save menu is set, you can save the waveform by just pressing the
Copy panel button in any user interface. If the Storage of the save menu is set as
"External", you should install the USB disk. Please refer to the contents below to install
the USB disk and name the file to be saved.
Save the current screen image:
The screen image can only be stored in USB disk, so you should connect a USB disk with
the instrument.
1. Install the USB disk: Insert the USB disk into the "1. USB Host port" of "Figure 4-2
Right side panel". If an icon appears on the top right of the screen, the USB disk
is installed successfully. If the USB disk cannot be recognized, format the USB disk
according to the methods in "USB disk Requirements" on P52.
2. After the USB disk is installed, press the Save panel button, the save menu is
displayed at the bottom of the screen.
3. Press the H1 button, the Type menu will display at the left of screen, turn the M
rotary control to choose Image for Type.
4. Press the H4 button, the input keyboard used to edit the file name will pop up. The
To Next Page
