59
contains two kinds: Internal and External.
When the storage medium is Internal, Wave Record contains four modes: OFF, Record,
Playback and Storage.
When storage medium is External（See P62 Wave Record Menu of External Storage）,
Wave Record contains two modes: OFF, Record.
Record: To record wave according to the interval until it reaches the end frame set.
Record menu (Internal Storage) shows as follows:
Menu
Setting
Instruction
Mode
OFF
Record
Playback
Storage
Close wave record function
Set record menu
Set playback menu
Set storage menu
Record mode
FrameSet
End frame
Turn the M rotary control to select the number of
frames to record (1 - 1000)
Interval
Turn the M rotary control to select the interval
between recorded frames (1 ms - 1000 s)
Refresh
ON
OFF
Refresh wave during recording
Stop refreshing
Operate
Play
Stop
Begin to record
Stop recording
Note:
Both of the waveforms of Channel 1 and Channel 2 will be recorded. If a Channel is
turned off while recording, the waveform of the channel is invalid in the playback mode.

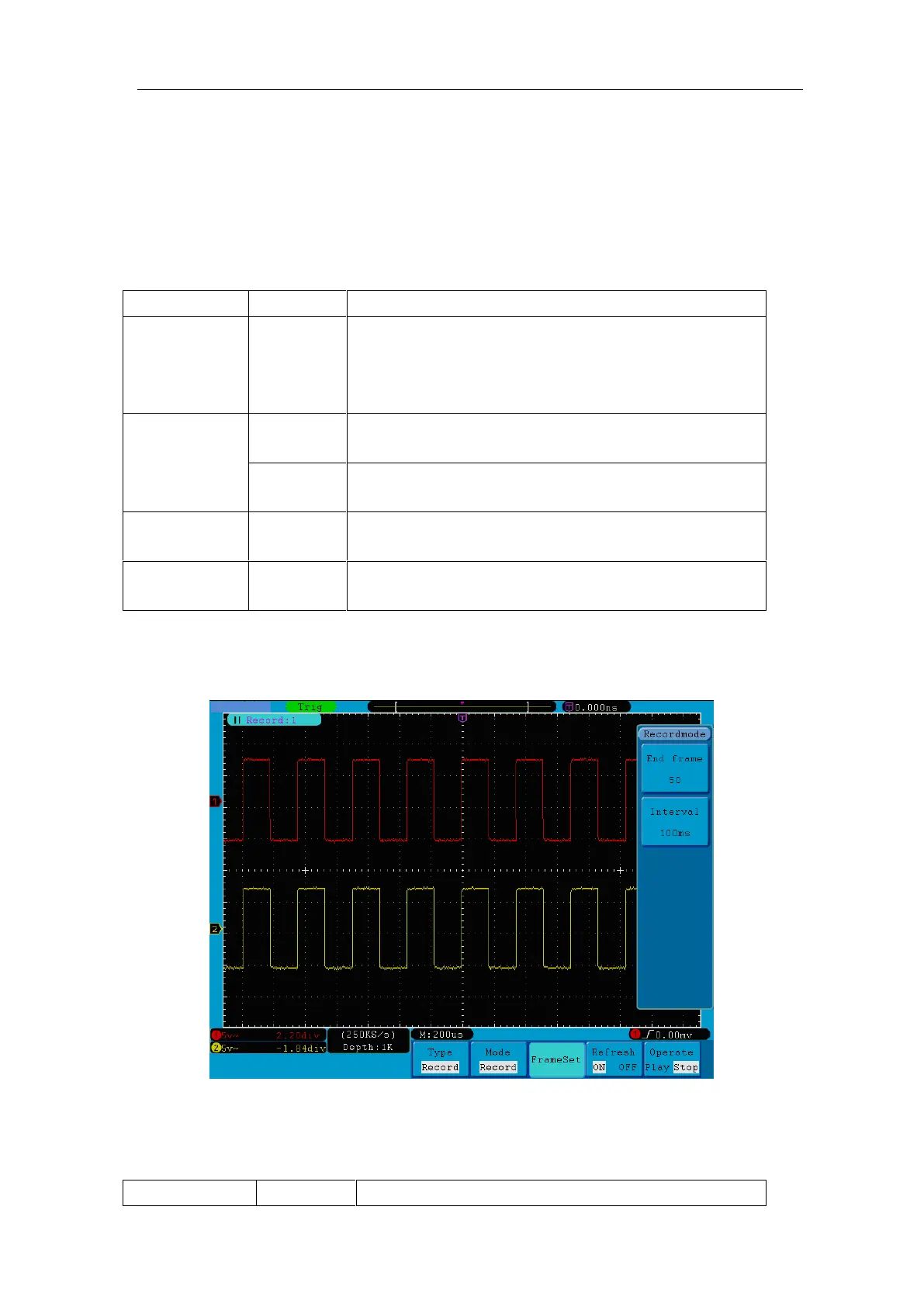

Figure 5-52 Wave Record
Playback: Play back the wave recorded or saved.
Playback menu shows as follows:
Menu
Setting
Instruction
