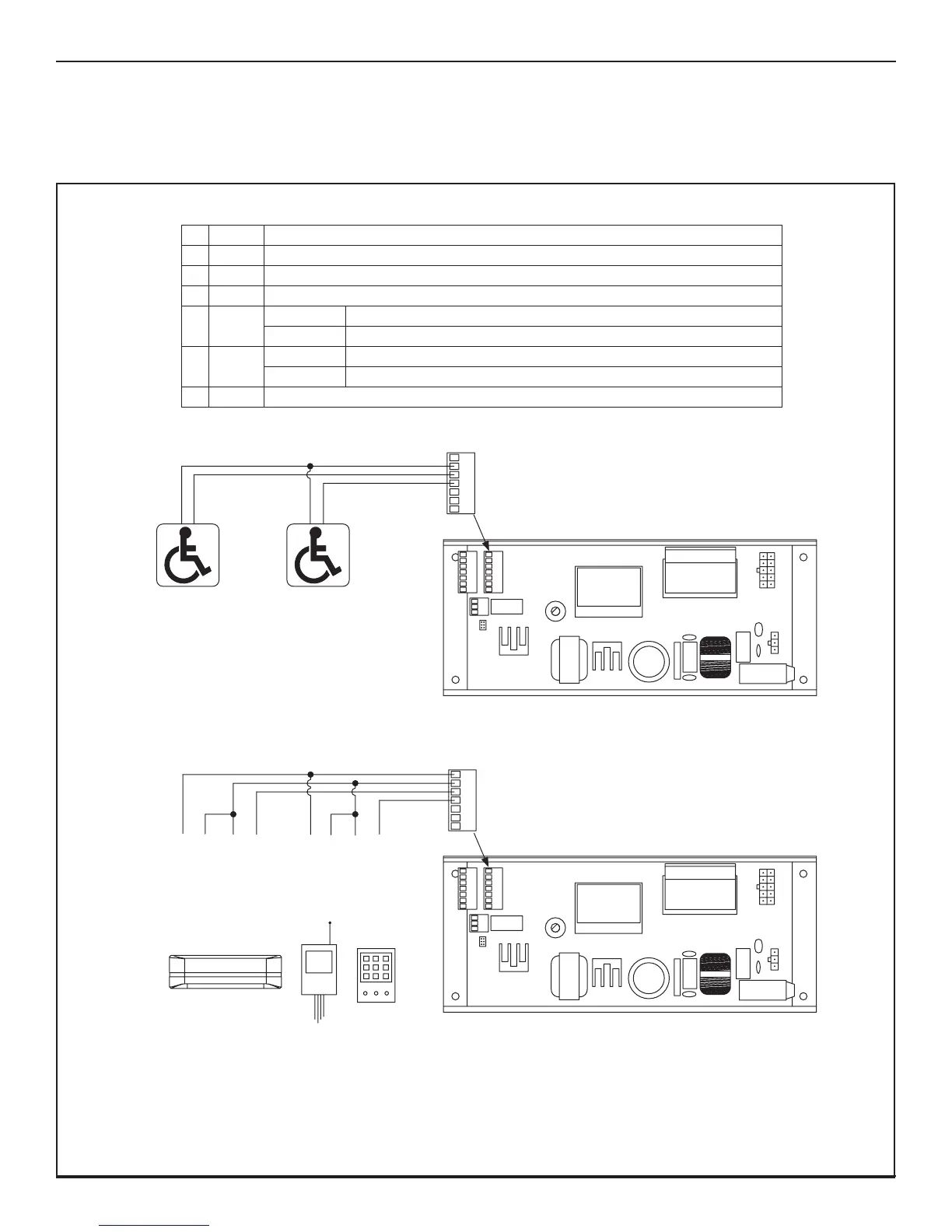

CHAPTER 12: SWING DOOR WIRING DIAGRAMS
SECTION 12.1: Acvaon
DN 1329
1 12VDC +12VDC
2 GND Common for 12V and Signals
361Interior Ac va on
462Exterior Ac va on/Programmable Input
56BSwing Door Con nuous Safety (door mounted, swing side Safety Sensor)
Slide Door Holding Beam
6SWL Swing Door Safety with Lockout (overhead, swing side safety sensor)
Slide Door Sidelite Sensor
7 Out1 Programmable Output
5 67
2
8
12
14
11
13
9
10
1 2 3 45 67
3
4
1 2 3 4
5 671 2 3 4
2
3
4
1
N.O.
COMN.O.
COM
Exterior Push-Plate
Interior Push-Plate
ALL DEVICES MUST BE
N.O. DRY CONTACT
8
12
14
11
13
9
10
1 2 3 45 67
N.O.COM
Interior Ac va on Exterior Ac va on
PWR–PWR+ N.O.COMPWR–PWR+
ALL DEVICES MUST BE
N.O. DRY CONTACT
POWERED ACTIVATION DEVICES
SENSOR, CARD READER, RADIO RECEIVER, ETC.
!!!WARNING!!!
TOTAL POWER OF ALL SENSORS AND POWERED
ACTIVATION DEVICES MUST NOT EXCEED 750 MA
Non-Powered Ac va on Devices
Powered Ac va on Devices
Radio
Receiver
