SECTION 12.12: Other
DN 1333

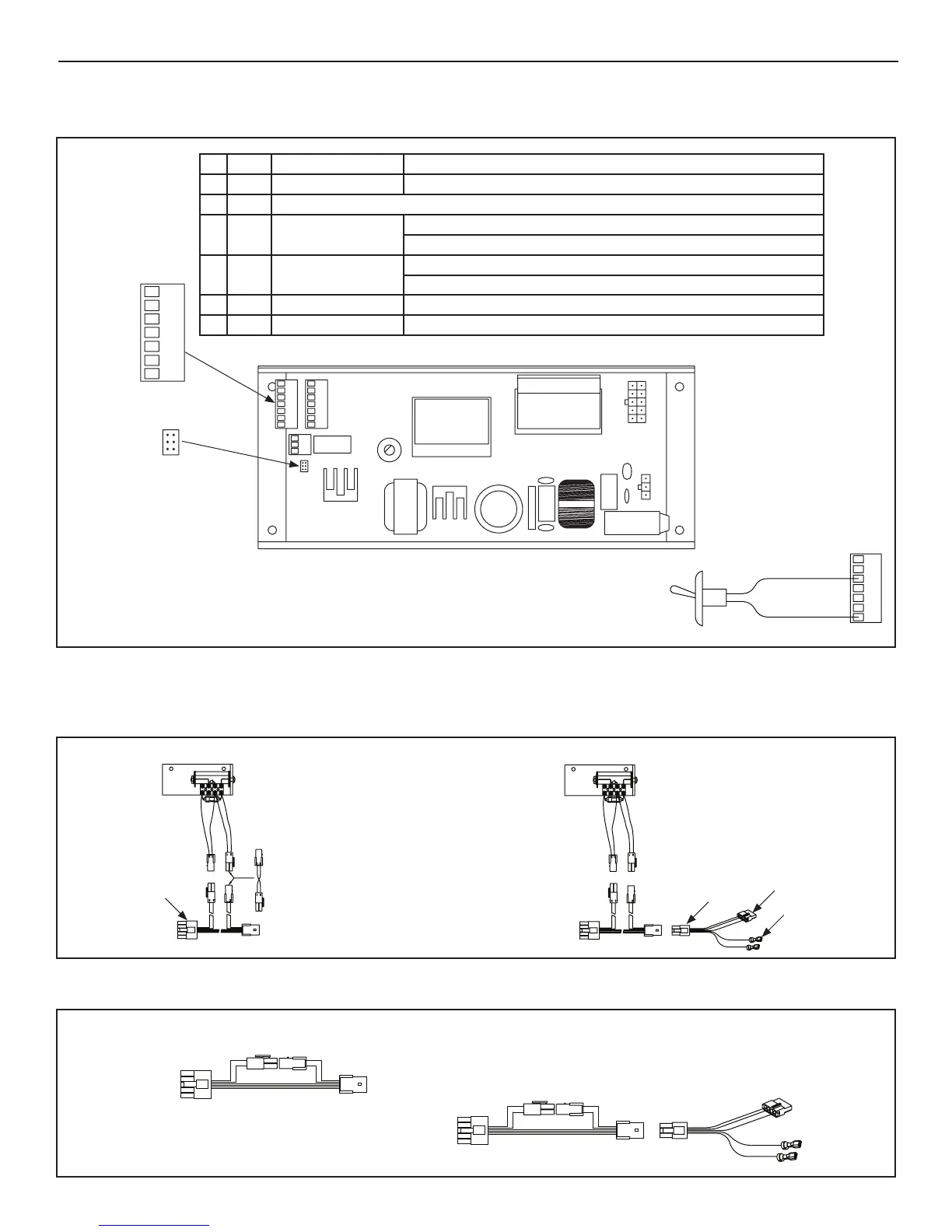

EXAMPLE OF A
PROGRAMMABLE INPUT
8BABreakout Used mainly for sliding door, can be used for ON/OFF with Swing Doors.
9SQ Sequen al Ac va on Signal to Open, signal to Close.
10 HProgrammable Input
11 M0 Mode 0 When grounded, puts door into ONE WAY Mode.
When grounded with M1, puts door into HOLD OPEN Mode.
12 M1 Mode 1 When grounded, puts door into NIGHT Mode.
When grounded with M0, puts door into HOLD OPEN Mode
13 Out2 Aux. Output 2Programmable output, closes to GND
14 GND Ground Common for all above signals.
Example: A Switch being used to turn
ON/OFF Power Close and Hold Close.
Programmable Terminal 10, (Input H)
would be set to SPRING CLOSE ONLY.
12891011
13
14
51
2
34 67
128910 11 13 14
Used to connect to a second
OPUS Control for Sim Pair,
Astragal, and Sequencing
128
9
1011
13
14
10
14
SECTION 12.13: Motor Wiring
12.12.1 GT300/400/500/600/1400
DN 1315
ENCODER MOTOR WIRING
NONENCODER WIRING
Handing Harness
(Right Hand Units)
To Opus ControlTo Motor
To Motor
Non-Encoder
Adapter Harness
To Opus Control
Motor
Harness
To Door
Posi on Switches
Brake Module
12.12.2 GT710/8710
DN 1327
ENCODER MOTOR WIRING
NONENCODER WIRING
Non-Encoder Adapter Harness
To Motor
To Motor
To Opus Control
2
1
1
2
To Door Posi on
Switches
Motor Harness
2
1
1
2
Motor Fuse
To Opus Control
Motor Harness
Motor Fuse
