Nabco Opus Control User Manual

34 of 35
Opus Control Wiring and Programming Installaon Manual www.NabcoEntrances.com
P/N C-00139 Rev 3-9-18
Side Load Unit
Item Part Finish/Sizes/Notes Descripon
1 T-00365 WASHER:5/32IDx3/4ODx.020THK:POLYETHYLE
2 M-01546 “CONTROLLER,OPUS”
3 V-00552 Used on Opus Control FUSE;5A;GMA;5X20mm
4 T-00335 SHCS:10-24x0.313L.
5 A-01097 Used on GT710/8710 only CONTROLLER,710,OPUS
6 A-01003 Not used on GT710/8710 “BRAKE MODULE,OPUS”
7 A-00453 Used on Brake Module FUSE,3AMP,W/HEAT SHRINK
8 A-00888 CONTROLLER;OPUS W-CHASSIS & BRAKE
9 M-01072 HARNESS,POWER,MAGNUM BOARD
10 V-00713 Used on A-01249 FUSE,2 AMP,5X20MM,250V,FAST ACTING
11 A-01249 Used on GT710/8710 only HARNESS,MOTOR,OPUS,710
12 A-01002 Retrot Kits only “HARNESS,ADAPTER,NON-ENCOD,OPUS CONTROL
13 A-01000 GT300/400/500/600 only “HARNESS,MOTOR,OPUS CONTROL
14 T-00251 Sim Pair Only WIRE,20 AWG,BLUE
15 M-01680 Sim Pair Only “HARNESS,OPUS CONTROL,SIM PAIR”
16 A-01001 Not used on GT710/8710 “HARNESS,HANDING,NGT-10”
17 V-00098 SADDLE, WIRE
18 V-00753 TERMINAL BLOCK (1-7)
19 V-00891 TERMINAL BLOCK (8-14)
DN 1321

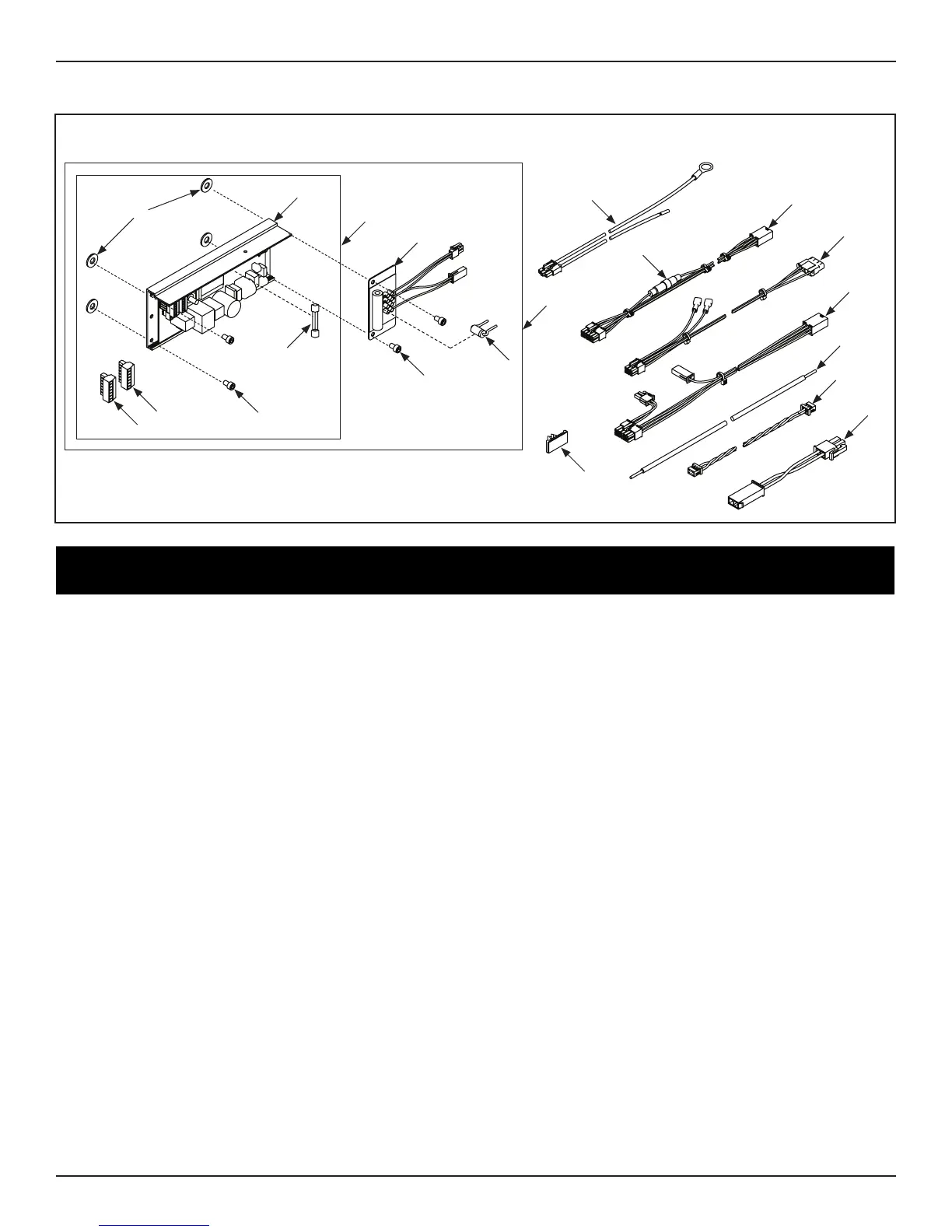

SERVICE PARTS: OPUS SIDE LOAD UNITS
18
19
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
