FAN POWERED TERMINAL UNIT WITH
EPIC ECM MOTOR
STEALTH • SERIES FLOW
CONSTANT OR VARIABLE VOLUME
MODELS: 35SST, 35SWST AND 35SEST • UNIT SIZE 7
FAN
MULTI-POINT
FLOW SENSOR
1" (25)
DH
DW
5 1/2"
(140)
H
2
52"
(1321)
FAN
13 1/4"
(337)
5"
DIA. =
NOMINAL - 1/8" (3)
84"
(2134)
7 3/4"
(197)
IW
IH
16 1/4" (413)
57 1/4" (1454)
32 1/4"
(819)
42"
(1067)
16"
(406)
PRIMARY
INDUCED
AIR
INDUCED
AIR
PRIMARY
AIR
14" (356)
DRIVESHAFT
AIR
(127)
H -
1" (25)
HINGED FAN
CONTROLS
ENCLOSURE
OPTIONAL INDUCED AIR FILTER
11"
(279)
OPTIONAL
PRIMARY
AIR VALVE
CONTROLS
ENCLOSURE
5 3/4"
(146)
14" (356)
15"
(381)
18"
(457)
OPTIONAL 90° FN2
CONTROLS ENCLOSURE
6 3/4"
(171)
HINGED
FAN CONTROLS
ENCLOSURE

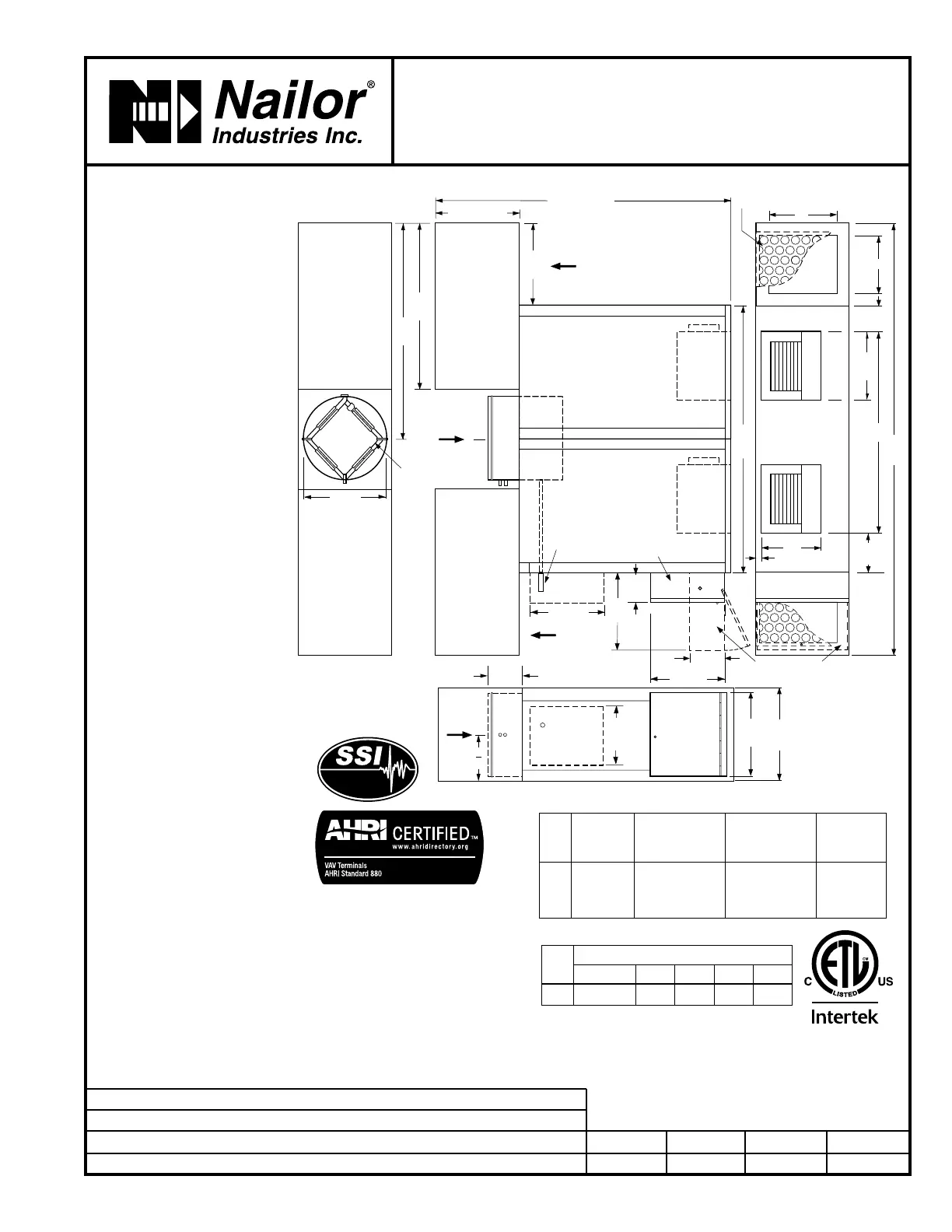

Model 35SSST • Basic Unit
Dimensional Data
Unit
Size
Inlet
Size
Induced Air
Inlet
IW x IH
Outlet
Discharge
DW x DH
Filter
Size
7
14, 16
(356, 406)
11 1/4 x 13 1/4
(286 x 337)
Qty. of 2
39 1/4 x 11 1/2
(997 x 292)
14 x 14
(356 x 356)
Qty. of 2
Electrical Data
Unit
Size
EPIC ECM Motor FLA
Motor HP 120V 208V 240V 277V
7
*
15.9 10.5 9.9 10.0
*
The ECM is a variable horsepower motor.
Refer to Selectworks schedule for actual power
consumption.
FLA = Full load amperage. All motors are single
phase/60 Hz.
DESCRIPTION:
• 18 ga. (1.31) galvanized steel
channel frame with 20 ga.
(1.00) casing components.
• 16 ga. (1.61) galvanized steel
inclined opposed blade damper.
45° rotation. CW to close.
• Stealth tuned inlet attenuators.
Shipped loose for field
mounting.
• Ultra-high efficiency ECM
fan motor. EPIC fan volume
controller.
• Multi-point averaging
Diamond Flow sensor. Supplied
with balancing tees.
• Universal access. Panels on
all 4 sides.
• 3/4” (19) dual density
insulation, exposed edges
coated to prevent air erosion.
Meets requirements of NFPA
90A and UL 181.
• Single point electrical and/or
pneumatic main air connection.
• Discharge opening for flanged
duct connection.
• Full primary air valve low
voltage NEMA 1 type enclosure
for factory mounted DDC and
analog electronic controls.
• Controls mounted as
standard on RH side as shown.
Terminals ordered with LH
controls (optional) are inverted
and discharge duct hanging
elevation will therefore change.
OPTIONS:
Digital Controls:
q Factory mounted (supplied by
others)
q Field mounted (supplied by
others)
q Nailor EZvav. See separate
submittal.
Liner:
q Steri-liner
q Steri-liner + Perforated metal
q Fiber-free
q Perforated metal
q Solid metal
q 1" (25) fiberglass
q Low temperature construction
Other:
q Left-hand controls location
q Toggle disconnect switch
q Fan unit fusing
q 24/24V Isolation
transformer
q Cross Flow Sensor
q 'Q' Option – Induced Air
Inlet Attenuator
q Top entry induced air inlet
q 1" (25) Throwaway filter
q 2" (51) MERV 8 filter
q Hanger brackets.
q 1/4-turn fasteners (access panel)
q FN2 90° Line Voltage Enclosure
q FN3 Remote Line Voltage Controls
Enclosure (See submittal FN3)
q Dust tight enclosure seal
q Remote user disconnect
Seismic Certification:
q Seismic Source International
(Standard)
q HCAI (formerly OSHPD, California)
q Special Features: ____________ .
Listed
