FAN POWERED TERMINAL UNIT W/ EPIC ECM MOTOR
STEALTH XC • SERIES FLOW • SUPER QUIET
EXPOSED CEILING APPLICATIONS
VARIABLE VOLUME FAN OPERATION
MODELS: 35SXC, 35SWXC & 35SEXC • UNIT SIZES 1, 3 & 5

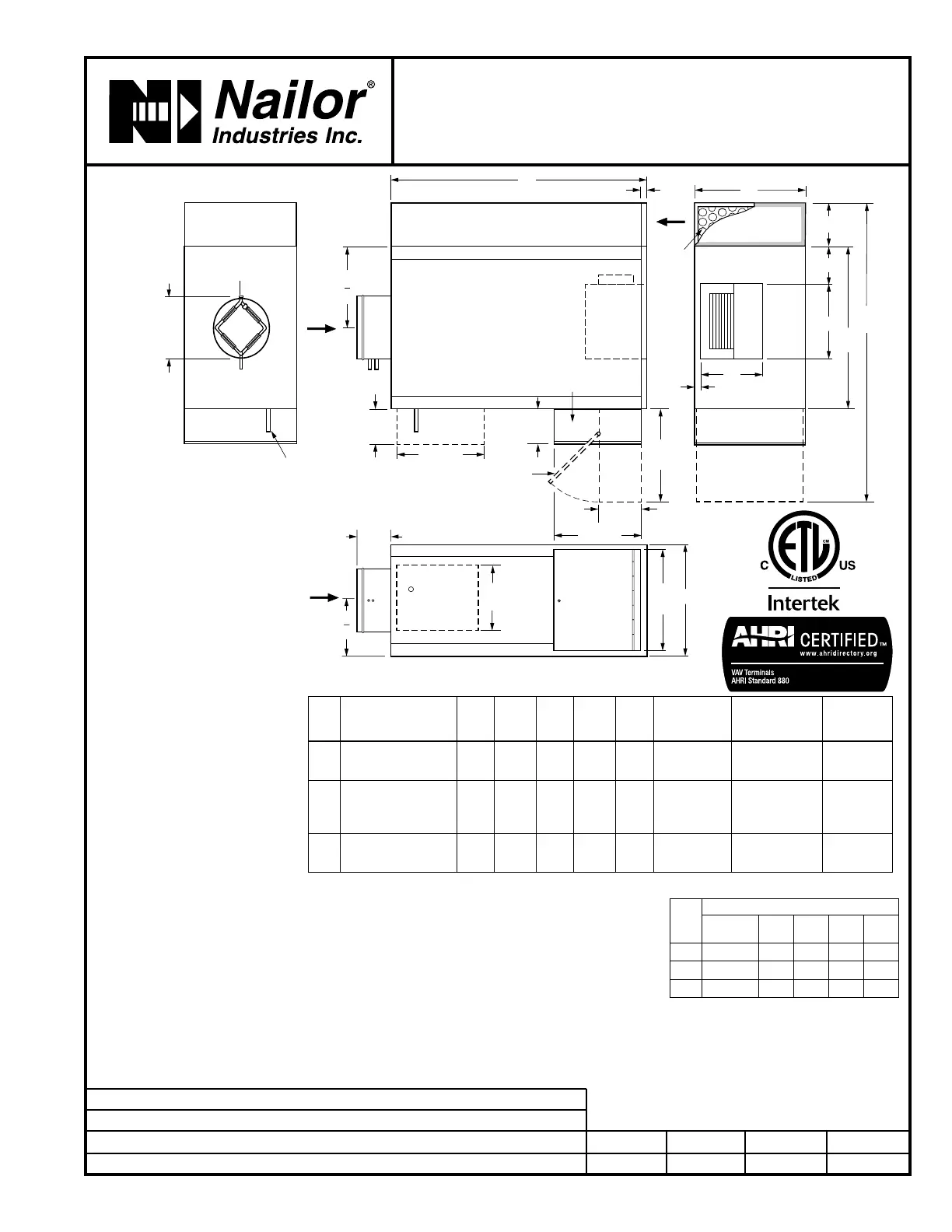

W
2
MULTI-POINT
FLOW SENSOR
DRIVESHAFT
PRIMARY
PRIMARY
AIR
DIA. =
NOM.
1/8" (3)
14" (356)
5 1/2"
(140)
H
2
H -
1" (25)
H
HINGED FAN
CONTROLS
ENCLOSURE
OPTIONAL
PRIMARY
AIR VALVE
CONTROLS
ENCLOSURE
11"
(279)
L
FAN
1" (25)
B
DW
DH
IW
W
OPTIONAL
INDUCED
AIR FILTER
1" (25)
AIR
INDUCED
AIR
IH
5 3/4"
(146)
14" (356)
HINGED FAN
CONTROLS ENCLOSURE
6 3/4"
(171)
W2
5 3/4"
(146)
15"
(381)
OPTIONAL
90° FN2
CONTROLS
ENCLOSURE
Dimensional Data
STANDARD FEATURES:
18 ga. (1.31) galvanized steel
channel frame with 20 ga. (1.00)
casing components.
16 ga. (1.61) galvanized steel
inclined opposed blade damper.
45° rotation. CW to close.
Multi-point averaging Diamond
Flow sensor.
Supplied with
balancing tees.
Full size access panels on 3
sides.
Steri-liner insulation. 13/16"
(21) thick, 4 lb./sq. ft. (64 kg/m
3
)
density rigid fiberglass with alum.
FSK facing. Meets requirements
of NFPA 90A and UL 181.
Stealth XC tuned inlet silencer.
Perforated galvanized steel liner
with fiberglass acoustic media.
Single point electrical
connection.
Discharge opening for flanged
duct connection.
Full primary air valve low voltage
NEMA 1 type enclosure for factory
mounted DDC controls.
Controls mounted as standard
on RH side as shown. Terminals
ordered with LH controls (optional)
are inverted and discharge duct
hanging elevation will therefore
change.
Ultra-high efficiency ECM
fan motor. EPIC fan volume
controller.
OPTIONS:
Digital Controls:
q Factory mounted (supplied by
others)
q Field mounted (supplied by
others)
Model 35SXC • Basic Unit
Electrical Data
Unit
Size
EPIC ECM Motor FLA
Motor
HP
120V 208V 240V 277V
1
*
2.1 1.4 1.3 1.2
3
*
4.8 3.4 3.1 3.0
5
*
10.5 6.8 6.4 6.2
*
The ECM is a variable horsepower motor.
Refer to Selectworks schedule for actual
power consumption.
FLA = Full load amperage. All motors are
single phase/60 Hz.
Unit
Size
Inlet
Size
W W2 H L B
Induced Air
Inlet
IW x IH
Outlet
Discharge
DW x DH
Filter
Size
1
4, 5, 6, 8
(102, 127, 152, 203)
20
(508)
41
(1041)
14
(356)
36
(914)
6
(152)
6 x 14
(152 x 356)
8 1/8 x 4 1/4
(206 x 108)
6 x 14
(152 x 356)
3
6, 8, 10, 12
(125, 203, 254, 305)
26
(660)
47
(1194)
18
(457)
41
(1041)
7
(178)
6 x 18
(152 x 457)
9 1/8 x 10 1/2
(232 x 267)
6 x 18
(152 x 457)
5
10, 12, 14
(254, 305, 356)
26
(660)
53
(1346)
20
(508)
55
(1397)
7
(178)
12 x 20
(305 x 508)
13 1/8 x 15 5/8
(333 x 397)
12 x 20
(305 x 508)
Terminal Liner:
q Steri-liner
q Steri-liner + Perforated metal
Silencer Liner:
q Fiberglass acoustic media
q Steri-Liner/Polymer film
Other:
q Left-hand controls location
q Toggle disconnect switch
q Fan unit fusing
q 24/24V Isolation transformer
q Cross Flow Sensor
q 1" (25) Throwaway filter
q 2" (51) Filter rack only
q Hanger brackets
q 1/4-turn fasteners (access
panel)
q FN2 90° Line Voltage
Enclosure
q FN3 Remote Line Voltage
Controls Enclosure
(See submittal FN3)
q Du
st tight enclosure seal
q Remote user disconnect
q Special features:
____________.
